Navico XSONIC B150M 12° TH 9-Pin Connector w/10M Cable
Free Ground Shipping (2-6 Days Delivery Time)
It will be shipped by UPS Ground.
Shipping (3PM)
Within 30 days
Navico XSONIC B150M 12° TH 9-Pin Connector w/10M Cable Product Description

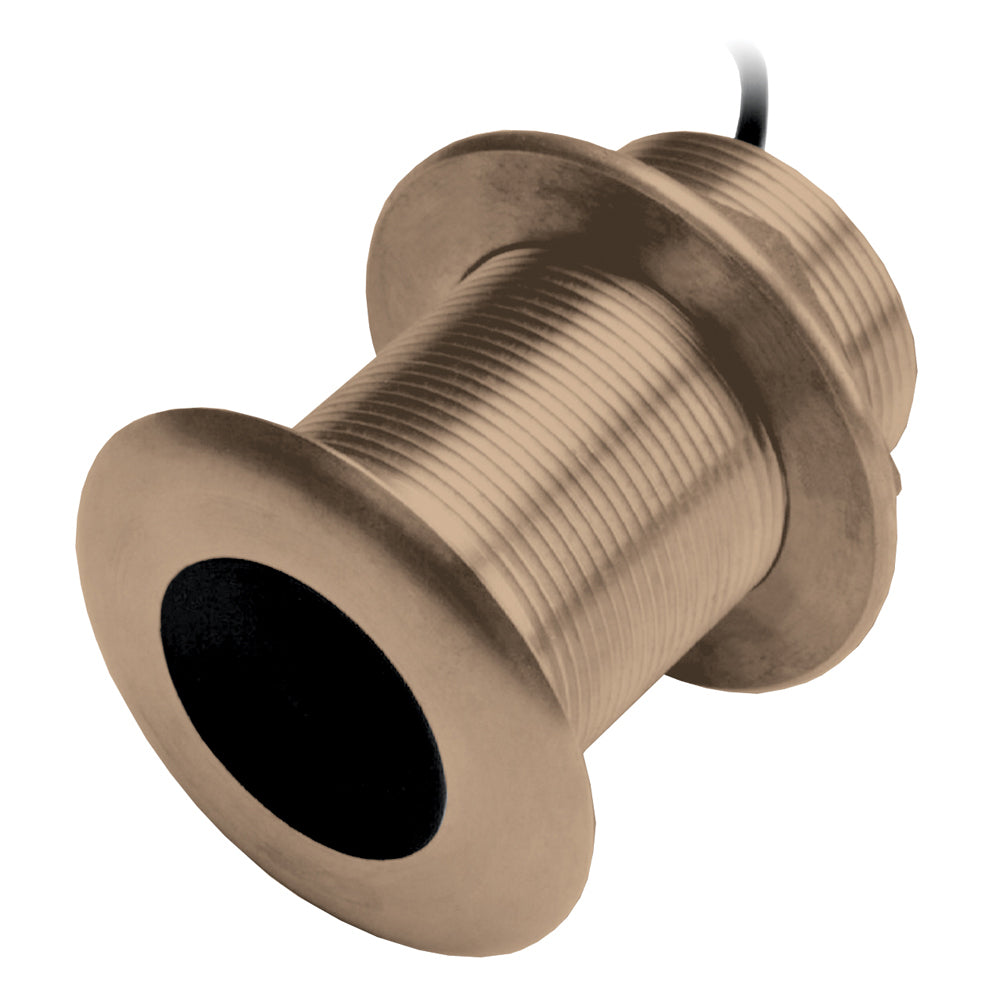

Discover the power of precise underwater detection with the XSONIC B150M, a bronze thru-hull transducer engineered for anglers chasing fish in coastal waters, inshore spots, and even freshwater haunts. This medium-frequency CHIRP model strikes the perfect balance, delivering deep penetration without sacrificing sharp target separation. Whether you're tracking structure-hugging bass or suspended schools in murky bays, it paints a clearer picture of what's below, helping you hook more fish on every outing.
Why Choose the B150M for Your Next Fishing Adventure?
Unlike traditional fixed-frequency sonars that can miss fine details, this transducer sweeps across a wide bandwidth to reveal bait balls, bottom contours, and individual fish with stunning clarity. Its 12-degree tilted element aligns seamlessly with your hull's deadrise, ensuring optimal signal transmission even at speed. Boat owners rave about its ability to maintain solid bottom lock while planing, making it a game-changer for trolling or drifting.
- Excels in shallow to medium depths, spotting fish near wrecks, reefs, or weed lines
- Provides wider coverage with beam widths tapering from 26 degrees at higher frequencies to 17 degrees at lower ones
- Fast-response temperature sensor helps you monitor thermoclines and locate active water columns
- Low-profile bronze housing withstands rough conditions and resists marine growth
- Boosts confidence with reliable performance across fiberglass, wood, or metal hulls up to 8 meters
Deep Dive into Performance Specs
Crafted for compatibility with modern multifunction displays, this 9-pin connector model packs 300 watts of power into a compact design. Operating in the 95-155 kHz medium CHIRP range, it covers up to 2500 feet depending on water clarity and targets—ideal for everything from offshore ledges to inland lakes. The included 33-foot cable gives you flexible routing options during installation, minimizing signal loss.
| Attribute | Details |
|---|---|
| Mount Type | Thru-Hull with 12° Tilt |
| Frequency | 95-155 kHz (Medium CHIRP) |
| Power | 300W |
| Max Depth | Up to 2500 ft* |
| Cable | 10m (33 ft) |
| Sensors | Depth & Temperature |
*Performance varies with conditions and fish size.
Pro Tips for Seamless Installation and Maintenance
Installing a thru-hull like the B150M doesn't have to be a hassle. Start by selecting a spot forward of the prop and keel, at least 1/3 of the hull length from the stern for clean water flow. Fair the housing with marine sealant for a hydrodynamic fit, and route the cable away from engines or bilge pumps to avoid interference. Once in, calibrate your display for CHIRP mode to unlock full potential.
- Clean the hull interior and exterior thoroughly
- Drill a 2-inch hole and bed the transducer in polyurethane sealant
- Secure with the included nut, avoiding over-tightening
- Test at dockside before heading out
- Regularly inspect for fouling and clean with a soft brush
For best results in saltwater, apply anti-fouling paint around the exterior, leaving the active face bare.
Real-World Wins: How Anglers Maximize the B150M
Freshwater pros use its crisp separation to pick out crappie near docks or walleye off points. Coastal captains rely on it for flounder in sandy bottoms or redfish ambushing shrimp. Pair it with high-definition sonar overlays to create custom contour maps, turning your boat into a fish-finding machine. Users often note fewer false readings in choppy seas compared to narrower high-frequency options.
Frequently Asked Questions
What frequency range does the XSONIC B150M transducer cover?
It operates in the medium CHIRP range of 95-155 kHz, offering 60 kHz of bandwidth for versatile depth and resolution.
Is the B150M suitable for metal hulls?
Yes, its bronze construction works well on fiberglass, wood, and metal hulls, providing reliable performance across various boat types.
Does this transducer include a water temperature sensor?
Absolutely, it features a fast-response temperature sensor alongside depth capabilities, perfect for tracking water conditions.
What beam widths can I expect from the B150M?
Beam width varies from 26 degrees at 95 kHz to 17 degrees at 155 kHz, giving broader coverage in deeper water and tighter focus in shallows.
How does the 12-degree tilt benefit installation?
The tilt matches common hull deadrise angles, ensuring the ceramic faces straight down for maximum signal strength without additional shimming.
What's the maximum depth rating for this model?
It reliably performs up to 2500 feet in ideal conditions, though actual range depends on water clarity and target strength.
Can the B150M handle higher boat speeds?
Yes, it tracks the bottom effectively at planing speeds, making it great for trolling or searching large areas quickly.
The B150M is a bronze, thru-hull CHIRP transducer, ideal for sport fishing and commercial vessels up to 8 Meter in length. This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.
Simrad 0013921001 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 9 Pin
- Depth: 2500 Feet
- Power Rating: 300 Watt
- Frequency Range: 95-155 kHz Medium Frequency CHIRP Transducer
- Supported Angle: 12 Degree Tilt
- Cable Length: 33 Feet
Simrad 0013921001 Features & Benefits
- Ideal For Inshore Or Coastal Fishing In Shallow To Medium Depths
- CHIRPs From 95 To 155 Kilohertz To Provide 60 Kilohertz Of Total Bandwidth From One Transducer
- Black 9 Pin Connector
- Easy To Install
- Limited 2 Year Warranty
Simrad 0013921001 Warranties
XSONIC B150M 12° TH 9-Pin Connector with 10M Cable
As CHIRP continues to redefine recreational fishing, AIRMAR has expanded the lineup of broadband transducers to satisfy the growing demand for this game changing technology. The B150M economical CHIRP transducers designed for offshore fishing and freshwater anglers. Operating at a frequency range of 95-155 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 2,500 feet*) along with ultra-clear target resolution.
*Depths vary depending on target strength and sea conditions
A tilted element model in the CHIRP Thru-Hull product line, the B150M CHIRPS across the following bandwidth: M Model - Medium Frequency 95-155 kHz
Features:
- Depth and water temperature sensor
- 300W
- Bronze Thru Hull
- 12° tilt
- Ideal for inshore or coastal fishing in shallow to medium depths
- Freshwater anglers will see fish holding close to structures and suspended fish
- Track bottom at higher boat speeds
- More coverage under your boat delivers wider archesand 26° to 17° beamwidths
- Cover the medium frequency range-CHIRPS from 95-155kHz to provide 60kHz of total bandwidth from one transducer
- Hull Type: Fiberglass, wood
- 1 internal ceramic
sim-000-13921-001 mpn: sim-000-13921-001 upc: 9420024162767 depth sensor XSonic B150M MFG 000-13920-001 bronze thin W 12 degree tilt chi medium 80-130 khz...
