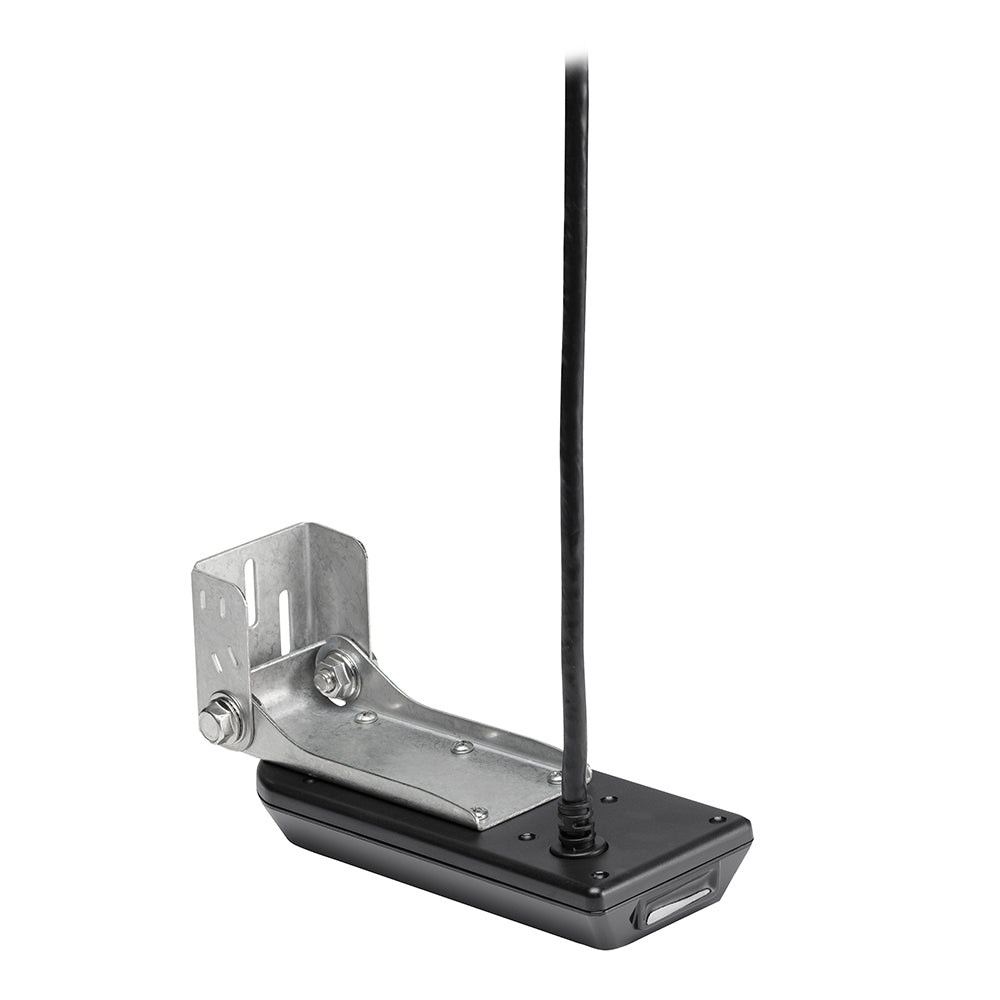

Humminbird XM 14 20 MSI T Mega SI/DI Transom Mount Transducer - 14 Pin

Upgrade your fishing setup with the Humminbird XM 14 20 MSI T Mega SI/DI Transom Mount Transducer, a powerhouse designed specifically for serious anglers chasing crystal-clear underwater visuals. This 14-pin transducer delivers MEGA Side Imaging and MEGA Down Imaging alongside traditional DualBeam PLUS sonar, giving you an edge on the water whether you're targeting structure-hugging bass or scanning vast flats for reds.

Why This Transducer Stands Out for Serious Fish Finders

Engineered for the demanding world of competitive fishing and everyday adventures, this transom-mount unit combines rugged durability with cutting-edge imaging tech. Picture this: razor-sharp side scans revealing fish hiding in brush piles 100 feet off either side of your boat, or down imaging so detailed you can distinguish individual baitfish from the bottom structure. It's not just about seeing more—it's about interpreting the water column like never before, helping you make split-second decisions that land more fish in the livewell.

Built to withstand the pounding of rough seas, constant submersion, and years of hard use, it features a robust housing that laughs off impacts and corrosion. Anglers rave about its stability at high speeds, maintaining accurate readings even when you're running and gunning across the lake.

Core Technical Capabilities

• Imaging Powerhouse: MEGA Side Imaging (SI) at 1.2 MHz for side ranges up to 200 feet with photo-like detail, paired with MEGA Down Imaging (DI) for vertical clarity down to 125 feet.
• Sonar Versatility: DualBeam PLUS frequencies of 50/200 kHz (or 200/83 kHz options) with beam angles of 20°/60° or 86°/55°, covering everything from deep water wide sweeps to pinpoint precision.
• High-Frequency Detail: 455/800 kHz options for refined CHIRP-like performance in shallow to mid-depths.
• Practical Extras: Integrated temperature sensor for tracking water conditions, 20-foot cable for flexible routing, and a straightforward transom mount for quick setup on most boats.

Real-World Benefits for Anglers

Imagine idling over a submerged roadbed and spotting a school of crappie suspended just off the bottom— that's the kind of revelation this transducer provides. Its MEGA tech crushes standard side imaging, showing wreck details, rock piles, and even individual stumps with lifelike resolution. For tournament pros, the wide coverage means less time searching and more time casting. Casual weekend warriors appreciate the temp readout for finding thermal breaks where stripers stack up.

Unlike generic transducers that wash out in murky water or chop, this one's optimized frequencies punch through sediment and thermoclines, delivering usable data when others fail. Plus, its USA-made construction means superior quality control and support you can count on season after season.

Seamless Compatibility and Setup Insights

Tailored for Humminbird SOLIX units with MEGA capabilities, this 14-pin connector plugs right into your existing system—no adapters needed. It's a perfect match for ONIX series as well, unlocking full potential on high-end chartplotter/fishfinder combos.

Installation is boat-owner friendly: Position it parallel to the waterline on your transom, about 1/8 inch below the hull bottom for optimal performance. Secure with stainless hardware, route the cable away from electrical noise sources, and you're scanning in under an hour. Pro tip: Deadrise angle adjustments ensure bubble-free operation, preventing air interference that plagues lesser mounts.

Maximizing Performance Tips

• Run at trolling speeds (3-6 mph) for peak MEGA SI/DI resolution—faster, and switch to 2D sonar for navigation.
• Calibrate sensitivity seasonally; murky spring water might need a boost over clear summer conditions.
• Pair with AutoChart Live for real-time mapping of your hot spots as you fish them.
• Regular hull cleaning prevents growth from degrading signals.
