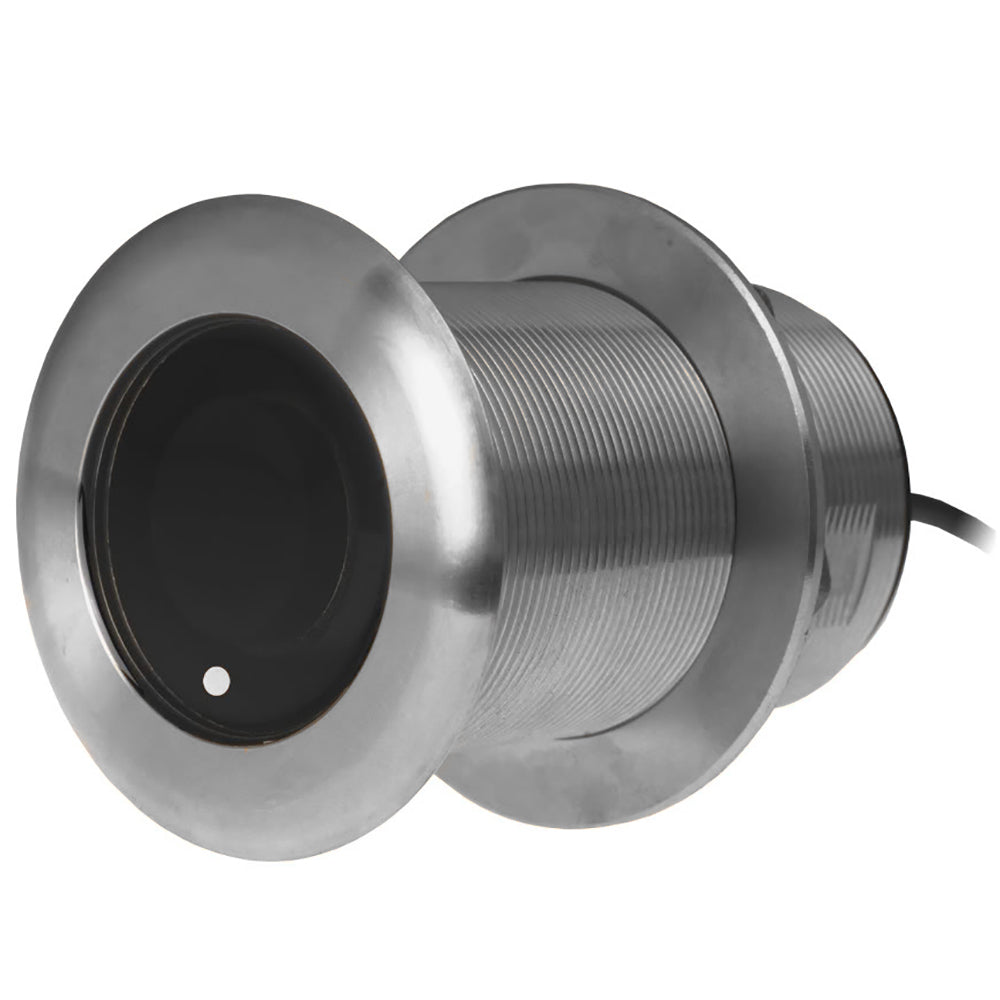

Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable
Shipping (3PM)
Within 30 days
Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable Product Description
Upgrade your boating experience with the XSONIC SS75H, a powerhouse stainless steel thru-hull transducer designed for anglers and navigators who demand precision in every cast and cruise. Perfect for vessels up to 8 meters, this high-frequency CHIRP sensor dives deep—up to 3,000 meters—revealing the underwater world with stunning clarity. Imagine separating schools of baitfish from trophy game fish or spotting hidden structures that could make or break your day on the water. Its 20-degree tilted element compensates for hull deadrise, ensuring rock-solid readings without guesswork.
What sets the SS75H apart? It's not just about raw power at 600 watts; it's the broadband CHIRP technology sweeping 130-210 kHz that delivers target detail five to ten times sharper than traditional sonar. Paired with a built-in temperature sensor, you'll get real-time water data to optimize lure selection and fish behavior predictions. Low-profile design hugs the hull, slicing through water with minimal drag—only 5mm protrudes outside.
Unlock Superior Underwater Insights
CHIRP transducers like the SS75H transform your fishfinder display into a high-definition map of the depths. Traditional fixed-frequency sonar often muddles echoes from fish, thermoclines, and bottom contours. But with continuous frequency sweeps, you get crisp separation: individual fish arches pop vividly, bait balls stand out, and wrecks or drop-offs reveal their secrets. This means fewer false positives and more hookups, especially in shallow bays or coastal runs where high-frequency excels.
- Exceptional Target Resolution: Spot the difference between a striped bass and a school of herring at a glance.
- Deep Water Confidence: Track bottom reliably down to 3,000 meters, ideal for offshore adventures.
- Water Temp Precision: Monitor changes that signal feeding frenzies or migrations.
- Drag-Free Performance: Streamlined housing boosts speed and fuel efficiency.
Engineered for Real-World Demands
Built tough from marine-grade stainless steel, the SS75H withstands corrosion, impacts, and constant submersion. The 20-degree tilt matches hulls with 16-24 degree deadrise angles common on planing hulls, eliminating air bubbles and shadows for consistent pings. Its 9-pin plug-and-play connector simplifies setup, while the 10-meter cable reaches most helm stations without splicing.
- Thru-hull mount for optimal signal path.
- High CHIRP: 130-210 kHz for shallow-to-mid depth mastery.
- Beamwidth: 15° to 9° at -3dB for focused coverage.
- Single ceramic element with exclusive ID for seamless integration.
- Power: 600W RMS for punchy signals.
- No speed sensor—pure focus on depth and temp.
- 33-foot cable for flexible routing.
- Compact: Minimal hull penetration.
Effortless Installation for DIY Enthusiasts
Installing the SS75H is straightforward, but a few pro tips elevate results. Select a spot forward of the prop, 1/3 amidships, away from strakes or thru-hulls that disrupt flow. Fair the housing to match deadrise using epoxy filler for bubble-free operation. Drill with a holesaw matching the 75mm flange, bed in marine sealant, and torque to spec. Route the cable through bulkheads with strain relief—test in a bucket of water before launch to verify no leaks or shorts.
Pro Tip: For stepped hulls, position low to avoid aeration at speed. Always disconnect power during install to safeguard electronics.
Ideal Applications for Every Angler
Coastal kayak fishermen love its shallow-water prowess for flounder gigs. Tournament bass pros rely on it for structure scanning in reservoirs. Charter captains chasing pelagics appreciate deep tracking during drifts. Even sailboat owners value the temp sensor for current edges. Versatile across freshwater and saltwater, it's a go-to for anyone prioritizing sonar quality over gimmicks.
Technical Specifications at a Glance
| Attribute | Details |
|---|---|
| Mounting | Thru-Hull, Stainless Steel |
| Frequency | High CHIRP 130-210 kHz |
| Power | 600 Watts |
| Max Depth | 10,000 ft (3,000 m) |
| Tilt | 20° (16-24° Deadrise) |
| Connectors | 9-Pin |
| Cable Length | 10 m (33 ft) |
| Sensors | Depth & Temperature |
| Beamwidth | 15° to 9° (-3dB) |
| Housing Projection | 5 mm |
Maximize Longevity with Simple Care
Wipe the face monthly with a soft cloth and mild soap to remove growth. Inspect cable for chafing annually. If fouled, gentle pressure washing restores performance—no harsh chemicals needed. In cold climates, haul out to prevent ice damage. With proper upkeep, expect years of reliable service.
Frequently Asked Questions
What boats is the SS75H transducer best suited for?
It's ideal for smaller powerboats and fishing vessels up to 8 meters with 16-24 degree hull deadrise, providing excellent performance in coastal and inland waters.
How does CHIRP technology improve fishing results?
CHIRP sweeps multiple frequencies (130-210 kHz here), offering sharper images, better fish separation, and clearer bottom detail than single-frequency sonar, helping you target specific species accurately.
Is the SS75H easy to install on my own?
Yes, with basic tools: drill a hole, seal the housing, route the cable, and connect the 9-pin plug. Follow hull-specific guidelines for best results.
What's the maximum depth capability?
Up to 10,000 feet (3,000 meters), with strong bottom tracking and resolution throughout shallow to deep ranges.
Does it measure water temperature?
Absolutely—a dedicated sensor provides precise readings to track thermal layers and fish activity.
Why choose stainless steel over plastic?
Stainless steel offers superior durability against corrosion, impacts, and marine growth, ensuring long-term reliability in harsh saltwater environments.
Will it work at high speeds?
Yes, the low-profile design (5mm protrusion) minimizes drag and ventilation, maintaining clear sonar even on planes.
Perfect for smaller boats up to 8 Meter, this stainless steel through hull mounted CHIRP transducer enables bottom detection down to 3,000 Meter with great detail and resolution. This transducer makes it possible to distinguish between individual baitfish, game fish and underwater structures.
Simrad 0013913001 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 9 Pin
- Depth: 10000 Feet
- Power Rating: 600 Watt
- Frequency Range: 130-210 kHz High Frequency CHIRP Transducer
- Supported Angle: 20 Degree Tilt/ 16 To 24 Degree Deadrise
- Cable Length: 33 Feet
Simrad 0013913001 Features & Benefits
- Calculates How Deep The Water Is
- Temperature Sensor For Accurate Water Temperature Readings
- CHIRP Range Is 130 Kilohertz To 210 Kilohertz For Good Target Detail In Shallow Water And Excellent Bottom Tracking In Deep Water
- Low Profile Housing Minimizes Drag With Just 5mm Extending Outside Of The Hull
- 20 Degree Tilt Is Ideal For Boats With A 16 Degree To 24 Degree Hull Deadrise
- Limited 2 Year Warranty
Simrad 0013913001 Warranties
XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable
The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Features:
- CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
- Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
- Easy To Install
- High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
- Highly Accurate - Provides extremely accurate data.
- 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
- Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull.
- Plug & Play Connection - Easily connect to NSSevo3, Lowrance
Specifications:
- Frequency: High CHIRP (130-210kHz)
- Power Rating: 600W
- Speed Sensor: No
- Temperature Sensor: Yes
- Mounting Style: Thru-Hull
- Elements: 1
- Beamwidth @ -3dB: 15° to 9°
The ceramic element is tilted to achieve built-in dead-angle compensation, which provides excellent echoes for more accurate depth readings. The 20 incline is ideal for boats between 20 and 24 feet.
Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable Related Products
Lowrance Adapter Cable 9-PIN ducer To 7-Pin unit non chirpFrequently Asked Questions (FAQ) About Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable
Who is the Navico?How to describe Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable?
What is the power rating of the product?
How many pins exists in the connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable?
This product can read the temprature?
What is the length of cable (feet)?
What is the length of cable?
Is this product supporting CHIRP and what's the type?
Who is the Navico?
How to describe Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable?
- The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer.
- The ceramic element is tilted for built-in deadrise which enables the SS75H to measure depth and temperature without tilting or rotating the vessel.
- The SS75H is designed for use in vessels with an operating depth of less than 20m (65ft) and a deadrise of up to 10 degrees.
- The SS75H is a high-frequency, depth and temperature transducer that provides accurate readings for vessels with deadrise angles of up to 20°.
- The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer.
The Navico XSONIC SS75H is a high-performance, high-sensitivity sonar for shallow water applications. It has a depth capability of up to 600 feet and is designed for fishing in coastal areas, inlets, bays, rivers, and lakes. It features a 20 degree tilted element with a frequency range of 130-210 kHz.
What is the power rating of the product?
- The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer.
- The ceramic element is tilted for built-in deadrise which enables the SS75H to measure depth and temperature without tilting or rotating the vessel.
- The SS75H is designed for use in vessels with an operating depth of less than 20m (65ft) and a deadrise of up to 10 degrees.
- The SS75H is a high-frequency, depth and temperature transducer that provides accurate readings for vessels with deadrise angles of up to 20°.
- The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer.
- Transducer ID technology to identify the model of your boat
- High-frequency range for better performance in shallow water
- Thru-hull installation for a more streamlined look
- Airmar's first ever CHIRP Thru-Hull Transducer
- 20 degree tilted element
- Simrad XSONIC SS75H CHIRP Thru Hull 9-Pin 20 Degree Tilted Element Model: 000-13913-001 Depth & Temperature High Frequency 130-210 kHz 600 W High Performance Stainless Steel Exclusive Transducer ID
- Transducer ID
How many pins exists in the connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable?
This product can read the temprature?
What is the length of cable (feet)?
What is the length of cable?
Is this product supporting CHIRP and what's the type?
Save $124 when you buy the Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable for only $644 from NVN Marine! Same day shipping before 3pm.
Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Navico |
| Weight: |
5.8 lb |
| Temperature: |
Yes |
| Pins: |
9 |
| Mounting Style: |
Thru-Hull |
| Chirp: |
High |
| Cable Length (Feet): |
10m |
| Speed Included: |
No |
Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable User Reviews
Navico XSONIC SS75H Depth/Temperature Transducer 20° - 9-Pin - 600W - 10M Cable Shipping & Return
| Shipping Weight: |
5.8 lb |
|---|---|
| Box Sizes: |
5.00 (h) x 8.00 (w) x 12.00 (l) |
| Cubic Feet: |
480.0 |
| Returnable: |
Yes |
