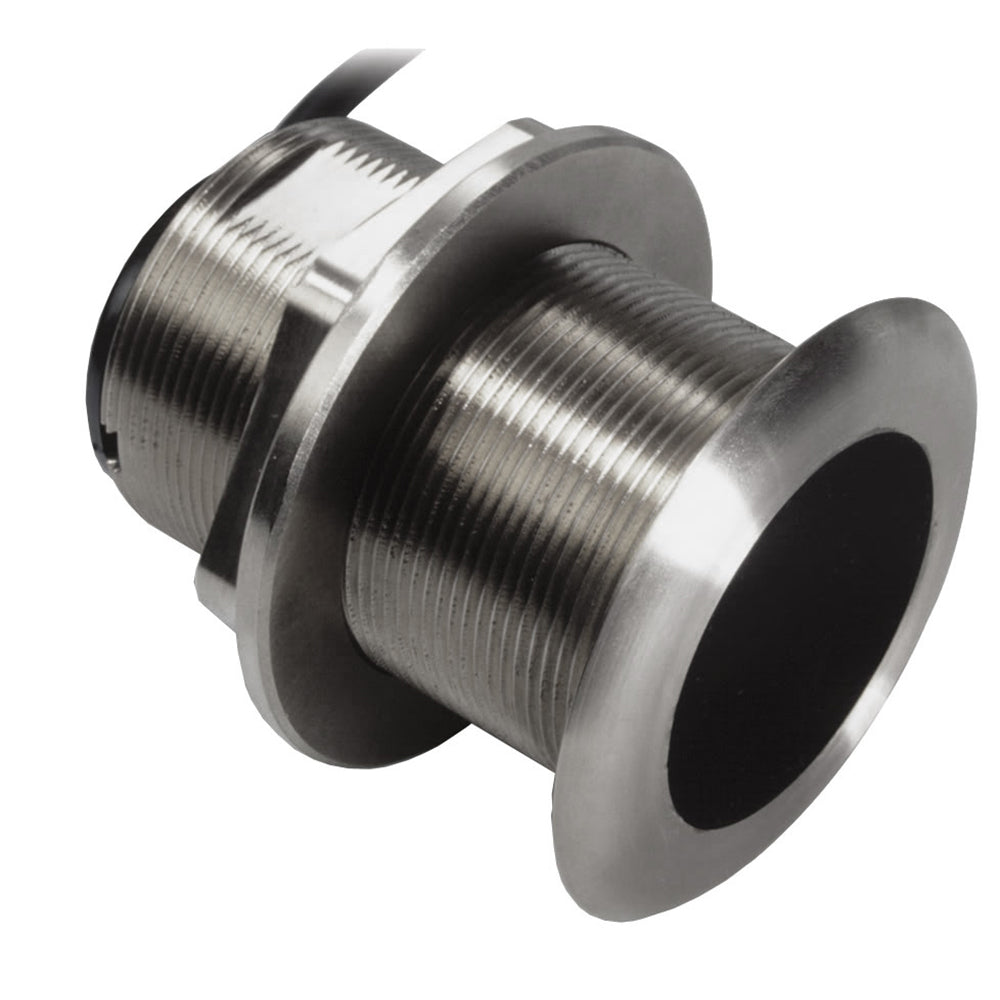

Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable

Free Ground Shipping (2-6 Days Delivery Time)

SKU: 66459 - UPC: 9420024161975 - MPN: 000-13786-001
It will be shipped by UPS Ground.
$478.00 $478.00 ( / )

Available Stock : 30

Navico XSONIC SS60 Stainless Steel Thru-Hull Transducer - 20° Tilt Depth/Temperature Sensor Professional-Grade Depth and Temperature Sensing - Precision Engineered for Performance Experience superior sonar performance with the Navico XSONIC SS60 stainless steel thru-hull transducer, engineered for professional and recreational vessels up to 25 feet. This dual-frequency depth and temperature...
Navico
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable Product Description

Navico XSONIC SS60 Stainless Steel Thru-Hull Transducer - 20° Tilt Depth/Temperature Sensor

Professional-Grade Depth and Temperature Sensing - Precision Engineered for Performance

Experience superior sonar performance with the Navico XSONIC SS60 stainless steel thru-hull transducer, engineered for professional and recreational vessels up to 25 feet. This dual-frequency depth and temperature transducer delivers exceptional accuracy in depths down to 3,000 feet, featuring a 20-degree tilted ceramic element for built-in deadrise compensation and optimal echo returns.

Advanced Dual-Frequency Technology

The SS60 operates at both 50 kHz and 200 kHz frequencies, providing versatile sonar capabilities for all fishing conditions. The 50 kHz frequency delivers excellent bottom tracking in deep water, while 200 kHz provides superior target detail and fish identification in shallow water. This dual-frequency design ensures optimal performance whether you're navigating shallow coastal waters or fishing deep offshore structures.

Precision Engineering Features

  • 20-Degree Tilted Element: Ceramic element tilted for built-in deadrise compensation, ideal for hulls with 16-24° deadrise
  • Low-Profile Housing: Minimizes drag with only 5mm extending outside the hull
  • Stainless Steel Construction: Marine-grade 316 stainless steel ensures maximum corrosion resistance
  • Integrated Temperature Sensor: Provides accurate water temperature readings for enhanced fishing success
  • High Power Rating: 600-watt power handling for superior penetration and clarity
  • Professional Cable: 10-meter (33 feet) marine-grade cable with 9-pin connector

Technical Specifications

  • Frequency Range: 50/200 kHz Dual Frequency
  • Power Rating: 600 Watts
  • Tilt Angle: 20 Degrees
  • Hull Deadrise Compatibility: 16° to 24°
  • Mounting Style: Thru-Hull
  • Depth Rating: 3,000 Feet
  • Beamwidth: 45° (50 kHz), 12° (200 kHz)
  • Cable Length: 10 Meters (33 feet)
  • Connector: 9-Pin Black
  • Profile Extension: 5mm Outside Hull
  • Temperature Sensor: Analog/Digital
  • Vessel Size: Up to 25 Feet

Compatible Electronics

Seamlessly integrates with Navico marine electronics ecosystems including:

  • Simrad NSS evo3 Series
  • Lowrance HDS Gen3 Series
  • B&G Zeus3 Series
  • Other 9-pin Navico/Lowrance/Simrad compatible units

Installation Advantages

The tilted ceramic element design eliminates the need for complex installation adjustments on angled hulls. The 20-degree tilt automatically compensates for hull deadrise angles between 16-24 degrees, ensuring the sonar beam points straight down for optimal bottom reading and fish detection accuracy.

Marine Environment Durability

Constructed from marine-grade stainless steel with advanced corrosion resistance, this transducer withstands the harshest saltwater conditions. The low-profile design reduces drag and minimizes the risk of damage from debris or shallow water contact while maintaining superior hydrodynamic performance.

Frequently Asked Questions

What hull deadrise angle does the 20-degree tilt accommodate?

The 20-degree tilted element is specifically designed for boats with hull deadrise angles between 16° and 24°, providing optimal sonar beam alignment for accurate depth readings.

Can this transducer be used in saltwater environments?

Yes, the SS60 is constructed from marine-grade stainless steel specifically designed for saltwater applications with superior corrosion resistance and long-term durability.

What's the maximum depth capability of this transducer?

The SS60 is capable of accurate depth readings down to 3,000 feet, making it suitable for both inshore and offshore fishing applications on vessels up to 25 feet in length.

Does this transducer require professional installation?

Professional installation is recommended for thru-hull transducers to ensure proper hull penetration, sealing, and optimal performance. Installation requires cutting a hole in the hull and proper marine-grade sealants.

What's the difference between 50 kHz and 200 kHz frequencies?

50 kHz provides excellent bottom tracking and deep water performance with a wider 45° beam, while 200 kHz offers superior target detail and fish identification in shallow water with a narrower 12° beam for precise targeting.

Upgrade your vessel's sonar capabilities with the precision and reliability that only Navico XSONIC technology can deliver. The SS60 transducer - where professional-grade performance meets marine durability.

Navico
000-13786-001
9420024161975
USD "478.00" [product.stock]

The SS60 is a Stainless Steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings. The SS60 is a stainless steel, thru-hull broadband transducer, ideal for smaller sport fishing and commercial vessels up to 25 Feet in length, fishing in depths of down to 3000 Feet. The low profile housing minimizes drag with just 5mm extending outside of the hull, the 20 Degree tilt is ideal for boats with a 16 Degree to 24 Degree hull deadrise. Works at 50 Kilohertz and 200 Kilohertz for good target detail in shallow water and excellent bottom tracking in deep water.

Simrad 0013786001 Attributes

  • Mounting Location: Thru-Hull Mount
  • Number Of Pins: 9 Pin
  • Depth: 3000 Feet
  • Power Rating: 600 Watt
  • Frequency Range: 50/200 kHz Dual Frequency Broadband Transducer
  • Supported Angle: 20 Degree Tilt
  • Cable Length: 33 Feet

Simrad 0013786001 Features & Benefits

  • 20 Degree Tilt
  • Constructed From Stainless Steel
  • Dual Frequency: 50 Kilohertz And 200 Kilohertz
  • Temperature Sensor For Accurate Water Temperature Readings
  • Calculates Depth
  • Limited 2 Year Warranty

Simrad 0013786001 Warranties


XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable

The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:
  • Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
  • Easy To Install
  • Dual Frequency - Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water
  • Highly Accurate - Provides extremely accurate data
  • 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise
  • Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull
  • Plug & Play Connection - Easily connect to NSSevo3, Lowrance HDS G3


Simrad SS60 stainless steel 600 W through the hull 50200 Khz depth temperature (20 tilt) model 000 13786 001 to calculate the depth of the water, in order to avoid running down on the ground, at the same time...

Lowrance 10EX-BLK 9-pin Extension Cable f/LSS-1 or LSS-2 Transducer


Frequently Asked Questions (FAQ) About Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable

Who is the Navico?
How to describe Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable?
What is the power rating of the product?
How many pins exists in the connector of the product?
How to mount or what is the mounting style of Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable?
This product can read the temprature?
What is the length of cable (feet)?
What is the length of cable?

Who is the Navico?

Navico is the leader in marine electronics and is currently the world's largest marine electronics company. Navico is the parent company to leading marine electronics brands: Lowrance, Simrad, B&G and C-MAP. Navico has approximately 1,500 employees globally and distribution in more than 100 countries. Navico partners with a talented, global supplier network to deliver quality products to its customers.

How to describe Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable?

Simrad SS60 stainless steel 600 W through the hull 50200 Khz depth temperature (20 tilt) model 000 13786 001 to calculate the depth of the water, in order to avoid running down on the ground, at the same time...

What is the power rating of the product?

600 Watt

How many pins exists in the connector of the product?

9

How to mount or what is the mounting style of Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable?

Thru-Hull

This product can read the temprature?

Yes

What is the length of cable (feet)?

10m

What is the length of cable?

33 Feet


Buy with the best price Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable for only $478 from NVN Marine! Same day shipping before 3pm.

Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Navico

Weight:

5.0 lb

Pins:

9

Mounting Style:

Thru-Hull

Temperature:

Yes

Cable Length (Feet):

10m

Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable User Reviews

Navico XSONIC SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M Cable Shipping & Return

Shipping Weight:

5.0 lb

Box Sizes:

4.00 (h) x 8.00 (w) x 10.00 (l)

Cubic Feet:

320.0

Returnable:

Yes
