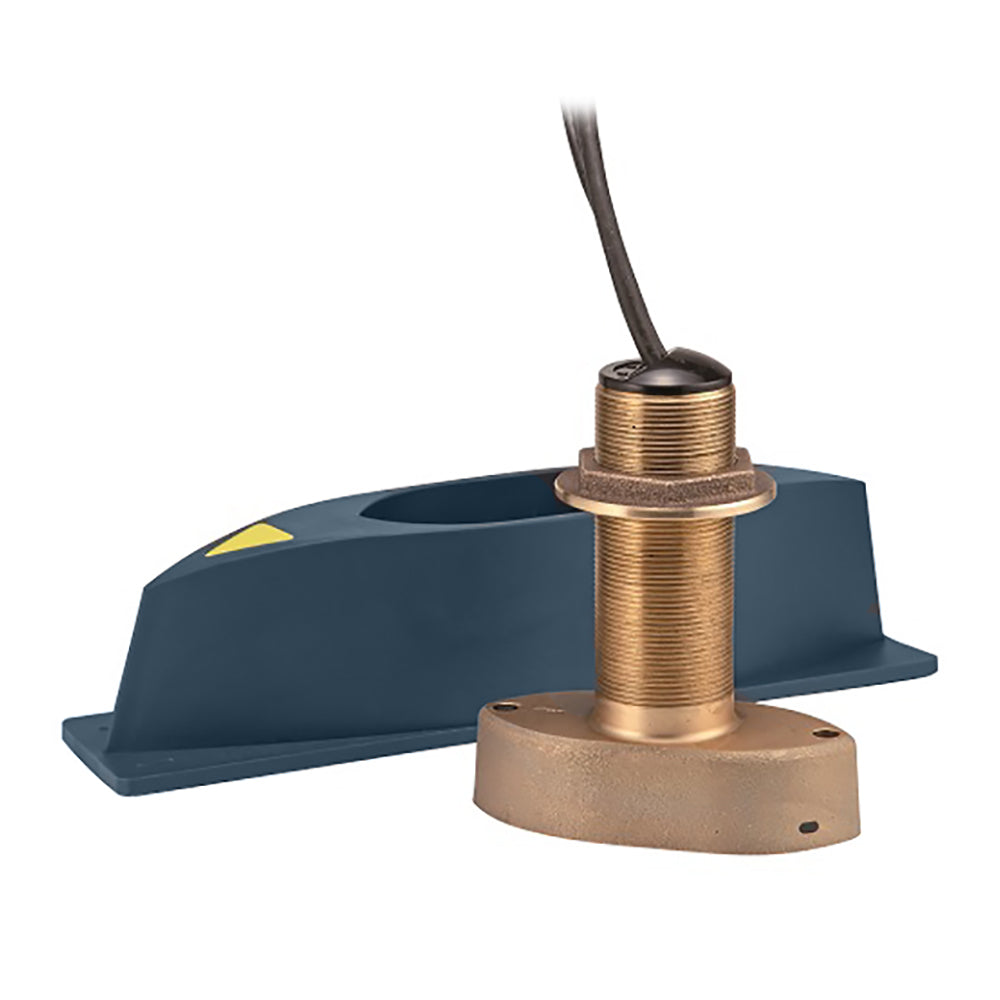

Furuno Thru-Hull Multibeam Transducer f/DDF3D

Free Ground Shipping (2-6 Days Delivery Time)

SKU: 66165 - UPC: 611679371652 - MPN: 165T-B54
$1,749.99 $1,900.00 ( / )

Available Stock : 10

Furuno 165T-B54 Thru-Hull Multibeam Transducer for DFF3D 3D Sonar Experience revolutionary underwater imaging with the Furuno 165T-B54 multibeam thru-hull transducer, engineered specifically for the DFF3D 3D sonar system. This professional-grade bronze transducer delivers exceptional 120-degree port-starboard underwater visualization, providing comprehensive bottom structure mapping and fish detection capabilities that transform your...
Furuno
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Furuno Thru-Hull Multibeam Transducer f/DDF3D Product Description

Furuno 165T-B54 Thru-Hull Multibeam Transducer for DFF3D 3D Sonar

Experience revolutionary underwater imaging with the Furuno 165T-B54 multibeam thru-hull transducer, engineered specifically for the DFF3D 3D sonar system. This professional-grade bronze transducer delivers exceptional 120-degree port-starboard underwater visualization, providing comprehensive bottom structure mapping and fish detection capabilities that transform your fishing and navigation experience.

Advanced 3D Multibeam Sonar Technology

The 165T-B54 operates at 165 kHz frequency to provide clear, high-resolution underwater imaging without interfering with your existing fishfinder systems. This specialized frequency delivers optimal performance for the DFF3D's advanced multibeam sonar technology, creating detailed three-dimensional images of bottom structure, fish schools, and underwater terrain.

Superior 120-Degree Coverage

Unlike traditional single-beam transducers that provide narrow cone coverage, the 165T-B54 delivers comprehensive 120-degree port-to-starboard underwater visualization. This wide-angle coverage reveals fish and structure far beyond the confines of your boat's path, dramatically increasing your fishing success and underwater situational awareness.

Professional Performance Specifications

  • Maximum Depth Capability: Up to 985 feet (300 meters) for comprehensive deep-water performance
  • High Power Rating: 1000-watt power handling for superior target penetration and clarity
  • Wide Beam Coverage: 120-degree horizontal beamwidth for maximum underwater visibility
  • Optimal Frequency: 165 kHz operating frequency designed specifically for DFF3D compatibility

Built-In Motion Compensation Technology

The integrated motion sensor provides real-time stabilization of the sonar display, ensuring clear and stable underwater images even in rough sea conditions. This advanced stabilization technology automatically compensates for boat movement, pitch, and roll, delivering consistently accurate bottom tracking and fish detection regardless of sea state.

Temperature Sensing Capability

The built-in temperature sensor continuously monitors water temperature, providing valuable data for understanding fish behavior and water column characteristics. This real-time temperature information integrates seamlessly with your NavNet display system for comprehensive environmental monitoring.

Professional Bronze Construction

Manufactured from marine-grade bronze, the 165T-B54 provides exceptional durability and corrosion resistance in harsh saltwater environments. The bronze construction ensures long-term reliability while maintaining optimal acoustic transmission properties essential for high-performance sonar operation.

Versatile Installation Options

  • Standard Thru-Hull Installation: Includes high-speed fairing block for optimal water flow and reduced turbulence
  • Flush Keel Mounting: Can be installed flush in the keel without fairing block for streamlined installations
  • Compact Design: Space-efficient profile allows installation in restricted areas
  • Professional Mounting Hardware: Complete installation kit ensures secure, watertight mounting

Technical Specifications

Electrical Specifications

Operating Frequency: 165 kHz
Power Rating: 1000 Watts
Connection Type: 7-Pin Connector
Cable Length: 32.8 feet (10 meters) x 2
Cable Configuration: Bare-ended cable for DFF3D sonar

Performance Specifications

Maximum Depth: 985 feet (300 meters)
Beam Coverage: 120 degrees port-starboard
Main Beam Depth: 1000+ feet directly below boat
Side Coverage Depth: 650 feet to port/starboard

Physical Specifications

Model Number: 165T-B54
UPC Code: 611679371652
Construction Material: Marine-Grade Bronze
Mounting Type: Thru-Hull
Fairing Block: Included (High-Speed Design)

Integrated Sensors

Motion Sensor: Built-in stabilization system
Temperature Sensor: Integrated water temperature monitoring
Stabilization: Automatic motion compensation

System Compatibility & Integration

The 165T-B54 transducer is designed exclusively for use with the Furuno DFF3D multibeam sonar module and requires compatible NavNet display systems:

Compatible Display Systems

  • NavNet TZtouch: TZT9, TZT14, TZTBB (software v5.01 or later)
  • NavNet TZtouch2: TZTL12F, TZTL15F (software v5.01 or later)
  • NavNet TZtouch3: Latest generation multifunction displays

Professional Installation Requirements

The 165T-B54 requires professional installation by certified marine electronics technicians to ensure optimal performance and watertight integrity. Proper installation includes precise hull cutting, gasket sealing, and electrical connection to the DFF3D sonar module.

Installation Considerations

  • Hull Thickness Compatibility: Suitable for various hull thickness applications
  • Deadrise Angle: Performance optimized for deadrise angles up to 22 degrees
  • Flow Characteristics: High-speed fairing block minimizes cavitation and turbulence
  • Maintenance Access: Design allows for routine inspection and maintenance

Advanced Fishing & Navigation Applications

The 165T-B54's wide-angle coverage revolutionizes fishing efficiency by revealing fish schools, baitfish concentrations, and bottom structure across a 120-degree swath. This comprehensive underwater view allows anglers to identify productive fishing areas, track fish movements, and understand bottom composition for more successful fishing strategies.

Navigation Safety Benefits

Beyond fishing applications, the multibeam coverage provides enhanced navigation safety by revealing underwater obstacles, depth changes, and bottom hazards well beyond traditional sonar coverage. This expanded awareness is particularly valuable for navigating unfamiliar waters and avoiding underwater hazards.

Warranty & Professional Support

Backed by Furuno's comprehensive 3-year limited warranty and worldwide service network, the 165T-B54 provides long-term reliability and professional support. Furuno's legendary reputation for marine electronics excellence ensures dependable performance in demanding marine environments.

Performance Note

Optimal performance requires proper installation, calibration, and integration with compatible DFF3D sonar modules. Professional installation ensures maximum system performance and warranty compliance.

Frequently Asked Questions

What is the difference between multibeam and traditional transducers?

Traditional transducers provide a narrow cone of coverage directly below the boat, while the 165T-B54 multibeam transducer delivers 120-degree port-to-starboard coverage. This wide-angle view reveals fish and structure far beyond your boat's path, dramatically increasing fishing success and underwater awareness.

What NavNet systems are compatible with the 165T-B54?

The 165T-B54 is compatible with NavNet TZtouch (TZT9/14/BB), NavNet TZtouch2 (TZTL12/15F), and NavNet TZtouch3 systems. All systems require software version 5.01 or later and must be used with the DFF3D multibeam sonar module.

How does the built-in motion sensor improve performance?

The integrated motion sensor automatically compensates for boat movement, pitch, and roll, ensuring stable and clear underwater images even in rough sea conditions. This stabilization technology provides consistent bottom tracking and fish detection regardless of sea state.

Can the transducer be installed flush without the fairing block?

Yes, the 165T-B54 can be flush mounted directly in the keel without using the fairing block. However, the included high-speed fairing block is recommended for most installations to optimize water flow and reduce turbulence around the transducer.

What is the maximum effective depth for the 165T-B54?

The transducer provides performance up to 985 feet (300 meters) overall, with main beam penetration exceeding 1000 feet directly below the boat and side coverage extending to approximately 650 feet to port and starboard, depending on water conditions.

Will the 165 kHz frequency interfere with my existing fishfinder?

No, the 165 kHz operating frequency is specifically chosen to avoid interference with standard 50/200 kHz fishfinder systems. You can operate both systems simultaneously without signal conflicts or performance degradation.

What installation considerations are important for optimal performance?

Professional installation is essential for optimal performance. Key considerations include proper hull thickness compatibility, deadrise angle limitations (optimized for up to 22 degrees), precise alignment, and watertight sealing. The high-speed fairing block should be used to minimize cavitation and turbulence.

The 165T-B54 is a multi-beam transducer for the DFF3D that affords a 120 Degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.

Furuno 165TB54 Attributes

  • Mounting Location: Thru-Hull Mount
  • Number Of Pins: 7 Pin
  • Depth: 985 Feet
  • Power Rating: 1000 Watt
  • Frequency Range: 165 kHz
  • Supported Angle: 120 Degree Beamwidth
  • Cable Length: 32.8 Feet

Furuno 165TB54 Features & Benefits

  • Bronze Thru Hull With High Speed Fairing Block
  • Can Be Flush Mounted In Keel Without Using Fairing Block
  • DFF3D Operating Frequency: 165 Kilohertz
  • Compact Design
  • Built-In Motion And Temperature Sensor
  • Limited 3 Year Warranty

Thru-Hull Multibeam Transducer f/DDF3D

The 165T-B54 is a multi-beam transducer for the DFF3D that affords a 120° port-starboard view of the underwater world. Its compact design allows for easy installation. A built-in motion sensor stabilizes the display to give clear and stable images, even under rough sea conditions.

f / DDF3D penetrating multi-beam sensor 165T-B54 is DFF3D's multi-beam sensor, which can provide a 120-degree starboard view of the underwater world. Its compact design...
