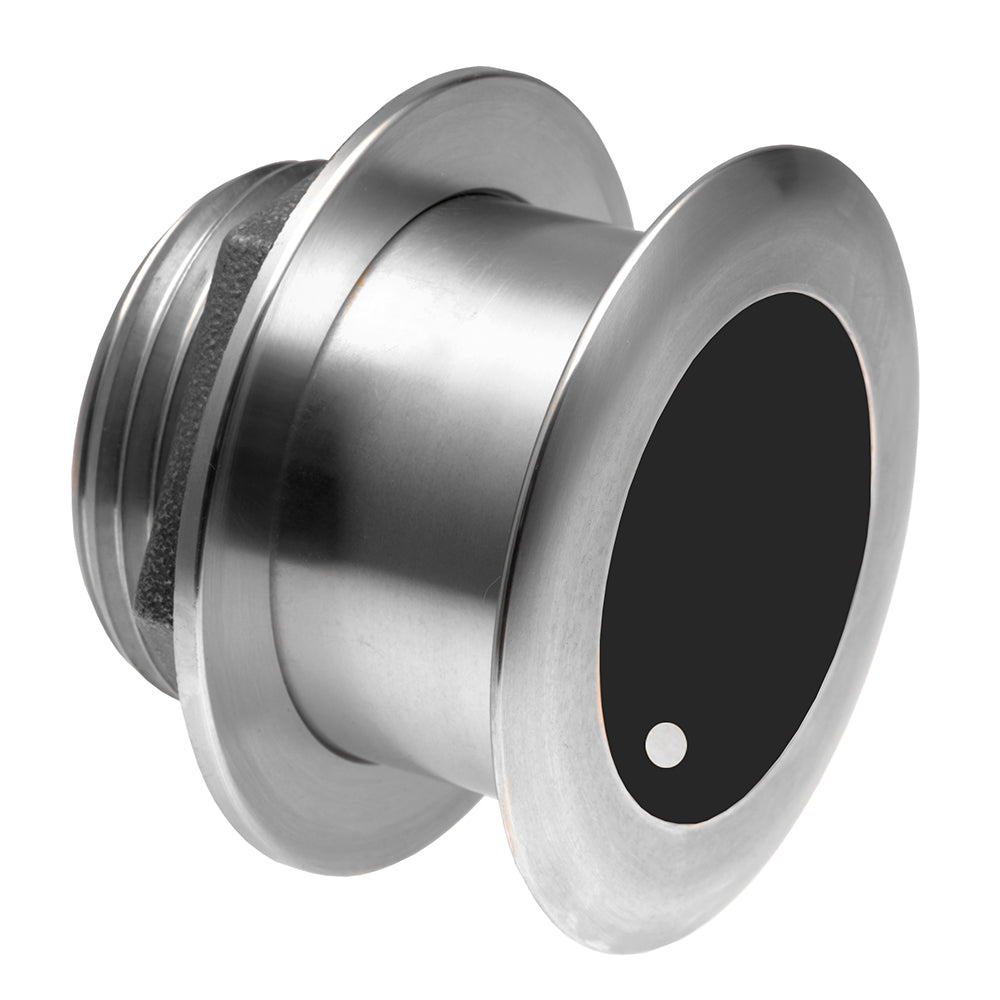

Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin
Free Ground Shipping (2-6 Days Delivery Time)
SKU: 65714 - UPC: 9420024161890 - MPN: 000-13778-001
$1,056.99
$1,379.00
( / )
The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sport fishing and commercial vessels up to 8 Meter in length. This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.Simrad 0013778001 Attributes Mounting...
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin Product Description
The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sport fishing and commercial vessels up to 8 Meter in length. This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.
Simrad 0013778001 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 9 Pin
- Frequency Range: 85-135 kHz Medium Frequency Single Channel CHIRP Transducer
- Supported Angle: 12 Degree Tilt
- Cable Length: 33 Feet
Simrad 0013778001 Features & Benefits
- 12 Degree, Low CHIRP Through Hull Flush Mount Transducer
- Black 9 Pin Connector
- Constructed From Stainless Steel
- 85 Kilohertz To 135 Kilohertz Medium CHIRP
- Limited 2 Year Warranty
Simrad 0013778001 Warranties
XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin
Features:
- Black 9-Pin Connector
- Cable Length - 10M (33.0')
- SS175M - 1-Internal Broadband Ceramic Assembly
- Depth & fast-response water-temperature sensor
- Stainless Steel transducer housing
- Hull Type: Steel or aluminum
- Boat Size: Up to 11M (36’)
- Useable shaft length 71mm (2.80”)
Medium-Frequency (M)
- Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
Rely on Simrad's new broadband sensor to complete your final fishing mission. Whether you are a commercial fisherman, a charter captain or a tournament angler, there are new games in the town! The chirp sensor is capable of bottom detection at a depth of 10,000 feet (3,000 meters) and has 5 to 10 times the detail and resolution, so it can distinguish between single bait fish, game fish and underwater structures. The sensor is designed for small boats up to 36' (11 meters). The intermediate frequency of the M model is 85-135 kHz, which is a 12-skewed version. The total bandwidth of a sensor is 50 kHz, covering the popular phishing frequencies of 88 and 107 kHz and all other information in the bandwidth. Depth and fast response water temperature sensor. The SS175M sensor has a stainless steel housing and is specially designed for ships with steel or aluminum hulls. The transducer has a rated power of 1 kW at a 1% duty cycle of 2.5" (65 mm) PZT and an effective area of ​​5.1 square inches (33 sq.cm.). The radiating surface of the transducer is a urethane design , With Q equal to 2. The cable is of type C335 and the length is 33' (10 meters). The sensor comes with installation hardware and user manual. Note: (1) dB re 1 Pa per volt at 3'(1 meter) (2) dB Pa 1 Pa 1 volt per volt (3) The sum of the transmitted voltage response and the received voltage response (4) The CW rated power is suitable for a seawater temperature of 68 F (20 C).
Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin Related Products
Lowrance 10EX-BLK 9-pin Extension Cable f/LSS-1 or LSS-2 TransducerFrequently Asked Questions (FAQ) About Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin
Who is the Navico?How to describe Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin?
What is the length of cable?
Who is the Navico?
Navico is the leader in marine electronics and is currently the world's largest marine electronics company. Navico is the parent company to leading marine electronics brands: Lowrance, Simrad, B&G and C-MAP. Navico has approximately 1,500 employees globally and distribution in more than 100 countries. Navico partners with a talented, global supplier network to deliver quality products to its customers.
How to describe Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin?
Rely on Simrad's new broadband sensor to complete your final fishing mission. Whether you are a commercial fisherman, a charter captain or a tournament angler, there are new games in the town! The chirp sensor is capable of bottom detection at a depth of 10,000 feet (3,000 meters) and has 5 to 10 times the detail and resolution, so it can distinguish between single bait fish, game fish and underwater structures. The sensor is designed for small boats up to 36' (11 meters). The intermediate frequency of the M model is 85-135 kHz, which is a 12-skewed version. The total bandwidth of a sensor is 50 kHz, covering the popular phishing frequencies of 88 and 107 kHz and all other information in the bandwidth. Depth and fast response water temperature sensor. The SS175M sensor has a stainless steel housing and is specially designed for ships with steel or aluminum hulls. The transducer has a rated power of 1 kW at a 1% duty cycle of 2.5" (65 mm) PZT and an effective area of ​​5.1 square inches (33 sq.cm.). The radiating surface of the transducer is a urethane design , With Q equal to 2. The cable is of type C335 and the length is 33' (10 meters). The sensor comes with installation hardware and user manual. Note: (1) dB re 1 Pa per volt at 3'(1 meter) (2) dB Pa 1 Pa 1 volt per volt (3) The sum of the transmitted voltage response and the received voltage response (4) The CW rated power is suitable for a seawater temperature of 68 F (20 C).
- Industry-leading sonar technology that scans the water and provides accurate readings.
- 12" element for wide coverage and 9-pin connector cable for easy installation.
- Comes with a 10 meter cable to make sure you have enough length to install the transducer anywhere you want.
- The SS175M is ideal for a wide variety of fishing conditions.
- The 12" element provides excellent fish-finding ability, and the 9-pin connector with 10m cable length can be easily connected to a depth finder or sounder.
- The SS175M also includes a black 9-pin connector cable with 10m length and an internal broadband ceramic assembly for fast water temperature response.
If you're looking for a high-quality, affordable, and reliable thru-hull sonar, look no further. Navico's XSONIC SS175M is the perfect solution. It's easy to install and comes with everything you need to get started. This sonar is made of durable stainless steel and has a 12 degree tilted element that provides accurate readings on fiberglass and wood hulls.
What is the length of cable?
33 Feet
- Industry-leading sonar technology that scans the water and provides accurate readings.
- 12" element for wide coverage and 9-pin connector cable for easy installation.
- Comes with a 10 meter cable to make sure you have enough length to install the transducer anywhere you want.
- The SS175M is ideal for a wide variety of fishing conditions.
- The 12" element provides excellent fish-finding ability, and the 9-pin connector with 10m cable length can be easily connected to a depth finder or sounder.
- The SS175M also includes a black 9-pin connector cable with 10m length and an internal broadband ceramic assembly for fast water temperature response.
- Simrad SS175M Stainless steel CHIRP Thru Hull with 12 Degree Tilted Element Model: 000-13778-001 80-130 kHz Medium CHIRP frequencies Suitable for fiberglass and wood hulls 1 internal broadband ceramic Thru-hull with stainless steel housing
- This is a Thru Hull Transducer, which is used to detect the depth of the water below your boat. It is also used to measure the speed of the water flow.
- The Simrad SS175M Stainless steel CHIRP Thru Hull with 12 Degree Tilted Element Model: 000-13778-001 80-130 kHz Medium CHIRP frequencies Suitable for fiberglass and wood hulls 1 internal broadband ceramic Thru-hull with stainless steel housing is a high performance, medium frequency (80 to 130 kHz) transducer that provides excellent seakeeping for fiberglass and wood hulls.
- The Simrad SS175M Stainless steel CHIRP Thru Hull with 12 Degree Tilted Element Model
Save $322 when you buy the Navico XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin for only $1056 from NVN Marine! Same day shipping before 3pm.
