Furuno DRS25AX 25kW UHD Digital Radar f/TZtouch & TZtouch2 - Less 4' or 6' Antenna
Fast & Free Shipping (1-3 Days Delivery Time)
Shipping (3PM)
Within 30 days
Furuno DRS25AX 25kW UHD Digital Radar f/TZtouch & TZtouch2 - Less 4' or 6' Antenna
Product DescriptionExperience the next evolution in marine radar with the Furuno DRS25AX "X-Class" – a powerhouse designed to redefine how you navigate challenging waters. This 25kW UHD digital radar delivers crystal-clear imaging at both close quarters and staggering distances up to 96 nautical miles, empowering skippers with unmatched situational awareness whether you're chasing game fish offshore or threading through congested harbors.
What sets the DRS25AX apart is its thoughtful engineering: a streamlined pedestal that's 20% lighter with whisper-quiet operation, plug-and-play smart-connector cabling, and zero need for a separate power supply unit. It's built for seamless integration into your TZtouch or TZtouch2 ecosystem, turning complex data into intuitive visuals that keep you one step ahead of the sea.
Why Choose the DRS25AX for Superior On-Water Performance?
Boat owners rave about how this radar transforms night runs and foggy conditions into confident cruises. Its ultra-high-definition resolution picks up targets as close as 20 meters, spotting small vessels or debris that lesser systems miss. Pair that with long-range punch, and you've got a tool that excels in diverse scenarios – from coastal cruising to deep-sea adventures.
- Precision Detection: Narrow beam widths (down to 1.4° on larger antennas) for razor-sharp target separation.
- Safety Boost: Instant vector displays for target speed and course, borrowed from pro-grade commercial tech.
- Fishing Edge: Specialized Bird Mode reveals schools lurking high above the waves.
- Quiet & Efficient: Low-noise motor means less distraction, more focus on the horizon.
Unlock Pro-Level Capabilities
Fast Target Tracking™
Press a button, and watch as up to 20 targets populate with real-time course and speed vectors. No guesswork – just actionable intel that heightens safety during high-traffic maneuvers or pursuits.
Bird Mode Mastery
Anglers know the drill: birds circle bait balls. This mode amplifies faint echoes, helping you zero in on prime fishing spots without wasting fuel on empty water.
Effortless Setup
Forget tedious wiring hassles. The smart-connector cable simplifies connections, and the sealed pedestal means no internal access during install – ideal for DIYers or busy yards.
Seamless Fit for Your Vessel
Exclusively tailored for NavNet TZtouch and TZtouch2 systems, the DRS25AX slots right into your existing setup. Note it's a 24V powerhouse, so snag a reliable DC-DC converter if your boat runs 12V. Flexible antenna options (3.5', 4', or 6') let you match beam width to your hull size and mission.
Pro tip: Mount high and forward for optimal sweep, ensuring minimal blind spots amid superstructure clutter.
Detailed Specifications
| Specification | Details |
|---|---|
| Power Output | 25kW |
| Input Voltage | 24V DC |
| Antenna Options | 3.5', 4', or 6' (open array) |
| Horizontal Beam Width | 2.3° (3.5'), 1.9° (4'), 1.4° (6') |
| Vertical Beam Width | 22° |
| Minimum Range | 20 meters |
| Maximum Range | 96 nautical miles |
Complete Kit Contents

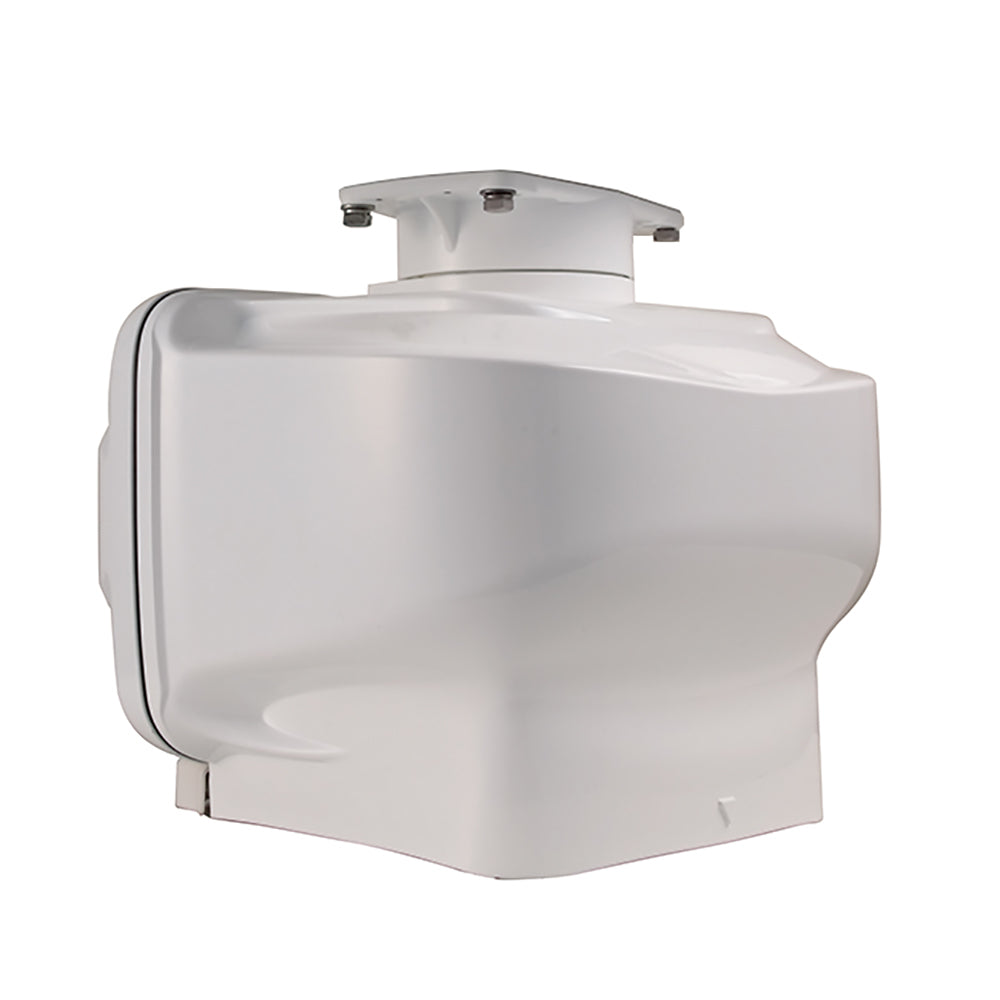

- DRS25AX Scanner Unit (pedestal, less antenna)
- 15m Signal/Power Cable Assembly
- ATV 10A 60V Fuse
- Corrosion-proof Pads (x4)
- Hex Nuts M12 (x8), Spring Washers (x4), Flat Washers (x4)
- Hex Studs M12x70 (x4)
- Installation Manual, Mounting Template, Environmental Data Sheet
Everything you need for a rock-solid mount and quick startup.
Frequently Asked Questions
Is the DRS25AX compatible with older Furuno NavNet systems?
No, it's optimized for TZtouch and TZtouch2 only. Earlier models like NavNet 3D aren't supported.
Does this radar work on 12V boats?
It's a 24V system, but pairs perfectly with a 12V-to-24V DC converter for hassle-free operation.
What antenna sizes are available for the DRS25AX?
Choose from 3.5-foot, 4-foot, or 6-foot open array antennas to suit your vessel's size and range needs.
How does Bird Mode help with fishing?
It enhances detection of birds over bait schools, guiding you straight to productive waters even in clutter.
Is installation DIY-friendly?
Absolutely – the smart-connector cable and sealed design eliminate complex wiring, with all hardware included.
What's the noise level like on the DRS25AX?
Significantly reduced thanks to the updated low-noise motor, making it ideal for overnight passages.
Can Fast Target Tracking handle multiple vessels?
Yes, it tracks up to 20 targets simultaneously, displaying vectors for speed and direction instantly.
DRS25AX 25kW UHD Digital Radar f/TZtouch & TZtouch2 - Less 4' or 6' Antenna
25kW UHD Digital Radar for TZtouch and TZtouch2, less 4’ or 6’ antenna. DRS25AX "X-Class", a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS25AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 25kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- Smart-connector cable
- Choice of 3.5'/4'/6' Antenna
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
Furuno DRS25AX 25kW X-Band Radar with 15 meter Cable
Model: DRS25AX- 25kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- New smart-connector cable
- The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS25AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Specifications| Input voltage | 24vDC |
| Optional Antenna | 3.5' or 4' or 6' |
| Horizontal Beam Width | 2.3° with 3.5' antenna 1.9° with 4' and 1.4° with 6' |
| Vertical Beam Width | 22° |
| Maximum Range | 96nm |
What's in the Box:
- Scanner Unit
- Fuse ATV10A60V
- Corrosion-proof pad x 4
- Hex Nut M12 x 8
- Spring Washer M12 x 4
- Flat Washer M12 x 4
- Hex Stud M12x70 x 4
- Installation Manual
- Mounting Template
- Environmental Data Sheet
- Signal/Power Cable Assy 15M
