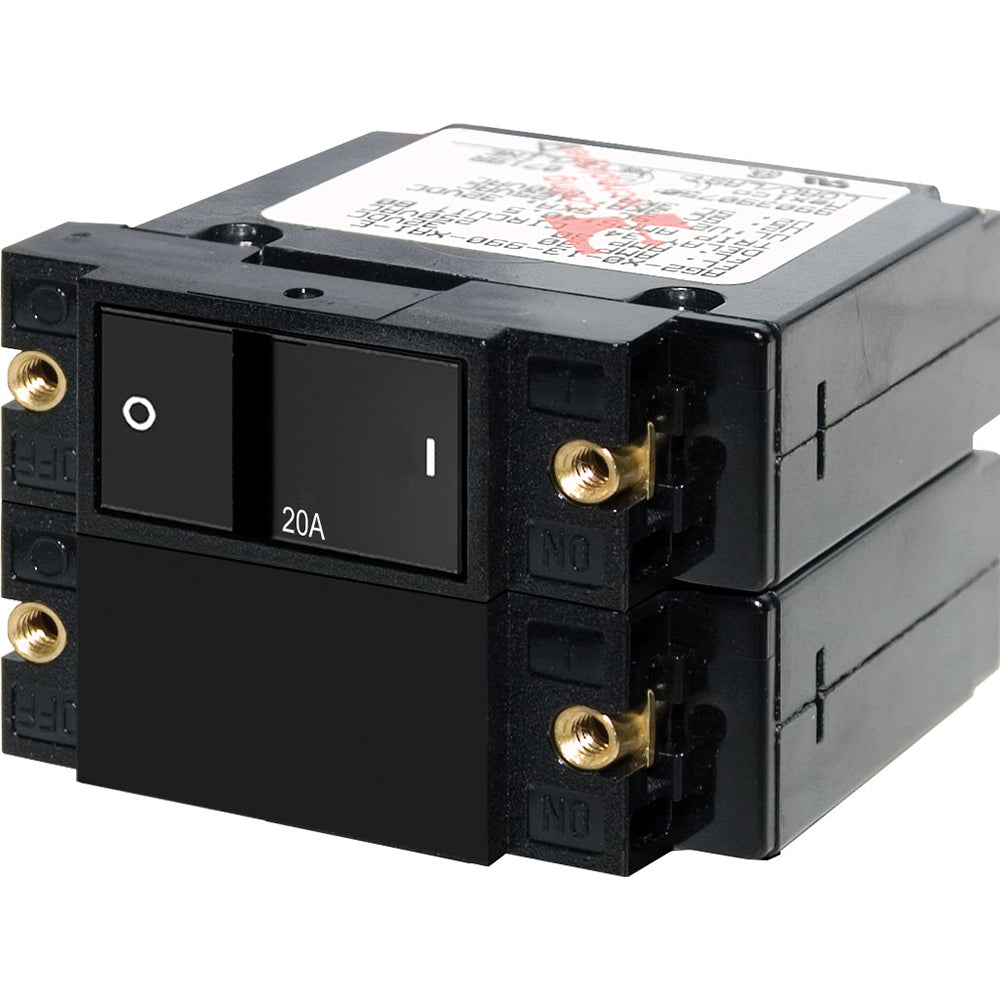

Blue Sea 7413 A-Series Flat Rocker Circuit Breaker - Double Pole - 20A

Blue Sea 7413 A-Series Flat Rocker Circuit Breaker - Double Pole - 20A Product Description

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device. The industry standard circuit breaker for Blue Sea Systems electrical panels

Blue Sea 7413BSS Attributes

• Ampere Rating: 20 Amp
• Voltage Rating: 120/ 240 Volt AC/ 32 Volt DC
• Terminal Connection: Screw
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7413BSS Features & Benefits

• Rocker Actuator Is Flush In The “ON” Position, Eliminating The Risk Of Accidental Switching
• Color Actuator Indicates “OFF” Position
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• Prevents Accidental Switching Of 24 Hour Circuits
• International ON And OFF Symbols Support Vertical Or Horizontal Mounting
• No Supplier Warranty

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage : 20A AC / 20A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)
