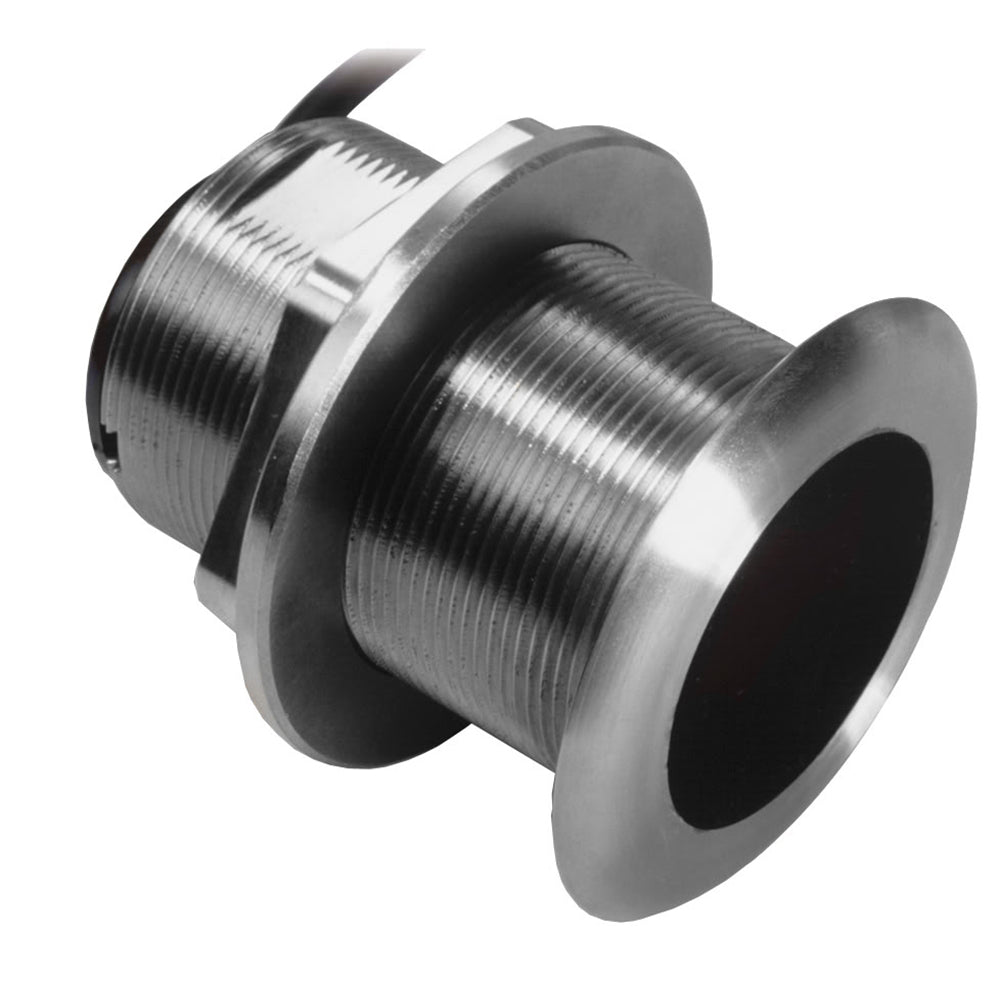

Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable
Free Ground Shipping (2-6 Days Delivery Time)
It will be shipped by UPS Ground.
Shipping (3PM)
Within 30 days
Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable Product Description
Upgrade your boat's sonar capabilities with a transducer built for precision and durability in demanding marine environments. This stainless steel thru-hull model features a 12-degree tilted element, perfectly matched to hulls with 8 to 15 degrees of deadrise. It delivers reliable depth readings and water temperature data, helping you navigate safely and locate fish with confidence—whether you're trolling offshore or exploring coastal waters.
Crafted for mid-performance setups, it strikes the ideal balance between power and sensitivity, ensuring clear echoes from shallow structures to deeper bottoms. The low-profile design hugs the hull closely, reducing drag and turbulence for smoother rides at speed.
Why Boaters Trust This Transducer
- Optimized for Real-World Hulls: The built-in 12° tilt compensates for deadrise angles, aligning the ceramic element perpendicular to the water for sharper, more accurate bottom tracking—eliminating the guesswork common with flat-mount options.
- Dual-Frequency Versatility: Switch seamlessly between 50 kHz for wide-area coverage in deep water (up to 45° beam) and 200 kHz for crisp detail in shallows (12° beam), ideal for both navigation and structure scanning.
- Robust Marine Construction: Marine-grade stainless steel housing withstands corrosion, impacts, and constant submersion, backed by a sleek profile that protrudes just 5mm below the hull to minimize resistance.
- Integrated Sensors: Combines high-accuracy depth with analog/digital temperature sensing, giving you vital data for baitfish tracking, thermocline detection, and safe passage.
- Plug-and-Play Simplicity: Features a 9-pin black connector and 10-meter cable, making it a straightforward swap for compatible chartplotters—perfect for weekend warriors and serious anglers alike.
Maximize Your On-Water Performance
In practical use, this transducer shines during early morning fog or low-light conditions when visual navigation falls short. The 600-watt RMS power punches through thermoclines and suspended sediment, revealing wrecks, drop-offs, and schools that lesser units miss. Anglers report consistent lock-on to bottom structure at speeds over 20 knots, thanks to the tilted design that fights aeration.
For fishing applications, the dual frequencies let you dial in: use 200 kHz to pinpoint jigging spots near reefs or 50 kHz to scout broad ledges in 300+ feet. Pair it with modern multifunction displays, and you'll get layered sonar views that separate bait from gamefish effortlessly.
Installation Tips for Peak Results
- Choose a forward-facing spot 1/4 hull length from the bow, away from strakes or thru-hulls to avoid interference.
- Drill at a slight forward angle matching your deadrise for flush seating—seal with marine sealant for watertight integrity.
- Route the cable along existing wire runs, securing with ties to prevent chafing from engine vibration.
- Calibrate post-install via your display's sonar menu for spot-on depth offsets and temperature accuracy.
Regular maintenance is simple: Wipe the face seasonally with a soft cloth and mild soap to prevent marine growth buildup, ensuring year-after-year clarity.
Detailed Specifications
| Specification | Details |
|---|---|
| Frequency | 50/200 kHz |
| Power Rating | 600 watts |
| Beam Width (-3 dB) | 45° (50 kHz) / 12° (200 kHz) |
| Sensors | Depth & Temperature |
| Housing Material | Stainless Steel |
| Mounting Style | Thru-Hull (12° Tilt) |
| Cable Length | 10 meters |
| Connector | 9-pin Black |
Frequently Asked Questions
What hull deadrise angles is this 12° tilted transducer suited for?
It's designed for boats with 8° to 15° deadrise, ensuring the element sits perpendicular to the waterline for optimal performance.
Does it measure water temperature?
Yes, it includes an integrated temperature sensor that provides accurate readings for fishing and navigation insights.
What's the difference between 50 kHz and 200 kHz on this unit?
50 kHz offers wider coverage for deep water bottom tracking, while 200 kHz provides finer resolution for shallow-water details and fish arches.
How much does it protrude below the hull?
Only 5mm, making it one of the lowest-profile thru-hull options to reduce drag and improve high-speed performance.
Is installation DIY-friendly for experienced boaters?
Absolutely—requires a thru-hull hole, sealant, and basic wiring, but always verify compatibility with your display first.
Can it handle rough offshore conditions?
Yes, the stainless steel build resists corrosion and impacts, performing reliably in choppy seas and saltwater exposure.
What's the cable length and connector type?
10 meters of cable with a 9-pin black connector, suitable for most console-to-transom runs.
12° titled version is designed for 8° - 15° deadrise angles
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Stainless Steel Housing
- 9 Pin Connector
- 10M Cable
Simrad SS60 stainless steel 600 W through the hull 50200 Khz depth temperature (12 tilt) model 000 13785 001 to calculate the depth of the water in order to avoid slipping on the ground, at the same time...
Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable Related Products
Propspeed Foulfree Foul-Release Transducer CoatingFrequently Asked Questions (FAQ) About Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable
Who is the Navico?How to describe Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable?
How many pins exists in the connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable?
This product can read the temprature?
What is the length of cable (feet)?
Who is the Navico?
How to describe Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable?
How many pins exists in the connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable?
This product can read the temprature?
What is the length of cable (feet)?
Buy with the best price Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable for only $478 from NVN Marine! Same day shipping before 3pm.
Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Navico |
| Weight: |
4.4 lb |
| Speed Included: |
No |
| Pins: |
9 |
| Mounting Style: |
Thru-Hull |
| Cable Length (Feet): |
10m |
| Temperature: |
Yes |
| Product Brochure: |
Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable User Reviews
Navico XSONIC SS60 12° Tilted Element Thru Hull - 9-Pin Connector - 10M Cable Shipping & Return
| Shipping Weight: |
4.4 lb |
|---|---|
| Box Sizes: |
4.00 (h) x 8.00 (w) x 10.00 (l) |
| Cubic Feet: |
320.0 |
| Returnable: |
Yes |
