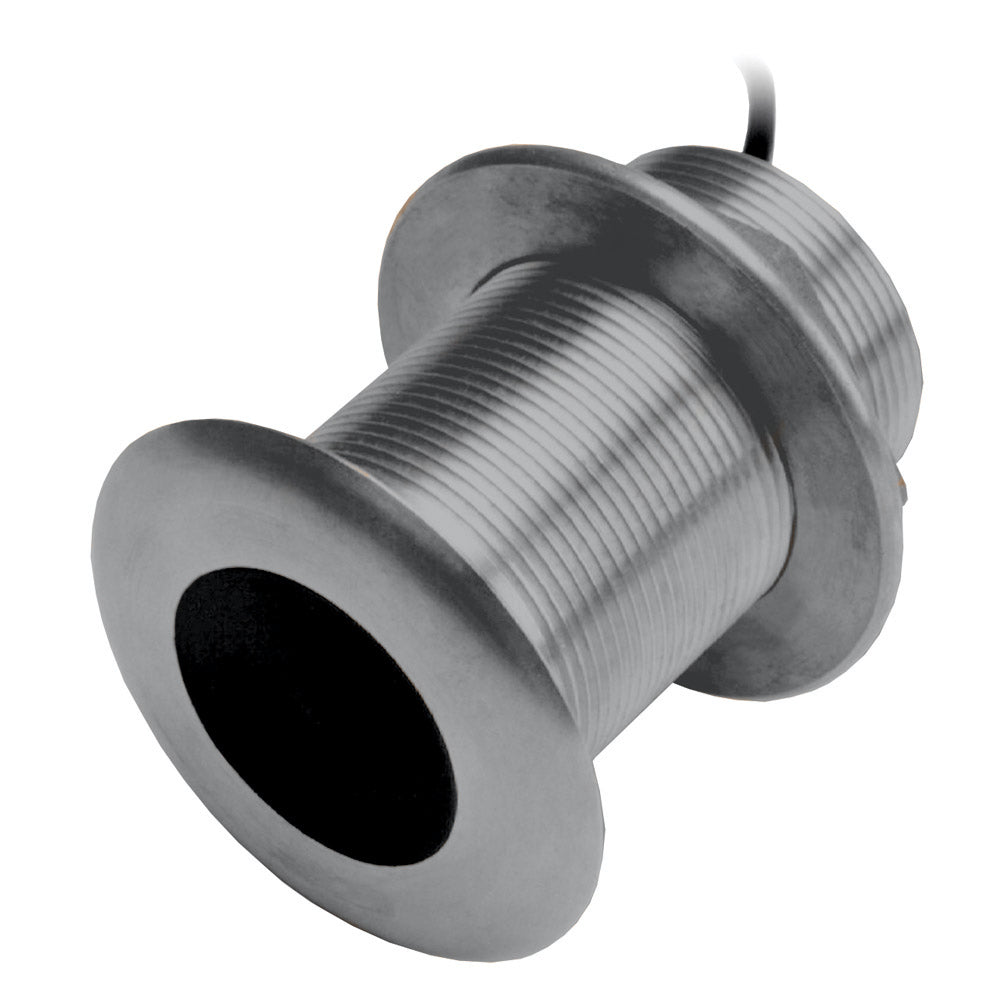

Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel

SKU: 65062 - UPC: 9420024162651 - MPN: 000-13910-001
$655.99 $879.00 ( / )

Available Stock : 24

The SS75M is a stainless steel, thru-hull CHIRP transducer, ideal for sport fishing and commercial vessels up to 25 Feet in length. This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.Simrad 0013910001 Attributes Mounting...
Navico
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel Product Description

The SS75M is a stainless steel, thru-hull CHIRP transducer, ideal for sport fishing and commercial vessels up to 25 Feet in length. This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.

Simrad 0013910001 Attributes

  • Mounting Location: Thru-Hull Mount
  • Number Of Pins: 9 Pin
  • Frequency Range: 80-130 kHz Medium Frequency Single Channel CHIRP Transducer
  • Supported Angle: 20 Degree Tilt/ 16 To 24 Degree Deadrise
  • Cable Length: 33 Feet

Simrad 0013910001 Features & Benefits

  • Constructed From Stainless Steel
  • Ideal For Sport Fishing And Commercial Vessels Up To 25 Feet In Length
  • Single-Channel Transducer Offers Medium CHIRP For A Balance Between The Great Depth Penetration Of Low CHIRP
  • Superior Target Resolution Of High CHIRP
  • Limited 2 Year Warranty

Simrad 0013910001 Warranties


XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel

The SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Medium Frequency: CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.

The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.

It provides an intermediate frequency of 80-130kHz, and records depth and temperature. The ceramic element is tilted to achieve built-in dead angle compensation, so as...

Lowrance 10EX-BLK 9-pin Extension Cable f/LSS-1 or LSS-2 Transducer


Frequently Asked Questions (FAQ) About Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel

Who is the Navico?
How to describe Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel?
What is the type of the product?
What is the working frequency of the product?
How many pins exists in the connector of the product?
What is the material of Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel?
What is the sonar type of the product?
What is the maximum depth of the product?
Speed feature included to the product?
What is the mount type of the product?
How to mount or what is the mounting style of Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel?
This product can read the temprature?
What is the length of cable?
What is the connection interface of product?
What is the length of cable (feet)?
Is this product supporting CHIRP and what's the type?
What is the beam metrics for this product?
What is the deadrise angle of product?
What is the transmit power of the product?

Who is the Navico?

Navico is the leader in marine electronics and is currently the world's largest marine electronics company. Navico is the parent company to leading marine electronics brands: Lowrance, Simrad, B&G and C-MAP. Navico has approximately 1,500 employees globally and distribution in more than 100 countries. Navico partners with a talented, global supplier network to deliver quality products to its customers.

How to describe Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel?

It provides an intermediate frequency of 80-130kHz, and records depth and temperature. The ceramic element is tilted to achieve built-in dead angle compensation, so as...

What is the type of the product?

Thru-Hull
  • Same elements and performance as the B765M offered in a low-profile housing
  • Depth and fast-response water temperature sensor
  • Cable Length: 33'
  • Monitors: Depth and temperature
  • Hull Deadrise Range: 20° to 24°
  • Material: Stainless steel
  • Acoustic Window: Urethane
  • Connector: 9-pin xSonic
  • Transmit Power: 600W (RMS)
  • Frequency Range: Medium CHIRP (80-130kHz)
  • Max. Depth: 900'
  • Beamwidth: 24° to 16°
  • CHIRPS from 80kHz to 130kHz with 24° to 16° beamwidth
  • 50kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies 88 and 107kHz plus everything else in the bandwidth
  • All the advantages of the larger thru-hull Chirp transducers, but is suitable for smaller boats
  • Stainless steel transducer housing
  • Boat Size: Up to 25'
  • Hull Type: Steel or aluminum
  • Style: Thru-hull

What is the working frequency of the product?

85kHz-135kHz Medium CHIRP

How many pins exists in the connector of the product?

9

What is the material of Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel?

Stainless Steel

What is the sonar type of the product?

Single Channel CHIRP

What is the maximum depth of the product?

1500 Feet Medium CHIRP

Speed feature included to the product?

No

What is the mount type of the product?

Thru-Hull Flush

How to mount or what is the mounting style of Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel?

Thru-Hull

This product can read the temprature?

Yes

What is the length of cable?

33 Feet

What is the connection interface of product?

9 Pin xSonic

What is the length of cable (feet)?

10m

Is this product supporting CHIRP and what's the type?

Medium

What is the beam metrics for this product?

24 to 16 Degrees Medium CHIRP

What is the deadrise angle of product?

20 to 24 Degree

What is the transmit power of the product?

600 Watts


Save $223 when you buy the Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel for only $655 from NVN Marine! Same day shipping before 3pm.

Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Navico

Weight:

6.0 lb

Temperature:

Yes

Speed Included:

No

Pins:

9

Chirp:

Medium

Mounting Style:

Thru-Hull

Cable Length (Feet):

10m

Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel User Reviews

Navico XSONIC SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel Shipping & Return

Shipping Weight:

6.0 lb

Box Sizes:

5.00 (h) x 8.00 (w) x 12.00 (l)

Cubic Feet:

480.0

Returnable:

Yes
