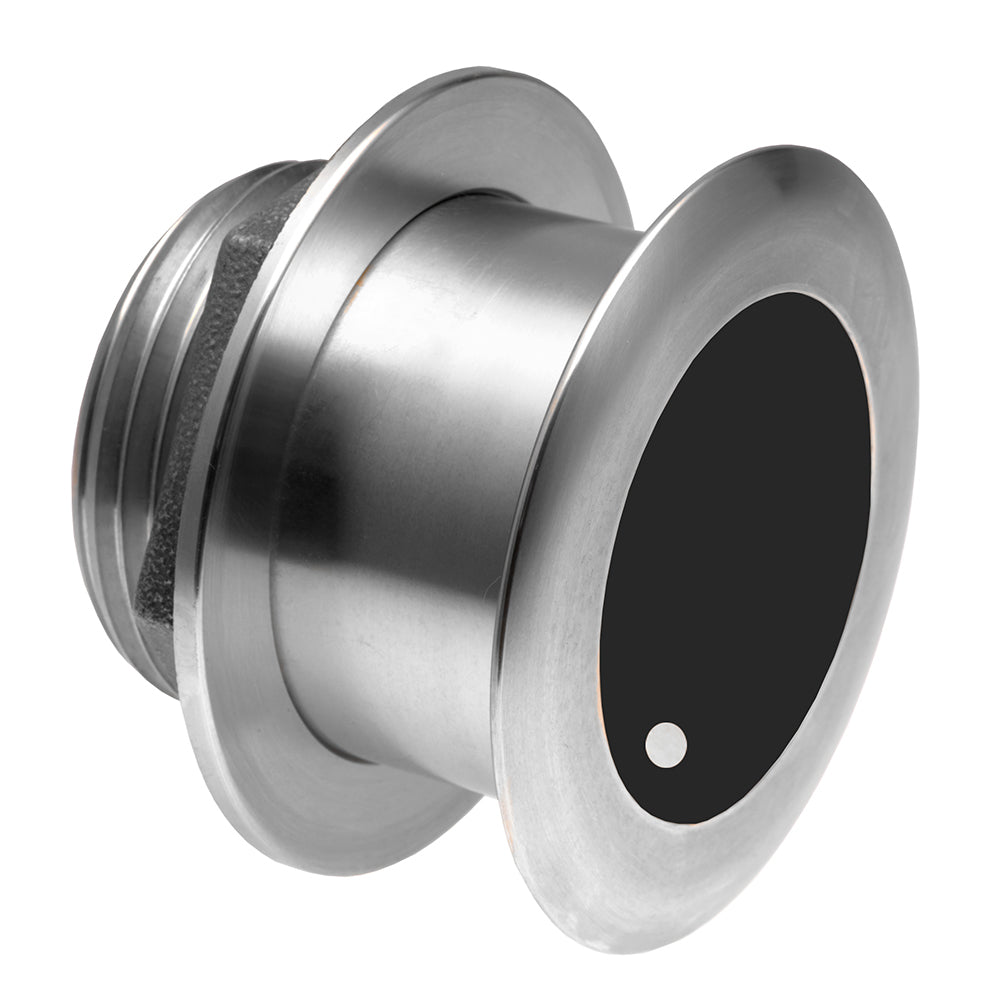

Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin
Free Ground Shipping (2-6 Days Delivery Time)
It will be shipped by UPS Ground.
Shipping (3PM)
Within 30 days
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin Product Description
Upgrade your sonar game with the XSONIC SS175H-W/20, a powerhouse stainless steel thru-hull transducer engineered for serious anglers chasing fish in shallow to mid-depth waters. This 1kW CHIRP beast sweeps the 130-210 kHz high-frequency range with a generous 25-degree wide beam, delivering crystal-clear images that separate baitfish clouds from trophy targets and reveal hidden structures like never before. Its 20-degree tilted element perfectly aligns with hull deadrises from 16 to 25 degrees, ensuring maximum signal strength without the hassle of fairing blocks.
Built tough from marine-grade stainless steel, it thrives on fiberglass, wood, steel, or aluminum hulls up to 36 feet. Whether you're drift fishing reefs, trolling offshore edges, or navigating murky bays, this transducer cuts through the noise for depths down to 1,000 feet, plus reliable water temperature readings. Paired with the 33-foot cable and black 9-pin connector, it's a seamless fit for modern multifunction displays, turning guesswork into precision hunting.
Standout Performance Features
- High-Frequency CHIRP Magic: 130-210 kHz single-channel operation with constant 25-degree beamwidth for superior shallow-water coverage and fish-holding detail—spot schools, wrecks, and bottom contours with 5-10x the resolution of standard sonar.
- Low-Profile Tilted Design: 20-degree tilt eliminates dead zones, optimizing beam projection on common hull angles without extra hardware.
- Deep Diving Capability: Reliable bottom tracking to 1,000+ feet, ideal for coastal explorers pushing limits.
- Integrated Sensors: Analog/digital temperature probe for real-time water data, essential for thermocline hunting and bait deployment.
- Exclusive XID Technology: Plug-and-play identification for instant transducer recognition on compatible units, speeding setup.
- Rugged Construction: Corrosion-resistant stainless steel housing withstands harsh saltwater punishment.
Real-World Advantages for Boaters
Anglers swear by the SS175H-W/20 for its knack at picking out individual fish in dense schools—think walleye amid perch or snapper near lobster traps. The wide beam shines in 10-200 foot depths, where narrow high-speed beams fall short, giving you more screen real estate packed with actionable intel. On deadrise-matched hulls, it beams straight down without distortion, boosting signal-to-noise ratios for cleaner arches and harder returns.
Effortless Installation Tips
Drill a clean 3-inch hole, bed in polyurethane sealant, and torque to spec—done in under an hour for most. No fairing needed thanks to the tilt; just ensure the hull is flat within the beam path. Pro tip: Align the A-scope mark dead ahead for forward-facing precision. Compatible with major chartplotter brands via 9-pin, it auto-configures on boot-up.
Seamless System Integration and Longevity
This transducer syncs effortlessly with high-end fishfinders, unlocking CHIRP modes for hyper-detailed 2D sonar. Expect sharper post-processing with features like FishReveal or StructureScan when networked. For upkeep, annual freshwater rinses and silicone grease on the connector keep it humming season after season—backstopped by a solid two-year warranty.
Maintenance Essentials
- Wipe the face after every trip to shed growth.
- Inspect cable for chafe near thru-hull fittings.
- Avoid high-speed operations in foam to prevent cavitation blur.
Frequently Asked Questions
What hull types work best with the SS175H-W/20 transducer?
It's optimized for fiberglass, wood, steel, and aluminum hulls with 16-25 degree deadrise. The 20-degree tilt matches most planing hulls perfectly, avoiding signal loss from misalignment.
How deep can the XSONIC SS175H-W/20 detect targets?
Up to 1,000 feet (300m+), with peak performance in 10-500 foot ranges where the wide CHIRP beam excels at separation and detail.
Is this transducer suitable for high-speed boating?
Yes, its low-profile design and tilted element maintain strong returns at planing speeds up to 30+ knots, though best for fishing passes under 20 knots to minimize turbulence.
Does the SS175H-W/20 include temperature sensing?
Absolutely—built-in analog/digital temp sensor provides accurate surface water readings, crucial for locating bait balls and species-specific temps.
What's the cable length, and is it extendable?
33 feet (10 meters) standard. Extensions are available via DHX adapters for larger consoles, but keep runs under 50 feet total to preserve signal integrity.
Why choose CHIRP over traditional fixed-frequency sonar?
CHIRP sweeps frequencies for finer target resolution, wider coverage without range loss, and better noise rejection—turning fuzzy blobs into distinct fish IDs and structure edges.
Can I use this on a boat over 36 feet?
It's rated for up to 36 feet, but larger vessels may need stepped-up power or multiple units for full coverage. Test in shallows first for hull-specific performance.
This single-channel transducer high frequency CHIRP thru-hull transducer transmits across the 130 to 210 Kilohertz bandwidth, providing bottom detection down to 1,000 Feet. The SS175H-W provides excellent target separation, making it easy distinguish baitfish from game fish and structure. The 20 Degree tilt is ideal for boats with a 20 Degree to 24 Degree hull deadrise. Ideal for boats up to 10 Meter in length.
Simrad 0013782001 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 9 Pin
- Depth: 1000 Feet
- Frequency Range: 130-210 kHz High Frequency Single Channel CHIRP Transducer (Wide Angle)
- Supported Angle: 20 Degree Tilt
- Cable Length: 33 Feet
Simrad 0013782001 Features & Benefits
- Provides Excellent Target Separation, Making It Easy Distinguish Baitfish From Game Fish And Structure
- Black 9 Pin Connector
- Cable Length 10 Meter
- Easy To Install
- Limited 2 Year Warranty
Simrad 0013782001 Warranties
XSONIC SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25° constant beamwidth
- 16° - 25° Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
The xSonic SS175H-W high-frequency CHIRP through-hull transducer can transmit in the 130-210 kHz bandwidth range, providing bottom detection capabilities as low as 1,000 ft.
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin Related Products
Airmar 175WR-4 Wrench For B164 and B175 TransducersFrequently Asked Questions (FAQ) About Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin
Who is the Navico?How to describe Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin?
How many pins exists in the connector of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin?
This product can read the temprature?
What is the length of cable (feet)?
What is the length of cable?
Who is the Navico?
How to describe Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin?
- XSONIC SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
- SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to
- Detect the most minute details such as fish, coral, and other sea life.
- Comes with a 9 pin connector for easy installation.
- XSONIC SS175H-W/20 Stainless Steel Chirp Transducer is a high-performance, low-cost solution for long range bottom detection.
- The SS175H-W/20 Chirp Transducer features a 20° Tilted Element and 9 Pin Connector.
- The SS175H-W/20 Chirp Transducer is designed to enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution than conventional transducers.
Navico XSONIC is the world's first CHIRP thru-hull fishfinder with a tilting element for better fish targets. It has an excellent range, up to 310 meters (1000 feet) in depth, and a 25 degree tilted element for better fish detection. The Navico XSONIC is perfect for fishing boats of all sizes and types.
How many pins exists in the connector of the product?
- XSONIC SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
- SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to
- Detect the most minute details such as fish, coral, and other sea life.
- Comes with a 9 pin connector for easy installation.
- XSONIC SS175H-W/20 Stainless Steel Chirp Transducer is a high-performance, low-cost solution for long range bottom detection.
- The SS175H-W/20 Chirp Transducer features a 20° Tilted Element and 9 Pin Connector.
- The SS175H-W/20 Chirp Transducer is designed to enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution than conventional transducers.
- The SS175H-W is a high-performance, fully integrated sonar with a wide beam and high CHIRP, giving you the best view under the waves.
- With a range up to 310 meters (1000 feet) and CHIRP down to 130 kHz, it's perfect for fishing enthusiasts.
- The SS175H-W is also equipped with Simrad's patented WideABeam™ technology for an ultra-wide 25° beam angle - giving you maximum coverage of your fishing area.
- Stainless steel housing for durability and corrosion resistance.
- 20 degree tilted element for better fish targeting.
- Up to 310 meters (1000 feet) range with High CHIRP.
Speed feature included to the product?
How to mount or what is the mounting style of Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin?
This product can read the temprature?
What is the length of cable (feet)?
What is the length of cable?
Buy with the best price Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin for only $1754 from NVN Marine! Same day free shipping before 3pm.
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Navico |
| Weight: |
10.5 lb |
| Temperature: |
Yes |
| Speed Included: |
No |
| Mounting Style: |
Thru-Hull |
| Cable Length (Feet): |
10m |
| Pins: |
9 |
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin User Reviews
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20° Tilted Element Transducer - 9 Pin Shipping & Return
| Shipping Weight: |
10.5 lb |
|---|---|
| Box Sizes: |
8.00 (h) x 11.00 (w) x 12.00 (l) |
| Cubic Feet: |
1056.0 |
| Returnable: |
Yes |
