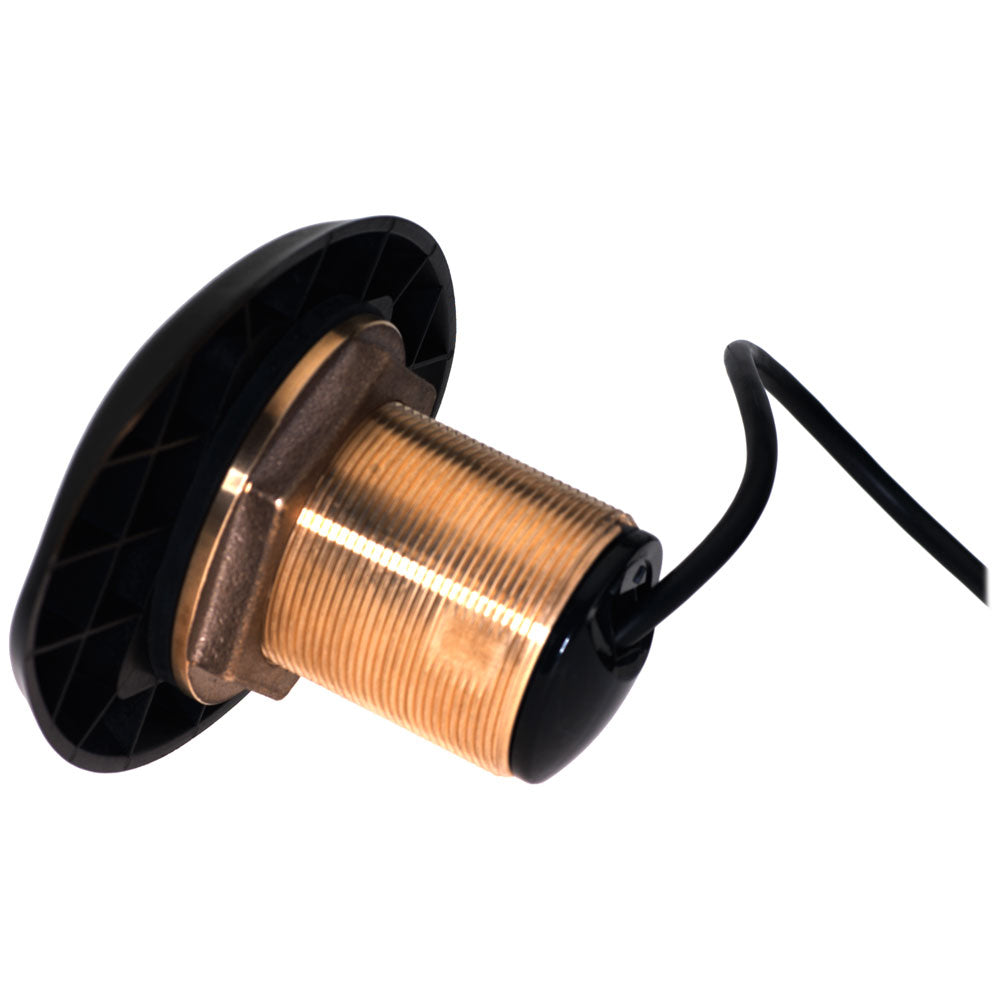

Navico XSONIC Bronze HDI 0° Tilt 50/200 455/800 Thru Hull with 9 Pin Connector and 10M Cable

Discover Superior Underwater Imaging with Bronze HDI Thru-Hull Transducer

Upgrade your marine electronics setup with this robust bronze thru-hull transducer designed for serious boaters and anglers. Engineered for seamless integration, it delivers crystal-clear views of the underwater world by combining traditional CHIRP sonar frequencies with high-resolution DownScan Imaging. Whether you're navigating shallow waters or hunting fish in deeper zones, this 0° tilt model ensures reliable performance without the fuss of complex adjustments.

Crafted from durable bronze, it withstands harsh marine environments while providing accurate temperature readings alongside sonar data. The low-profile design minimizes drag, making it ideal for displacement hulls and sailboats where a flush mount is essential.

Key Features That Set It Apart

• Hybrid Dual Imaging (HDI) Technology: Merges 50/200 kHz CHIRP for wide-area coverage and deep water scanning with 455/800 kHz DownScan for photo-like structure and baitfish details.
• 0° Tilt Design: Perfect for flat hull bottoms, offering straightforward installation and optimal beam projection straight downward.
• Integrated Temperature Sensor: Tracks water temperature changes to help identify thermoclines and fish-holding zones.
• 9-Pin Connector: Plugs directly into compatible chartplotters and fishfinders for plug-and-play convenience.
• 10-Meter Cable Length: Provides ample reach for routing through your vessel without signal loss.

Performance Specs at a Glance

These specs translate to exceptional target separation and bottom tracking, helping you spot wrecks, reefs, and schools of fish with precision.

Why Boaters Choose This Thru-Hull Transducer

In real-world use, this transducer shines by reducing noise from hull slap and prop wash compared to transom mounts. The CHIRP capability automatically adjusts frequencies for optimal performance across depths up to thousands of feet, while DownScan reveals hidden details like individual fish and submerged vegetation that traditional sonar might miss.

Anglers report easier lure tracking and bait ball detection, leading to more productive days on the water. Its corrosion-resistant bronze construction ensures longevity in saltwater, and the 0° tilt simplifies fairing block needs for most hulls.

Effortless Installation Tips

Installing a thru-hull transducer requires care, but this model's design keeps it simple:

1. Select a spot forward of the prop, amidships, where the hull is flattest.
2. Drill a precise hole using the included template, seal with marine sealant.
3. Secure the transducer flush to the hull exterior.
4. Route the 10M cable neatly, avoiding heat sources and sharp edges.
5. Enable the transducer in your unit's installation menu for instant operation.

Pro tip: Test in a water tank before full deployment to verify no air bubbles interfere with readings.

Compatibility and Versatility

This HDI transducer pairs seamlessly with a range of marine multifunction displays supporting CHIRP and DownScan technologies. It's a go-to for vessels needing permanent, high-performance sonar without compromising hull integrity.
