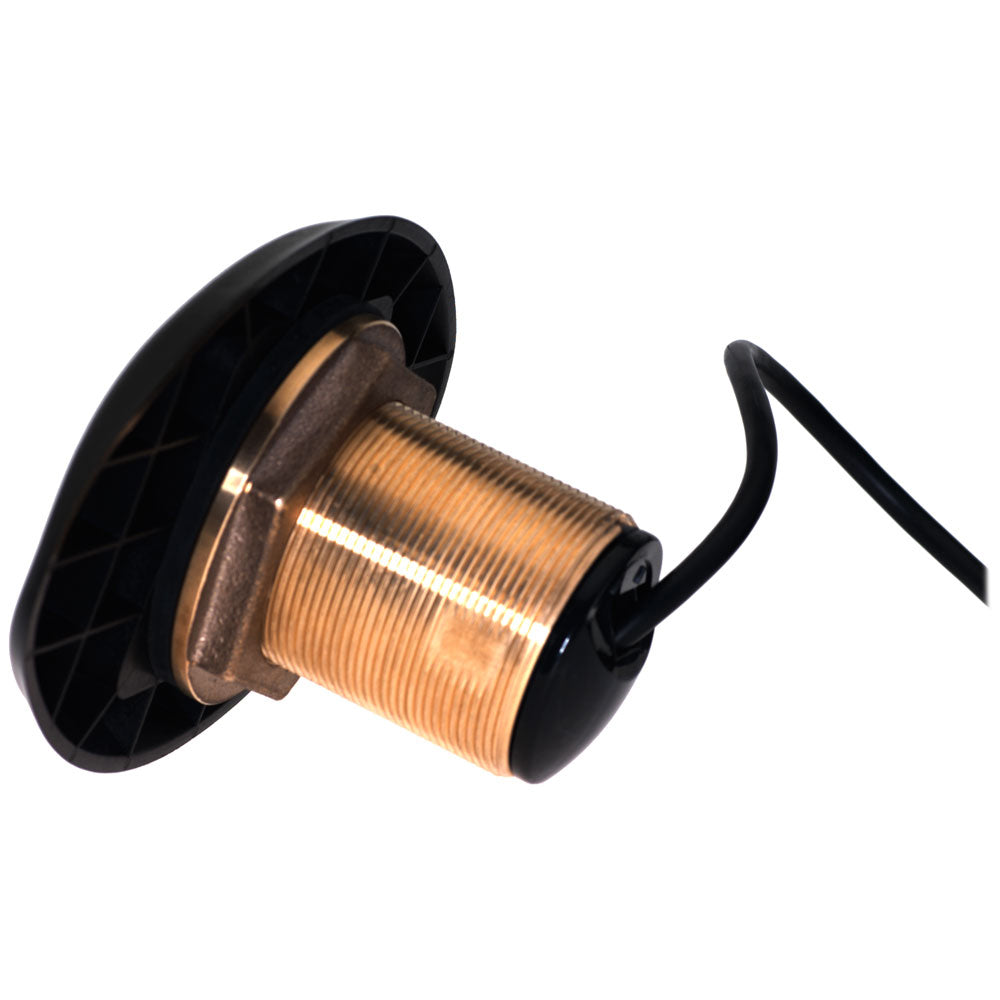

Navico XSONIC Bronze HDI 12° Tilt 50/200 455/800 Thru Hull with 9 Pin Connector and 10M Cable

Discover the power of crystal-clear underwater imaging with this premium bronze thru-hull transducer designed for serious boaters and anglers. Engineered for vessels navigating saltwater environments, it delivers Hybrid Dual Imaging (HDI) technology that combines traditional CHIRP sonar with high-definition DownScan Imaging. Whether you're tracking fish in deep waters or mapping out submerged structures, this transducer elevates your sonar experience to professional levels.

Advanced Sonar Capabilities for Superior Performance

This thru-hull mount transducer operates across multiple frequencies: 50/200 kHz for broad CHIRP coverage in traditional sonar mode, plus 455/800 kHz for DownScan Imaging that reveals astonishing detail of the bottom contour, wrecks, and bait schools. The built-in temperature sensor provides real-time water temp data, essential for locating thermoclines where fish congregate.

Key technical highlights include:

• 12° Tilt Design: Optimizes beam angle for hulls with moderate deadrise, ensuring the transducer face remains perpendicular to the water flow for maximum efficiency and minimal air bubble interference.
• Beam Widths: Expansive 45° at 50 kHz for wide-area searches, focused 11° at 200 kHz for precise targeting, and ultra-detailed narrow beams at higher DownScan frequencies (455 kHz: 2.8° fore-aft / 56° port-starboard; 800 kHz: 1.6° fore-aft / 32° port-starboard).
• Robust Bronze Construction: Corrosion-resistant material withstands the punishing saltwater conditions, delivering reliable performance season after season.
• 9-Pin Connector with 10-Meter Cable: Plug-and-play compatibility with select marine electronics, offering ample length for clean routing through your vessel's hull and console.

Unlike basic transducers, the HDI fusion means you get the best of both worlds—no need to switch modes or compromise on resolution. CHIRP provides smooth, noise-free returns for accurate depth readings up to thousands of feet, while DownScan paints photo-like images of what's below, helping you spot fish hiding in cover that traditional sonar might miss.

Why Boaters Trust This Transducer in Demanding Conditions

Crafted for high-performance marine use, this unit shines in rough seas and extended offshore trips. The low-profile design minimizes drag, preserving your boat's speed and fuel efficiency. Installation is straightforward for DIY enthusiasts or pros—flush-mount it through the hull, fair it properly, and you're ready to scan.

Real-world benefits include:

• Enhanced Fish-Finding: Pinpoint species-specific targets with CHIRP's variable pulse lengths, then zoom in with DownScan for separation from structure.
• Structure Scanning Excellence: Ideal for reef hopping, wreck fishing, or bottom bouncing, where high-frequency imaging uncovers ledges and drop-offs invisible to standard sonar.
• Versatile Applications: Perfect for center-console boats, sportfishers, or yachts with thru-hull setups, supporting everything from coastal trolling to bluewater adventures.
• Durability Edge: Bronze housing laughs off electrolysis and marine growth, backed by a solid warranty for peace of mind.

Anglers report game-changing results: separating individual fish in tight schools, identifying bottom hardness for jigging spots, and even navigating shallow flats with confidence thanks to the tilt compensation.

Installation Insights for Optimal Results

Selecting the right thru-hull location is crucial—aim for forward-facing, below the waterline at rest and planing speeds, away from strakes or prop wash. Use a fairing block to match your hull's deadrise and the 12° tilt ensures the beam shoots straight down. After mounting, calibrate via your display's menu to recognize the transducer type. Pro tip: Anti-fouling paint on the face keeps it clean longer in fouled waters, extending peak performance.

For best CHIRP results, pair with a unit that supports Medium/High CHIRP bands. DownScan thrives at slower speeds, so toggle modes based on your pursuit—wide CHIRP for searching, high-res DownScan for marking waypoints.

Unlock Deeper Insights with HDI Technology

Hybrid Dual Imaging isn't just buzzwords; it's a seamless blend that overlays sonar returns for clutter-free views. Imagine seeing a wreck in CHIRP arc mode, then switching to DownScan side-by-side for texture details—fish hugging the structure pop out vividly. The temperature probe adds another layer, helping predict baitfish movements tied to water column shifts.

This transducer empowers skippers to make informed decisions: adjust lure depth on the fly, avoid no-fish zones, or safely anchor over prime structure. It's a staple for tournament pros chasing billfish or bottom dwellers alike.

Frequently Asked Questions

Equip your vessel with this reliable workhorse and transform how you interact with the underwater world. From casual outings to competitive fishing, it consistently delivers the edge you need.
