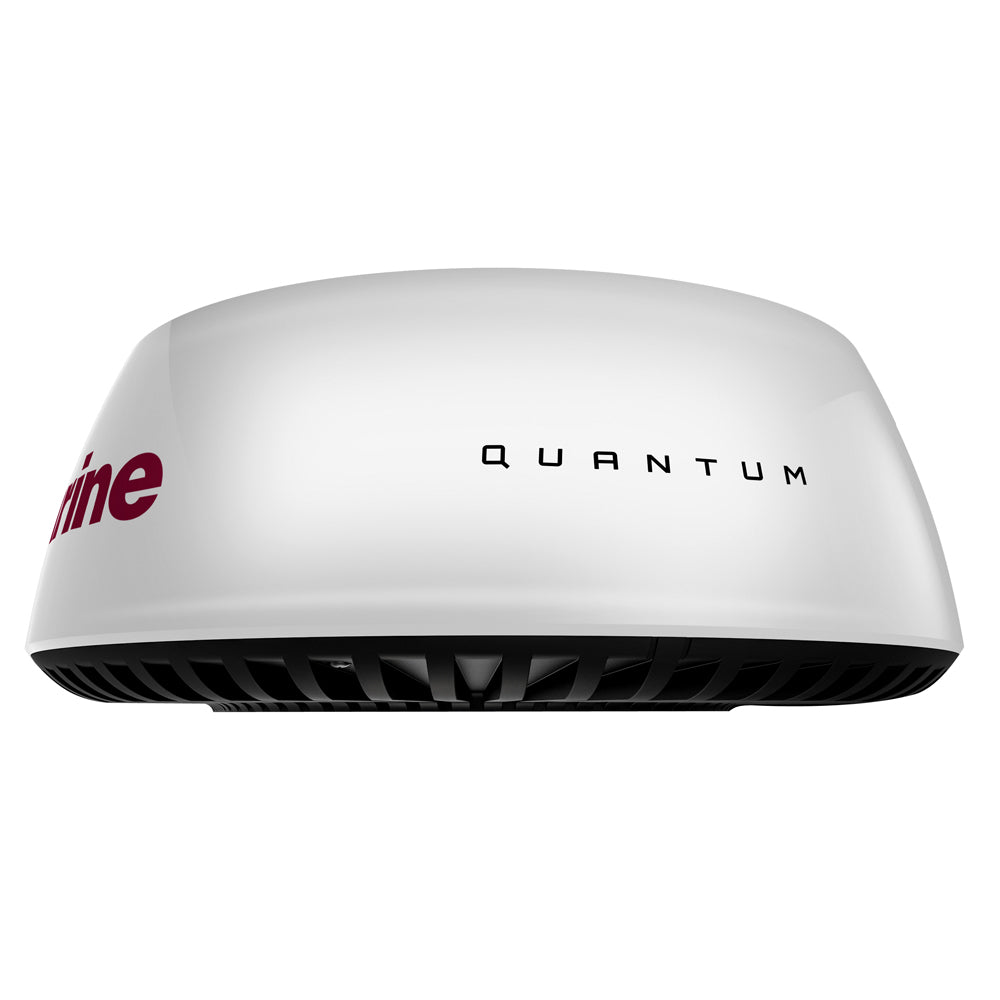

Raymarine Quantum Q24C Radome w/Wi-Fi, 15M Ethernet Cable & Power Cable

Raymarine Quantum Q24C Radome w/Wi-Fi, 15M Ethernet Cable & Power Cable Product Description

Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Raymarine T70266 Attributes

• Radar Type: Radome
• Size: 18 Inch Dome
• Range: 24 Nautical Miles
• Rotation Speed: 24 RPM
• Power Output: 17 Watt
• Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
• Input Voltage: 12 Volt To 24 Volt
• Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
• Color: White
• Waterproof Rating: IPX6 Rating Waterproof
• Includes: Mounting Hardware/ 15 Meter Power Cable And Data Cable

Raymarine T70266 Features & Benefits

• Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
• CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
• Broad Usage Applications, Quantum Is Perfect For Sailboats, Ribs And Smaller Powerboats
• Superior Interference Rejection Eliminates Noise From Other Radars
• Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
• Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
• Safe Emissions: Mount Quantum Anywhere Onboard
• Simplified Installation And Can Utilize Existing Cables (With An Adapter) If Being Used As An Upgrade
• Limited 2 Year Warranty

Raymarine T70266 Installation Instructions

• Quantum Radome Installation instructions 87209-8-EN.pdf

Raymarine T70266 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine T70266 Technical Bulletins

• Quantum Radome Installation instructions 87209-8-EN.pdf
• Quantum Radar E70210 3D PDF.PDF
• Quantum Radar E70210 3D PDF.PDF

Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 15M Power & 15M Data Cable Included

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging
FLIR's exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.

CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.

Small Target Detection
Quantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.

Energy Efficient & Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail.

Raymarine's 18-inch dome radar CHIRP Raymarine's Quantum Q24C radar not only provides excellent radar imaging performance, but also because of its simplified installation method, it is the first choice in Dome radar,...
