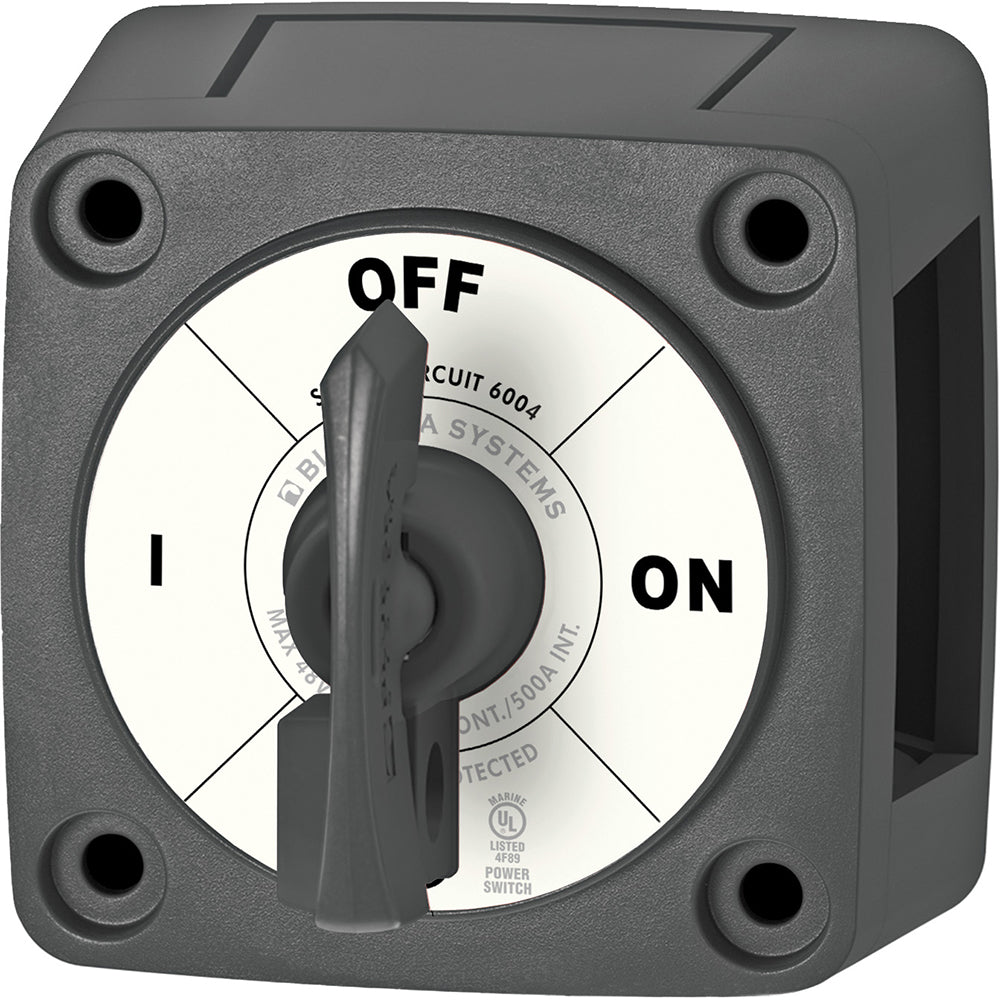

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black

SKU: 64358 - UPC: 632085600426 - MPN: 6004200
$26.49 $44.19 ( / )

Available Stock : 9

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.Blue Sea 6004200 Attributes Type: Single Circuit ON-OFF Activation Type: Manual Continuous Ampere Rating (A): 300 Amp Surge Ampere Rating (A): 500 Amp...
Blue Sea Systems
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black Product Description

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6004200 Attributes

  • Type: Single Circuit ON-OFF
  • Activation Type: Manual
  • Continuous Ampere Rating (A): 300 Amp
  • Surge Ampere Rating (A): 500 Amp
  • Installation Type: Bolt-On

Blue Sea 6004200 Features & Benefits

  • Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
  • One-Piece Terminal Stud Design Never Loosens Over Time
  • One Piece Stainless Flange Nut Ensure Safe And Secure Connections
  • Isolating Cover Protects Rear Contacts
  • Breakout Tabs Allow Wire Access In Any Direction
  • No Supplier Warranty

Blue Sea 6004200 Installation Instructions

Blue Sea 6004200 Technical Bulletins


Single Circuit ON-OFF with Locking Key - Black

300 Amps continuous rating for outboards and small gasoline or diesel engines
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • One-piece stainless flange nuts ensure safe and secure connections
  • Isolating cover protects rear contacts
  • Breakout tabs allow wire access in any direction


Specifications:
  • Switch Type: Single Circuit ON-OFF
  • Color: Black
  • Maximum Voltage: 48V DC
  • Continuous Rating: 300A
  • Intermittent Rating: 500A
  • Cranking Rating 30 sec: 900A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



Mini battery switch, MFG#6005, black, continuous 300A, internal 500A, 48VDC. Location: Single circuit switch. 2.83 high x 2.83 watts x 3.1 inches tab with padlock.

Blue Sea 7903200 Battery Switch Key Lock Replacement - Black


Frequently Asked Questions (FAQ) About Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black

Who is the Blue Sea Systems?
How to describe Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black?
What is the type of the product?

Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black?

Mini battery switch, MFG#6005, black, continuous 300A, internal 500A, 48VDC. Location: Single circuit switch. 2.83 high x 2.83 watts x 3.1 inches tab with padlock.

What is the type of the product?

Single Circuit ON-OFF


Save $17 when you buy the Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black for only $26 from NVN Marine! Same day shipping before 3pm.

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black Technical Specifications

Type:

Electrical | Battery Management

Vendor:

Blue Sea Systems

Weight:

0.65 lb

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black User Reviews

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black Shipping & Return

Shipping Weight:

0.65 lb

Box Sizes:

4.00 (h) x 4.00 (w) x 7.00 (l)

Cubic Feet:

112.0

Returnable:

Yes

P65:

Yes
