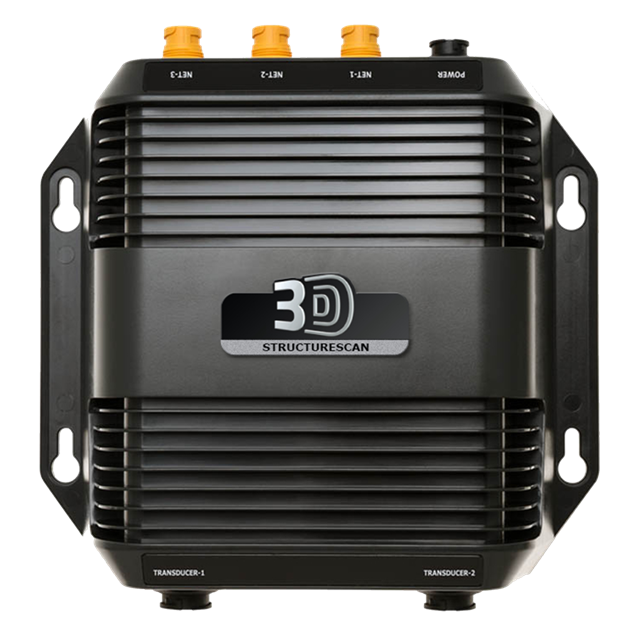

Navico StructureScan 3D Module - No Ducer Product Description
Imagine gliding over a hidden underwater world where every ridge, drop-off, and fish-holding hideout springs to life in vivid 3D. That's the game-changing advantage the StructureScan 3D module brings to serious anglers chasing bass in shallow bays or walleye along deep ledges. Without a transducer included, this module pairs seamlessly with compatible StructureScan 3D transducers, transforming your Simrad or Lowrance multifunction display into a portal for unprecedented sonar clarity.
Unlock Crystal-Clear 3D Underwater Mapping
Powered by advanced multi-beam sonar at 455/800 kHz, this module scans up to 300 feet on either side of your boat, painting a 180-degree panoramic view that's not just flat images—it's fully rotatable 3D terrain. Spot suspended fish darting near structure or subtle bottom changes that traditional 2D sonar misses. Anglers report doubling their catch rates in unfamiliar waters because they can finally "see" how fish relate to cover, like pinpointing that wreck or weed edge where big ones ambush prey.
Key Features That Put You Ahead of the Competition
- Pan, Tilt, and Rotate Freedom: Dial in the exact viewpoint with intuitive controls or preset angles—perfect for scouting from multiple perspectives without moving your boat.
- Leading Edge Scanning: Real-time graphical overlay shows your sonar beam's sweep, with color-coded depth markers to gauge targets instantly.
- SelectScan Target Highlighting: Auto-shades fish arches and structure in contrasting colors, cutting through clutter for faster decisions.
- Vertical Enhancement: Amplifies even minor depth shifts, revealing ledges and humps critical for trolling patterns or jigging spots.
- 3D Waypoint Overlays: Drop virtual markers right on hotspots, making return trips a breeze—no more guessing coordinates.
- Enhanced SideScan and DownScan: Blends high-def 2D views with 3D for hybrid insights, plus bonus CHIRP sonar capabilities for broader coverage.
Superior Performance Specs for Demanding Conditions
| Specification | Details |
|---|---|
| Output Power (StructureScan) | 500W RMS |
| Max Side Range | 300 feet each side |
| Frequency | 455/800 kHz |
| Ethernet Ports | Up to 3 for networking |
| Dimensions | 7.1" L x 8" W x 2" H |
| Waterproof Rating | IPX7 |
| Power Input | 12/24V DC |
Effortless Integration and Pro Tips for Peak Performance
Plug-and-play Ethernet connectivity makes setup straightforward—network it to your existing Simrad NSS evo2, NSO evo2, or Lowrance HDS Gen3 displays. Mount the module in a dry console spot, route cables neatly to avoid snags, and calibrate transducers for hull-specific deadrise angles. Pro anglers swear by pairing it with a forward-facing transducer for live bait presentations, revealing thermoclines and bait balls that trigger strikes. Regular firmware updates keep it cutting-edge, and its rugged build handles rough seas without flinching.
What's Included for Quick Setup
- StructureScan 3D Module
- Power cord
- 15' Ethernet cable
Frequently Asked Questions
Equip your rig with this module and turn guesswork into precision fishing. Whether tournament hunting or weekend warrior-ing, the insights from StructureScan 3D will have you hooking more fish, faster.
The StructureScan (R) 3D module works with any of our StructureScan 3D transducers to create a high resolution, three dimensional view beneath the surface. Immediately see where fish and structure are located in relation to your boat, with a picture-like view you can easily pan, tilt, and rotate for the perfect perspective. Explore Fish-Holding Structure in 3D: StructureScan 3D takes the guesswork out of interpreting bottom details, letting you see underwater terrain and fish-holding structure as it really is. Explore beneath your boat from easy pre-set viewpoints, or take total control to pan, tilt, and rotate your view for the perfect underwater perspective. Customize your view to highlight suspended fish targets, emphasize bottom contours, and apply other enhancements to help you find the fish or structure you’re searching for. Super-Wide, High Definition Scanning: The StructureScan 3D module and transducer offer super-wide SideScan sonar coverage, reaching up to 180 Meter to each side of your boat. High-definition scanning delivers detailed 3D imagery, plus enhanced performance in classic SideScan and DownScan Imaging ™ views. Combine 3D imagery with these enhanced StructureScan (R) HD views to gain new insights and search fishing areas more effectively.
Simrad 0012397001 Attributes
- Size: 7.1 Inch Length X 8 Inch Width X 2 Inch Height
- Frequency: 455/800kHz
- Waterproof: IPX7 Rating Waterproof
Simrad 0012397001 Features & Benefits
- Explore Underwater Terrain And Fish-Holding Structure In 3D
- Instant Results With Easy Pre-Set Viewpoints
- Pan, Tilt, And Rotate For The Perfect Perspective
- Super-Wide, High Definition Scanning Delivers New Insights
- Combine 3D With Classic SideScan And DownScan Imaging ™ Views
- Easy Plug-And-Play Upgrade Or Install
- Choose From A Range Of Transducer Options To Suit Your Boat
- Limited 2 Year Warranty
Simrad 0012397001 Installation Instructions
Simrad 0012397001 Warranties
StructreScan® 3D Module - No Ducer
Powered by multi-beam sonar technology, StructureScan 3D produces images of underwater terrain and targets in stunning, high-resolution, 180°, 3-dimensional views.
StructureScan 3D sidescan imaging reveals underwater terrain and fish-holding structure to create a super-wide, 180°, 3-dimensional view beneath your boat. The exclusive 3-dimensional views can only be displayed on the Lowrance HDS Gen3 fishfinder/chartplotters, Simrad NSS evo2 and NSO evo2 navigational systems.
Features:
- Easy-to-Understand Sonar Images-Leading Edge™ scanning reference provides clear graphical illustration of sonar beams
- ScanTrack™ allows viewing of 3D images from any angle with pan-tilt-rotate control
- Increased SideScan Range and Unrivaled Clarity-Scan up to 600 feet to each side of the boat with incredibly detailed, high-definition views
- Easily understand where fish and fish-holding structure are located
- Easily identify vertical drops and crucial depth changes
- Use 3D Waypoint Overlay makes it easy to revisit fishing areas, structure, and other underwater features
- SelectScan™ Target Identification-Automatically shades fishholding cover and suspended targets in a contrasting color, making target identification quicker and easier than ever before
StructureScan 3D Advantages:
3-Dimensional Views, Improved DownScan Imaging™ & StructureScan® HD
Contours below the water's surface are shown - up to 600 feet port and starboard - with incredibly detailed, high-definition views. StructureScan® 3D provides multiple views, including 2-dimensional DownScan Imaging™ and StructureScan® HD, and the realistic 3-dimensional views.
Clearest Possible SideScan Views
The StructureScan 3D transducer design has been enhanced with an increased number of sensors for greater imaging performance.
Complete Control Of Underwater Views
Using preset virtual point-of-view angles or ScanTrack™ pan-tilt-rotate control mode, you can adjust the view and perspective beneath your boat. Combine custom HD and 3D views to increase your understanding of how fish relate to cover and to search fishing areas more effectively.
The Leading Edge™ Scanning Reference Instantly Shows Coverage Area
Leading Edge provides a graphical illustration of sonar beams as they intersect with bottom contours. The most recently scanned area is represented by red fan-shaped markers directly under the boat. Leading Edge also includes a depth scale that shows greater depth detail as you zoom in, giving you a better sense of target depth.
SelectScan™ Target Identification Makes Fish Detection Easier
Automatically shades fish-holding cover and suspended targets in a color that contrasts the selected color palette, making target identification quicker and easier than ever before.
Vertical Enhancement Makes Even The Slightest Depth Changes More Visible
This feature is a user-selectable scale that applies onscreen emphasis to vertical drops and crucial depth contour changes, making them easier to identify relative to the surrounding underwater terrain.
3D Waypoint Overlay Creates A Virtual Buoy Marker
Revisiting fishing areas, structure and other underwater features is easy with the Waypoint Overlay feature. Use the waypoint keypad to save a waypoint at the boat location, or switch to cursor mode, and save a waypoint over specific targets, baitfish or cover.
Extra Ethernet Expansion
The StructureScan 3D module supports connectivity For up to 3 networked devices.
The StructureScan 3D module can be used with any of our StructureScan 3D sensors to create high-resolution 3D views under the surface. Check it out now...
