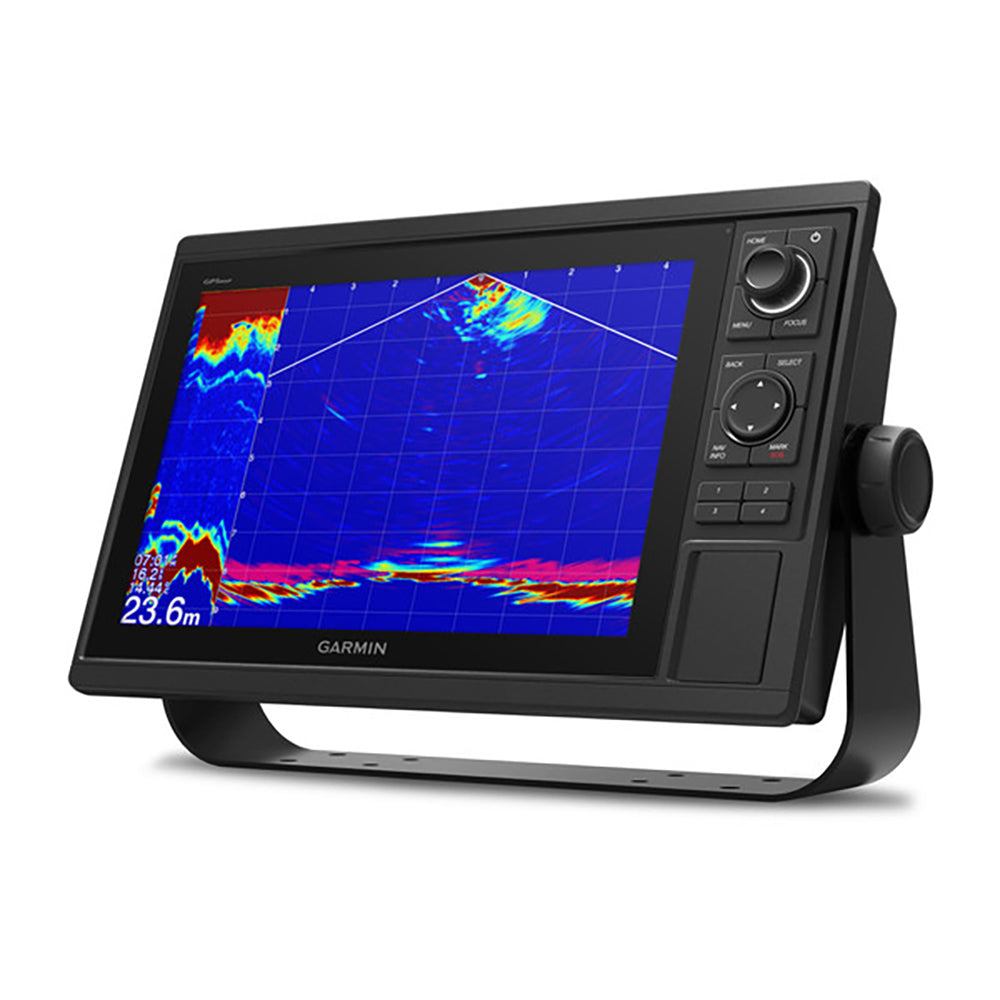

Garmin GPSMAP 1222 Keyed Networking Chartplotter - No Sonar
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
Garmin GPSMAP 1222 Keyed Networking Chartplotter - No Sonar Product Description
Discover the Power of Precision Navigation on the Water
Whether you're a seasoned cruiser charting coastal routes, a sailor optimizing every tack, or a racing skipper chasing victory, the Garmin GPSMAP 1222 delivers the reliable, high-performance navigation you demand. This 12-inch keyed chartplotter stands out with its crisp color display, intuitive keypad controls, and programmable hotkeys that let you customize access to your most-used functions. No fumbling with screens—just fluid, responsive operation even in rough seas.
Picture this: You're navigating a foggy inlet at dawn. The built-in 10 Hz GPS/GLONASS receiver updates your position and heading 10 times per second, rendering your boat's movement with silky-smooth accuracy on screen. Drop up to 5,000 waypoints effortlessly, and retrace your path with confidence, knowing every detail is pinpoint precise.
Seamless Connectivity for a Fully Integrated Boat System
Transform your vessel into a smart, interconnected hub. With dual Garmin Marine Network ports, share critical data like radar overlays, user charts, IP camera feeds, and even advanced sonar images across multiple displays. NMEA 2000 and 0183 compatibility plugs right into autopilots, VHF radios, AIS receivers, weather stations, and FUSION-Link audio systems—keeping everything synchronized without a tangle of wires.
- ANT+ Wireless: Pair effortlessly with Garmin wearables like the quatix watch or gWind Wireless 2 transducer for real-time wind data and remote control.
- Video Input: Monitor engine rooms or deck cams via the BNC port for enhanced situational awareness.
- Expandable Mapping: Dual SD card slots support premium charts like BlueChart g2 Vision HD, unlocking Auto Guidance+ for safe, automated route planning that accounts for your vessel's draft and beam.
Boaters rave about how this networking turns solo outings into command-center experiences, especially when sharing data helm-to-helm on larger yachts.
Stay Connected Anywhere with ActiveCaptain
Built-in Wi-Fi opens the door to the ActiveCaptain app, your all-in-one marine companion. Plan routes from your phone, access community-sourced Quickdraw Contours, receive smart notifications, and update software over-the-air. Sync pre-loaded trips or lake contours directly to the plotter—perfect for pre-fishing surveys or multi-day cruises.
Pro tip: Use it to crowdsource the best fishing spots from fellow boaters, then overlay them on your charts for unmatched intel on the water.
SailAssist: Gain the Edge in Every Race
For sailors, this chartplotter is a game-changer. Dive into dedicated SailAssist tools like virtual starting lines, synchronized race timers across networked units, layline predictions, and wind-maximizing data fields. Visualize true/apparent wind angles, set/drift corrections, and enhanced wind roses to shave seconds off your times.
Competitive racers appreciate the course-over-ground lines and heading overlays, which help maintain optimal VMG (velocity made good) even in shifting breezes. It's like having a tactician built into your helm.
Versatile for Cruisers, Sailors, and Beyond
Cruisers love the tide tables, GPX import for transferring routes from handhelds, and compatibility with Garmin radar and black-box sonar modules. Import tracks from other brands seamlessly, building a library of proven paths for repeat voyages. IPX7 waterproofing and rugged bail/flush mounts ensure it thrives in salt spray and pounding waves.
"Switched from an older unit— the 10 Hz refresh and networking made night-and-day difference in confidence during offshore legs." – Experienced cruiser feedback.
Detailed Technical Specifications
| Category | Details |
|---|---|
| Performance and Physical | |
| Dimensions | 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) |
| Display Size | 10.3" x 6.4" (26.2 x 16.3 cm); 1280 x 800 WXGA |
| Weight | 5.2 lbs |
| Water Rating | IPX7 |
| Power Consumption | Max 34.8 W at 10 Vdc; Typical 2.2 A at 12 Vdc |
| Maps and Memory | |
| Waypoints | 5,000 |
| Routes | 100 |
| Track Log | 50,000 points; 50 saved tracks |
| SD Card Slots | 2 |
| Connections | |
| Garmin Marine Network Ports | 2 |
| NMEA 2000 Port | 1 |
| Wireless | Wi-Fi / ANT+ |
Everything You Need for Quick Setup
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector and drop cable (2 m)
- Bail and flush mount kits
- Protective cover and trim snaps
- Full documentation
Frequently Asked Questions
Is the GPSMAP 1222 touchscreen or keyed?
It's a keyed chartplotter with a keypad interface and multifunction control knob for reliable control in wet or gloved conditions.
Does it include built-in sonar?
No, this model has no built-in sonar, but it supports external black-box sonar modules via the network.
What charts does it support?
Preloaded with none, but dual SD slots accept BlueChart g2, LakeVü HD, and Vision HD for Auto Guidance features.
Can it connect to my existing NMEA devices?
Yes, fully compatible with NMEA 2000, NMEA 0183, AIS, VHF, autopilots, and more.
Is it suitable for racing sailboats?
Absolutely—SailAssist includes laylines, race timers, wind data, and synchronized networking for team displays.
How does ActiveCaptain enhance the experience?
Via Wi-Fi, access app-based planning, community contours, notifications, and seamless chart syncing from your mobile device.
What's the GPS refresh rate?
10 Hz for ultra-smooth position and heading updates, ideal for high-speed boating.
GPSMAP 1222 Keyed Networking Chartplotter - No Sonar
12-inch Chartplotter Is All-in-1 Solution
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
- Supports optional BlueChart g2 Vision HD charts for Auto Guidance and other premium navigation features
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built-in ANT Connectivity
Enjoy built-in ANT wireless connectivity directly to quatix marine watch, Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls.
The Ultimate Connected Boating App
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Heading, Position Refreshed 10 Times per Second
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.
Upgrade to Our Best Maps on the Water
Two SD card slots provide expandable memory for accessory map purchases, such as LakeV HD, LakeV HD Ultra, BlueChart g2 HD or BlueChart g2 Vision HD, which adds Garmin patented Auto Guidance and other great features.
Built-in SailAssist Features
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
GPX Waypoints Transfer
If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product or on a Garmin handheld device it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
In The Box
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Connections
- Garmin Marine Network Ports: 2
- NMEA 2000 Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: No
- Wireless Connectivity: Yes
Auto Guidance is for planning purposes only and does not replace safe navigation operations.
iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin GPSMAP® 1222 12-inch Chartplotter Is All-in-1 Solution
Model: 010-01741-00UPC: 753759168339
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store™, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
1Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Specifications| Performance and Physical | |
| Dimensions | 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) |
| Display size | 10.3" x 6.4" (26.2 x 16.3 cm) |
| Display resolution | 1280 x 800 |
| Display type | WXGA display |
| Weight | 5.2 lbs |
| Water rating | IPX7 |
| Antenna | Internal or external over NMEA 2000 |
| NMEA 2000® compatible | Yes |
| NMEA 0183 compatible | Yes |
| SiriusXM™ Weather & Radio compatible | Yes |
| Power consumption | Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A |
| Mounting options | Bail or flush |
| Maps and Memory | |
| Preloaded maps | None |
| Accepts data card | 2 SD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes (with external black box, sold separately) |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Garmin Meteor™ Audio System compatible | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Garmin Helm compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Wireless remote compatible | Yes |
| Sonar Features & Specifications | |
| CHIRP sonar technology | Yes (with external black box, sold separately) |
| ClearVü | Yes (with external black box, sold separately) |
| SideVü | Yes (with external black box, sold separately) |
| Connections | |
| NMEA 2000® compatible | Yes |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | 1 BNC |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
GARMIN Gpsmap 1222 is brand new. GARMIN Gpsmap 1222 GPSMAP 1022 is specially designed for cruisers, sailors and sailors who need the advanced all-in-one solution provided by our 10-inch keyed chartplotter. It has a large and bright screen, as well as a fast and easy-to-use keyboard interface, user-programmable keys and multi-function control knobs.
