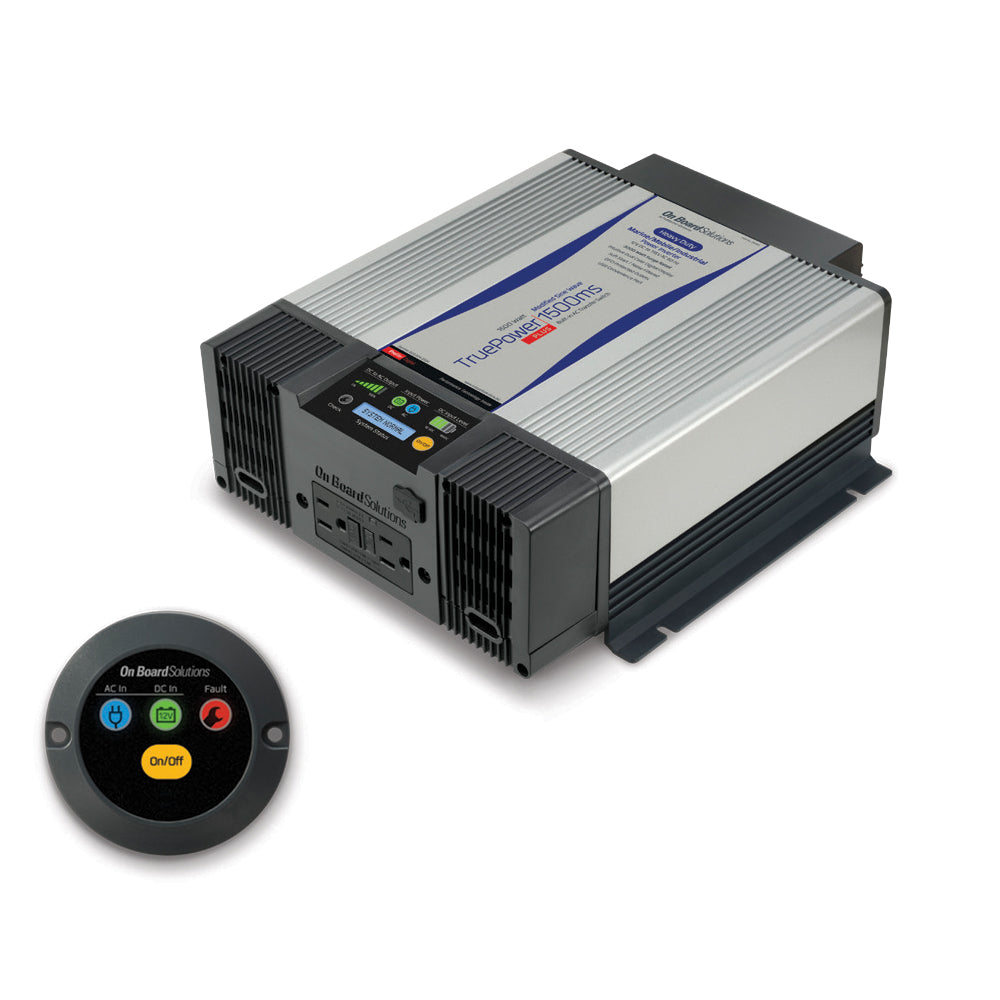

ProMariner TruePower Plus Modified Sine Wave Inverter - 1500W

Our next generation of TruePower Plus Inverters are available in both Modified Sine Wave (MS) and Pure Sine Wave (PS) models. Designed to convert 12 Volt DC battery power to 115 Volt AC and automatically pass through AC Inlet power when present. Rich with features such as Innovative dual color digital LCD message center, dual color gauges for AC power output and battery DC input, USB power port, GFCI convenience outlets, DC cable covers, and separate on/off remote. Integrated AC cable strain reliefs and front screw connection terminal blocks allow for quick and easy installation without the need for ring terminals for AC power connections. Designed with soft start noise filtered technology and x2 surge capability for powering demanding loads. Shock resistant construction with internal conformal coated electronics for protection in harsh environments.

Marinco 06150 Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 1500 Watt
• Peak Output Power (W): 3000 Watt
• Ampere Rating: 30 Amp
• Efficiency: 90 Percent
• Number Of AC Outlets: 2
• Length (IN): 11-1/2 Inch
• Width (IN): 9.9 Inch
• Height (IN): 4 Inch
• Remote On/Off Capable: Yes
• With USB Port: Yes
• With Volt/Watt Meter: Yes
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: Yes
• With Battery Cables: Yes
• With Built-In Charger: Yes
• With Fuse: Yes

Marinco 06150 Features & Benefits

• Modified Sine Wave AC Power For Primarily Resistive Loads Like Coffee Makers, Toasters, Grills, And More
• Internal 30 Ampere AC Transfer Switch Will Automatically Pass Through AC Inlet Power When Present
• Built-In Safety With Overload, Over Temperature, Short Circuit And Reverse Polarity Protection
• Soft Start Noise Filtered Technology With X2 Surge Capability; Compact And Lightweight Design
• Shock Resistant And Internal Conformal Coated Design; Intuitive User Friendly Operation
• DC To AC Output Gauge: Indicates Percentage Of AC Power Being Used Versus Output Rating; Scale Turns Red When Output Demand Exceeds Output Rating
• Input Power: Indicates If Power Is Coming From DC (Batteries) Or AC Inlet Power
• DC Input Level Gauge: Indicates Battery DC Voltage Level; Scale Turns Red When Battery Voltage Drops Below 11 Volts
• System Status: Dual Color LCD With Full System Normal And Fault Condition Messaging (No Codes)
• Limited 2 Year Warranty

Marinco 06150 Installation Instructions

• 06120_USE.pdf

Marinco 06150 Technical Bulletins

• 07100_NPA.pdf

TruePower Plus Modified Sine Wave Inverter - 1500W

Designed to convert 12 VDC battery power to 115 VAC and will automatically pass through AC Inlet power when present. TruePower Plus is rich with features including; Innovative dual color digital LCD message center, dual color gauges for AC power output and battery DC input, USB power port, GFCI convenience outlets, DC cable covers, and separate on/off remote. Our integrated AC cable strain reliefs and front screw connection terminal blocks allow for quick and easy installation without the added need for ring terminals for AC power connections. Designed with soft start noise filtered technology and x2 surge capability for powering demanding loads. Shock resistant construction with internal conformal coated electronics for protection in harsh environments.

Features:

• Intuitive dual color digital LCD message center

• Dual color gauges for AC power output and battery DC input

• Internal 30 amp AC transfer switch will automatically pass through AC inlet power when present

• USB power port and GFCI convenience outlets

• Compact and lightweight design

• Soft start noise filtered technology with x2 surge capability

• On/Off remote with 9 foot cable and DC cable covers Included

• Integrated AC power cable strain reliefs for ease of installation

• Built-in safety with overload, over temperature, short circuit and reverse polarity protection

• Audible alarm and shut down for low and high DC voltage, overload and over temperature conditions

• Shock resistant construction with internal conformal coated electronics

• 2 year warranty

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

"TruePower Plus Modified Sine Wave Inverter - 1500W Designed to convert 12 VDC battery power to 115 VAC and will automatically pass through AC Inlet power when present. TruePower Plus is rich with features including; Innovative dual color digital LCD message center, dual color gauges for AC power output and battery DC input, USB power port, GFCI convenience outlets, DC cable covers, and separate on\/off remote. Our integrated AC cable strain reliefs and front screw connection terminal blocks allow."
SKU: NVN-63222
MPN: 06150
UPC: 031669061507
