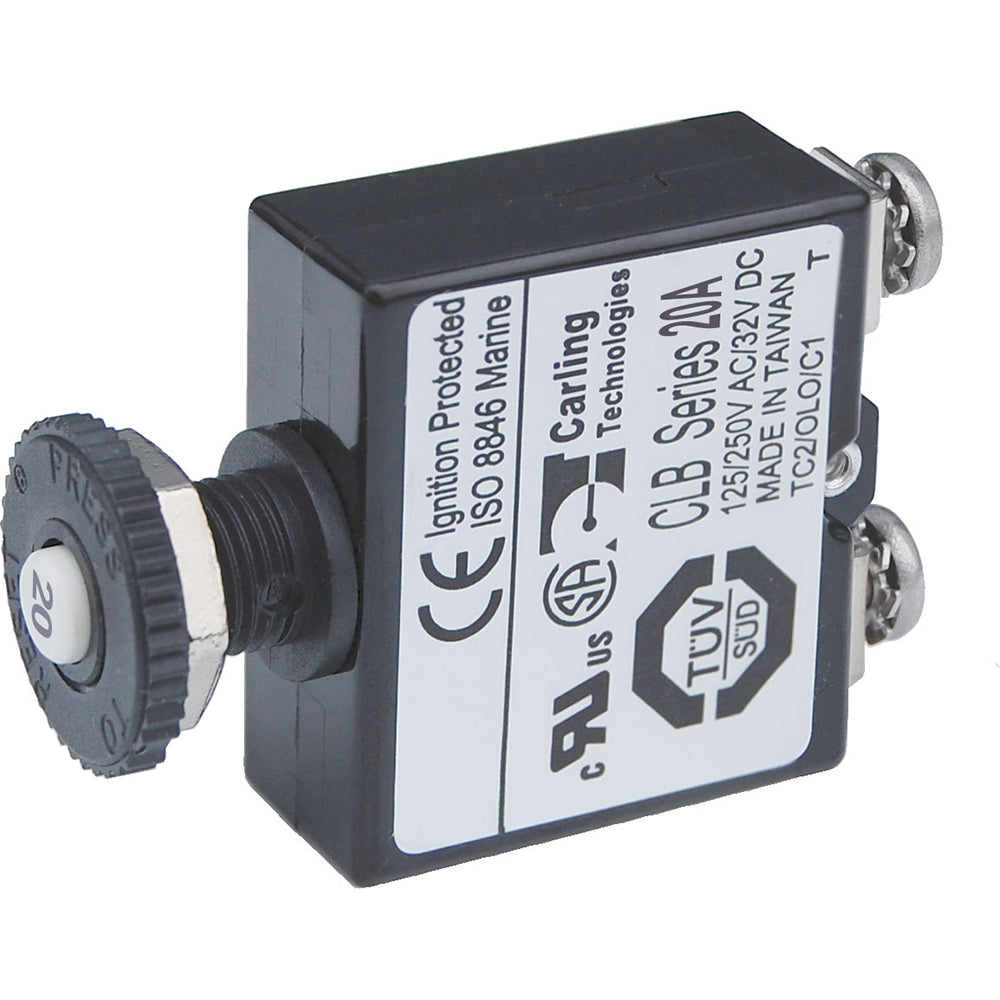

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps Product Description

Branch circuit breakers can also be used for 24-hour circuit protection. Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking.

Blue Sea 2134BSS Attributes

• Ampere Rating: 20 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 2134BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• No Supplier Warranty

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 20A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10° C

• Maximum Operating Temperature: 60° C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



  The ideal choice for 24-hour circuit protection has been integrated into Blue Sea Systems' waterproof circuit breaker panel and main battery main distribution panel. Push reset operation. Tripping. Unable to maintain free design under fault current conditions. Turn on ignition protection-can be safely installed in An optional push Button waterproof and dustproof cover on gasoline-powered boats can protect the circuit breaker in humid environments, replace the nuts installed on the circuit breaker, and prevent discoloration and cracking. Detailed specifications, drawings and instructions.



  Frequently Asked Questions (FAQ) About Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps

  Who is the Blue Sea Systems?
  How to describe Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps?
  What is the warranty policy for Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps?
  What is the type of the product?
  What is the weight of the product?
  What is the product amperage?
  What is the mounting hardware of the product and selling seperately?


  Who is the Blue Sea Systems?

  Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

  How to describe Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps?

  The ideal choice for 24-hour circuit protection has been integrated into Blue Sea Systems' waterproof circuit breaker panel and main battery main distribution panel. Push reset operation. Tripping. Unable to maintain free design under fault current conditions. Turn on ignition protection-can be safely installed in An optional push Button waterproof and dustproof cover on gasoline-powered boats can protect the circuit breaker in humid environments, replace the nuts installed on the circuit breaker, and prevent discoloration and cracking. Detailed specifications, drawings and instructions.

  What is the warranty policy for Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps?

  Lifetime

  What is the type of the product?

  Screw Terminal

  What is the weight of the product?

  0.09

  What is the product amperage?

  5 Amps

  What is the mounting hardware of the product and selling seperately?

  Panel; Mounting Hardware (Sold Separately)
