VDO REED SWITCH FUEL SENDER 600MM 240-33 OHM

$54.27 $79.99 ( / )
SKU: NVN-61653 - UPC: 754059064468 - MPN: 226-660
Reed Switch Fuel Sender - 600 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing...

Hurry! Only 7 left in stock.

VDO REED SWITCH FUEL SENDER 600MM 240-33 OHM PRODUCT DESCRIPTION

Reed Switch Fuel Sender - 600 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

  • Stainless steel construction
  • Ethanol resistant Viton gasket
  • 240-33 Ohm range
  • Fits tanks with a depth of 23.6" (600mm)
  • Insulated 1/4"" spade connectors
  • Standard 5 hole mounting flange
  • Works with most standard marine fuel gauges
  • Ground - Floating
  • Connection - Insulated .25" Spade

*Sold as an Individual

"Warning"WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

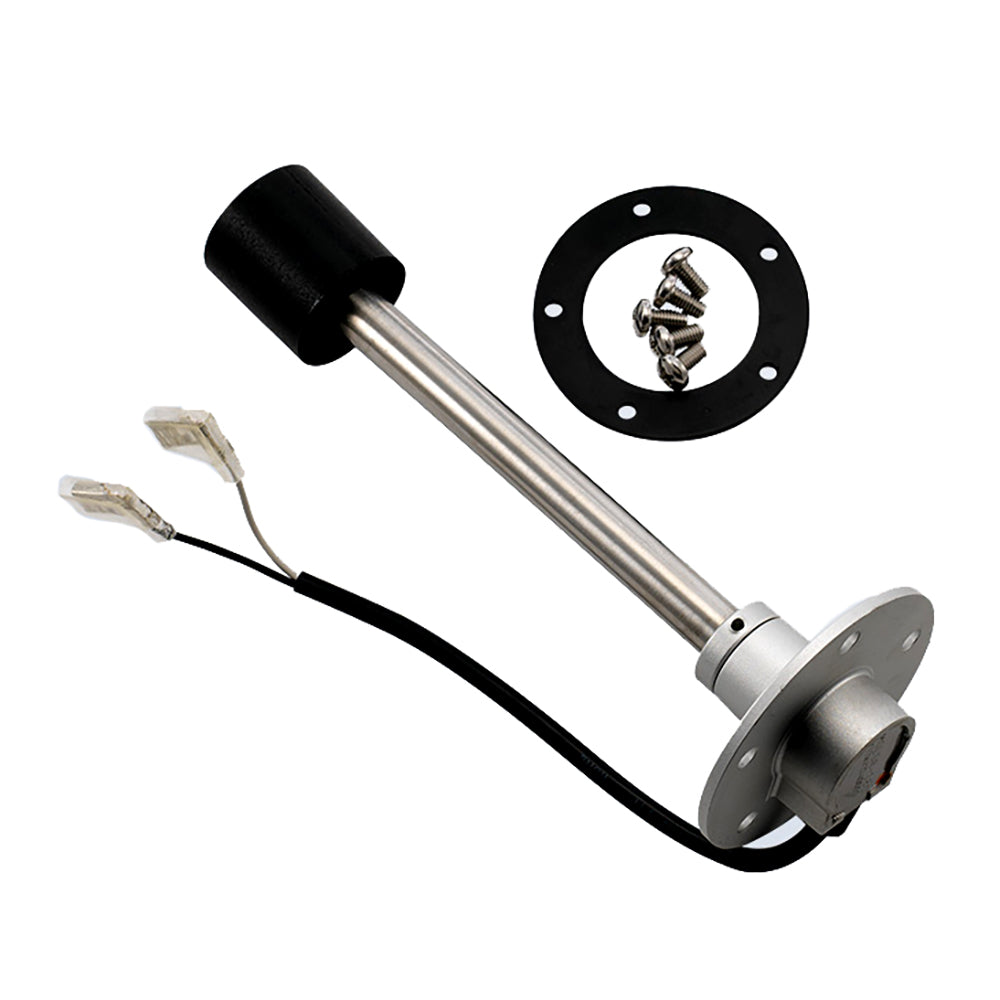

The transmitter consists of a stainless steel immersion tube, a coated standard 5-hole aluminum mounting flange and a float. It uses 0.250 inch (6.3mm) insulated spade terminal...

Save $25 when you buy the VDO REED SWITCH FUEL SENDER 600MM 240-33 OHM for only $54 from NVN Marine! Same day shipping before 3pm.

VDO REED SWITCH FUEL SENDER 600MM 240-33 OHM TECHNICAL SPECIFICATIONS

Type:

Marine Navigation & Instruments -> Gauge Accessories

Vendor:

VDO

Weight:

1.0 lb

Color:

Silver
