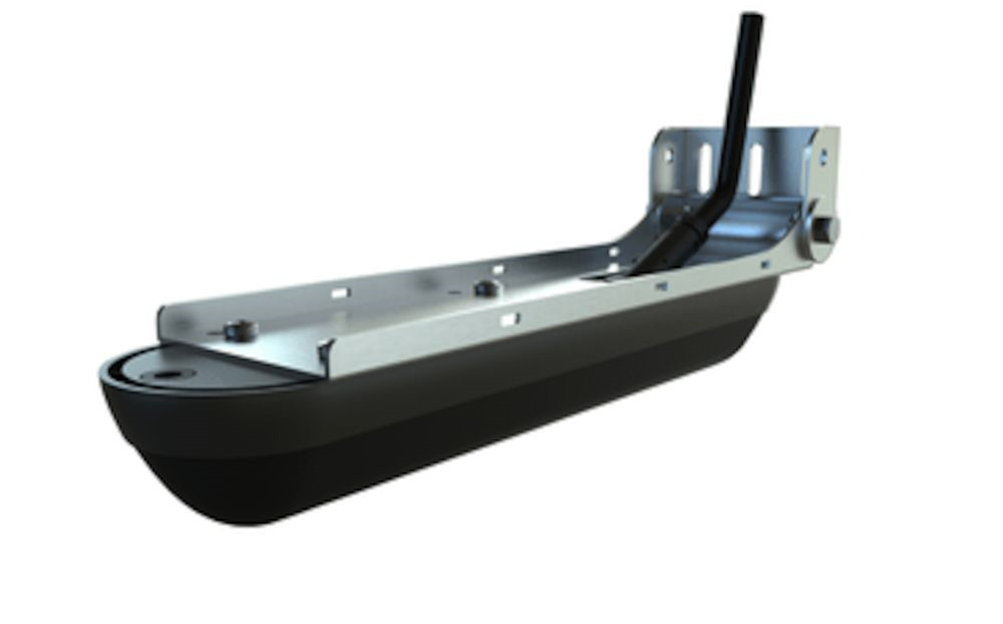

Navico Transom Mount Transducer f/StructureScan 3D

Imagine gliding across the water, your display revealing a lifelike, three-dimensional map of the underwater world below. That's the game-changing reality with this transom mount transducer designed for StructureScan 3D systems. Anglers who rely on precision often struggle with flat, two-dimensional sonar images that leave too much to guesswork. This advanced sonar tool flips the script by delivering crystal-clear, 180-degree panoramic views that pinpoint fish-holding structures, drop-offs, and bottom contours with stunning accuracy.

Revolutionary Multi-Beam Sonar Technology

At its core, this transducer harnesses cutting-edge multi-beam sonar to paint a picture-perfect 3D image of what's lurking beneath your hull. Unlike traditional side-scan setups that offer mere outlines, it builds depth and perspective, making it easier to interpret exactly where that school of bass is hugging a submerged tree or how a ledge protrudes into prime feeding territory. It even enhances your existing 2D Downscan and StructureScan HD images, sharpening details for those critical moments when every inch counts.

Impressive Scanning Range and Depth Performance

Capable of probing up to 600 feet on either side of your boat and reaching depths of 600 feet straight down, this transducer covers vast areas without sacrificing resolution. Operating across multiple frequencies—including 50 kHz, 200 kHz, and 455 kHz—it adapts seamlessly to varying water conditions, from shallow bays to deeper offshore spots. Fishermen targeting walleye in weedy flats or crappie along rocky banks rave about how it uncovers hidden hotspots that conventional sonar misses.

Flexible Transom Mounting for Any Boat

Engineered for straightforward transom, step, or jackplate installation, this setup fits most recreational boats and bass rigs. The included bracket and hardware ensure a secure, low-profile fit that minimizes drag and interference. Boat owners appreciate its rugged build, standing up to saltwater splashes and rough tournament runs while maintaining peak performance season after season.

Simplify Your Setup Process

Getting this transducer up and running doesn't require a marine electrician. Start by selecting a clean, flat transom spot free of strakes or rivets, roughly one-third back from the hull's stern. Align the bracket parallel to the waterline, drill pilot holes, and secure with provided stainless hardware. Run the cable along the transom, zip-tie it neatly, and plug into your compatible module. Test in shallow water to fine-tune the angle—aim for a slight downward tilt to capture the bottom contour perfectly. Pro tip: In high-speed applications, adjust for porpoising to keep scans steady.

Elevate Your Fishing Strategy

Tournament pros and weekend warriors alike use this 3D imaging to make smarter decisions. Spot suspended fish in relation to cover at a glance, navigate brush piles without snags, or mark waypoints on ledges that hold stripers. In murky lakes where visibility is zero, its side-to-side sweep reveals weed edges and humps invisible to the eye. Pair it with your chartplotter for overlaid views that turn raw data into fish-catching confidence, ultimately saving time and boosting your catch rate.
