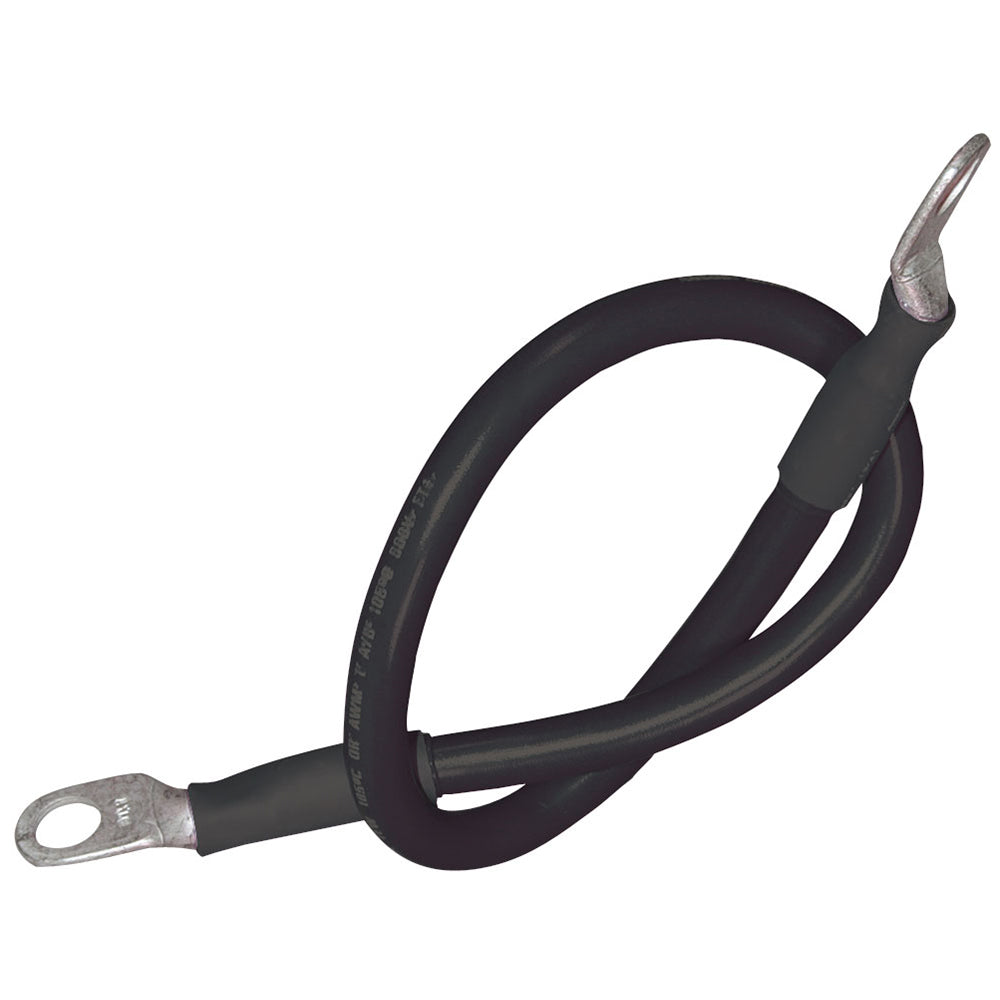

Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)

SKU: 60530 - UPC: 091887962451 - MPN: 189136
$27.49 $34.99 ( / )

Available Stock : 16

Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)Ancor Marine Grade Standard Battery Cable Assemblies are manufactured with Ancor's premium UL1426 tinned copper battery cable. The battery cable is fine stranded to produce maximum conductivity and flexibility. In addition, all Ancor battery cable is flame...
Ancor
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm) Product Description

Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)

Ancor Marine Grade Standard Battery Cable Assemblies are manufactured with Ancor's premium UL1426 tinned copper battery cable. The battery cable is fine stranded to produce maximum conductivity and flexibility. In addition, all Ancor battery cable is flame retarded, UV inhibited, rated to 600V and 105°C. The lugs are tinned copper to avoid corrosion and last longer. Each end has a piece of Ancor's adhesive lined 3:1 heatshrink tubing placed over the electrical connection. The heatshrink tubing seals out moisture and other corrosive elements found in the marine environment, and provides strain relief to ensure a longer lasting battery connection.

"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



The battery cables are finely twisted to produce maximum conductivity and flexibility. In addition, all ancor battery cables have flame-retardant and anti-ultraviolet properties, with a rated voltage of 600v and 105c...

Frequently Asked Questions (FAQ) About Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)

Who is the Ancor?
How to describe Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)?
What is the warranty policy for Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)?
What is the working voltage of the product?
What is the type of the product?
How long is the product? (Feet)
What is the gauge of the product?
What's the color of Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)?
What is the product amperage?
Is this product is ISO approved?

Who is the Ancor?

Ancor was founded over 20 years ago to solve electrical problems experienced by mariners as they ventured offshore in large numbers. General purpose wire and components designed for on shore applications caused significant problems as electrical systems became more sophisticated and demanding.

How to describe Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)?

The battery cables are finely twisted to produce maximum conductivity and flexibility. In addition, all ancor battery cables have flame-retardant and anti-ultraviolet properties, with a rated voltage of 600v and 105c...

What is the warranty policy for Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)?

Five Years
  • Marine grade stranded tinned copper wire that is corrosion resistant and highly conductive
  • Premium insulation that is resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and UV damage
  • Lugs: 4
  • Lengths: 18", 32", 48"
  • Approvals: UL 1426, USCG Charterboat (CFR Title 46), ABYC
  • Rated for 600V, 105°C dry and 76°C wet and can be run through engine rooms.
  • Vinyl insulation is exceptionally flexible, making installation easier
  • Vibration and fatigue resistant
  • Pre-crimped tinned copper lugs with color coded adhesive lined heat-shrink to prevent corrosion
  • Connections: Tinned copper lugs
  • Amperage: 136A (4 AWG) 178A (2 AWG)
  • Voltage: 600V
  • Cable Size: 4 AWG, 2 AWG

What is the working voltage of the product?

12/24 Volts Systems

What is the type of the product?

Battery Cables

How long is the product? (Feet)

48"

What is the gauge of the product?

2 Gauge

What's the color of Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm)?

Black

What is the product amperage?

178 Amps

Is this product is ISO approved?

UL 1426
USCG Charterboart (CFR Title 46)
ABYC


Save $7 when you buy the Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm) for only $27 from NVN Marine! Same day shipping before 3pm.

Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm) Technical Specifications

Type:

Electrical | Wire

Vendor:

Ancor

Weight:

0.8 lb

Color:

Black

Length (Feet):

48"

Gauge:

4 AWG

Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm) User Reviews

Ancor Battery Cable Assembly, 4 AWG (21mm²) Wire, 5/16" (7.93mm) Stud, Black - 48" (121.9cm) Shipping & Return

Shipping Weight:

0.8 lb

Box Sizes:

2.00 (h) x 3.00 (w) x 8.00 (l)

Cubic Feet:

48.0

Returnable:

Yes

USPS First Class:

Yes

P65:

Yes
