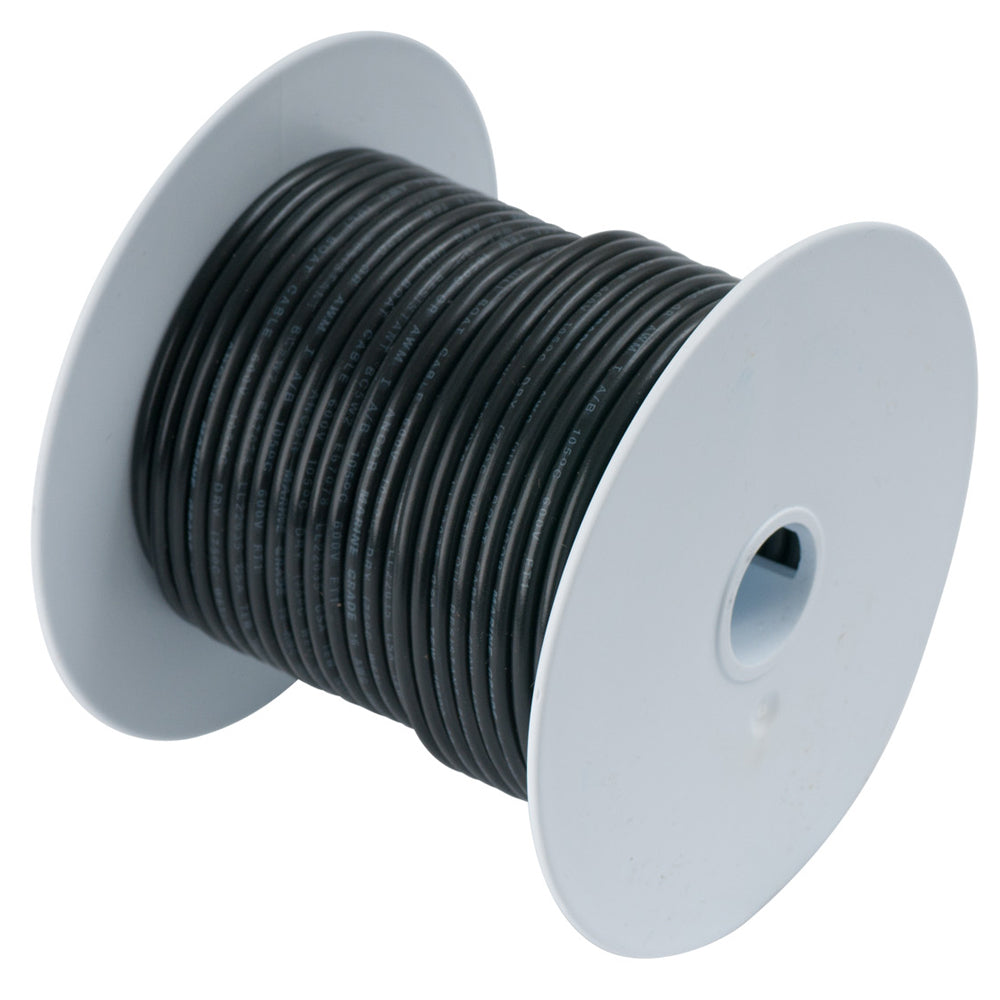

Ancor Black 18 AWG Tinned Copper WIre - 35'

Ancor Black 18 AWG Tinned Copper WIre - 35' Product Description

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 degree Celsius dry and 75 degree Celsius wet, stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Ancor 180003 Attributes

• Construction: Stranded Conductor
• Gauge: 18 Gauge
• Length: 35 Feet
• Color: Black
• Style: Spool
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ CSA/ ABYC/ US Coast Guard Certified

Ancor 180003 Features & Benefits

• Constructed With Premium Vinyl Insulation That Is Rated At 600 Volt
• Stays Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion And Ultra-Violet Radiation
• Highest Quality Ultra Flexible Tinned Copper Stranding Provides Maximum Protection Against Corrosion
• Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing
• No Supplier Warranty

Ancor 180003 Technical Bulletins

• ANC_NPA_001.pdf
• ANC_BRO_007.pdf
• SPEC_Ancor_Primary_Wire_Battery_Cable_TCHDAT.pdf
• SPEC_Ancor_Primary_Wire_Battery_Cable_TCHDAT.pdf

Black 18 AWG Tinned Copper Wire - 35'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

• Wire Gauge: 18 AWG

• Nominal O.D. (inches): 7/64

• Nominal O.D. (mm): 3

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 35-foot Ancor Marine Grade steel wire product is the longest service life and strongest product, exceeding the standards of UL 1426, ABYC and the United States Coast Guard Charter Ship (CFR Title 46). ...



Save $4 when you buy the Ancor Black 18 AWG Tinned Copper WIre - 35' for only $4 from NVN Marine! Same day shipping before 3pm.
