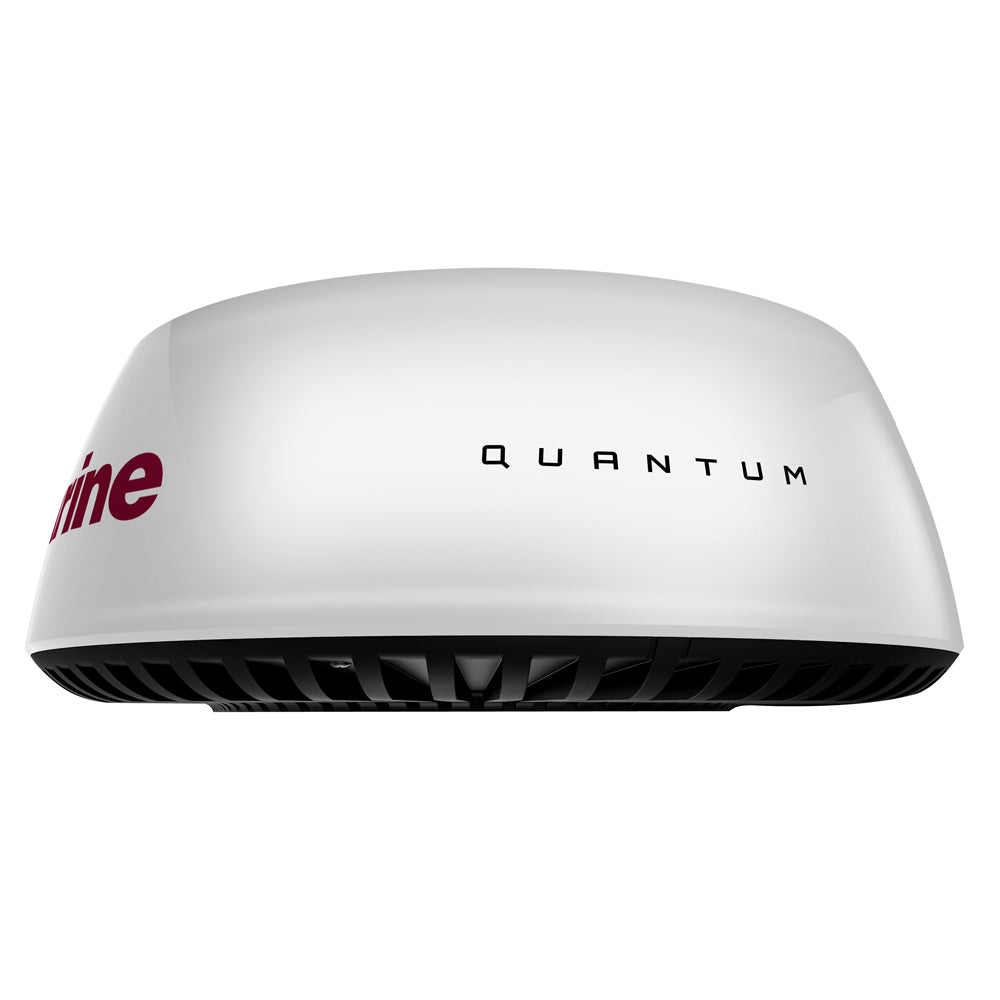

Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included — Product description
Discover Superior Performance with Raymarine Quantum Q24C Radar
Imagine navigating busy coastal waters or foggy inlets with crystal-clear visibility of every target ahead. The Raymarine Quantum Q24C radome radar makes this a reality through its innovative solid-state design and CHIRP pulse compression technology. This compact 18-inch dome scanner excels at spotting distant vessels on horizons up to 24 nautical miles while delivering exceptional detail on nearby objects as close as 18 feet. Perfect for sailboats, RIBs, and compact powerboats, it combines Wi-Fi and Ethernet connectivity for seamless integration with your existing Raymarine multifunction displays.
What sets this radar apart is its ability to cut through clutter and interference, using advanced target separation to distinguish boats, buoys, rocks, and even weather cells with precision. No more guesswork—Quantum provides the sharp imaging you need for confident decision-making at sea.
Key Features That Elevate Your Boating Experience
- CHIRP Pulse Compression Mastery: Delivers focused energy to targets for vivid long-range imaging and unmatched short-range clarity, even detecting small objects amid strong echoes.
- Instant Readiness: Solid-state tech powers up in seconds—no waiting for warm-up like older magnetron systems.
- Versatile Connectivity: Built-in Wi-Fi pairs effortlessly with Raymarine LightHouse II displays, while Ethernet (RayNet) offers wired reliability.
- Interference Rejection: Filters out noise from nearby radars, ensuring a clean, reliable picture.
- Compact and Lightweight: At just 12.3 pounds, it's up to 50% lighter than traditional radars, making it easy to mount almost anywhere onboard.
Real-World Benefits for Everyday Boaters
For weekend cruisers dodging weekend traffic or offshore adventurers scanning for squalls, the Quantum Q24C shines. Its low power draw—17 watts transmitting and 7 watts standby—extends battery life during long sails, while safe emissions let you install it near living quarters without concern. Upgrading from an older scanner? It matches existing bolt patterns and works with optional adapters to reuse your cables, minimizing downtime and hassle.
Boaters rave about its speed: 24 RPM rotation keeps the display fresh, and the narrow 4.9-degree horizontal beam width pinpoints threats accurately. IPX6 waterproofing shrugs off heavy spray, ensuring reliability in rough conditions.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Radar Type | Radome (18-inch dome) |
| Maximum Range | 24 nautical miles |
| Rotation Speed | 24 RPM |
| Power Consumption | 17W transmit / 7W standby / 2W sleep |
| Input Voltage | 12-24 VDC (10.8-31.2V) |
| Beam Width | 4.9° horizontal / 20° vertical |
| Dimensions | 21.3" diameter x 8.25" height |
| Weight | 12.3 lbs (5.6 kg) |
| Waterproof Rating | IPX6 |
Effortless Installation Tips
Route the slim 10-meter power cable through tight spaces with ease—no bulky wiring needed. Secure it using the included M8 bolts and washers on your existing mount, or choose a new spot for optimal scanning. Pair via Wi-Fi for quick setup on multifunction displays, or go wired for stability in high-vibration environments. Pro tip: Position higher on the vessel for better horizon views and fewer blind spots from superstructures.
What's Included in Your Package
- Quantum Q24C radome
- 10-meter power cable
- Mounting hardware (4 x M8 bolts with washers)
- Documentation pack
Frequently Asked Questions
What makes the CHIRP technology in the Quantum Q24C better than traditional radars?
CHIRP pulse compression sends varied frequency pulses that focus more energy on targets, improving resolution at all ranges—especially short ones down to 18 feet—without the power-hungry magnetron of older models.
Is this radar suitable for smaller boats like sailboats?
Absolutely—its lightweight build, low power use, and compact size make it ideal for sailboats, RIBs, and small powerboats where space and battery life matter most.
How does Wi-Fi connectivity work with my Raymarine display?
It connects wirelessly to any LightHouse II-powered MFD for simple networking. Ethernet is also supported for more robust setups.
What's the power draw, and will it drain my batteries?
At 17W transmit and 7W standby, it's highly efficient—about a quarter of magnetron radars—perfect for extended trips under sail.
Can I mount this radar anywhere on my boat?
Yes, its low-emission solid-state design allows flexible mounting, even near cabins, with IPX6 protection against the elements.
Does it require new cabling for upgrades?
Often not—optional adapters let you reuse existing cables, and it fits the same bolt pattern as prior Raymarine scanners.
Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Raymarine E70210 Attributes
- Radar Type: Radome
- Size: 18 Inch Dome
- Range: 24 Nautical Miles
- Rotation Speed: 24 RPM
- Power Output: 17 Watt
- Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
- Input Voltage: 12 Volt To 24 Volt
- Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: Mounting Hardware/ 10 Meter Power Cable
Raymarine E70210 Features & Benefits
- Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
- CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
- Broad Usage Applications, Quantum Is Perfect For Sailboats, Ribs And Smaller Powerboats
- Superior Interference Rejection Eliminates Noise From Other Radars
- Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
- Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
- Safe Emissions: Mount Quantum Anywhere Onboard
- Simplified Installation And Can Utilize Existing Cables (With An Adapter) If Being Used As An Upgrade
- Limited 2 Year Warranty
Raymarine E70210 Installation Instructions
Raymarine E70210 Warranties
Raymarine E70210 Technical Bulletins
- Quantum Radar E70210 3D PDF.PDF
- Quantum Radar E70210 3D PDF.PDF
- Quantum Radome Installation instructions 87209-8-EN.pdf
Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Superior Radar Imaging
FLIR's exclusive ATXT advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.
CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.
Small Target Detection
Quantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.
Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.
Energy Efficient & Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail.
Raymarine's 18-inch hemispherical radar with WiFi connection Raymarine's Quantum Q24C radar not only has excellent radar imaging performance, but also has become the first choice for Dome radar due to its simplified installation, lightweight design and reduced power consumption. Quantum Q24C radar uses CHIRP pulse compression technology to ensure that more energy reaches the target, so even if it is close to a sturdy return structure or container, it can identify smaller and weaker targets and provide higher separation and clarity degree. The CHIRP pulse compression of Quantum Q24C provides excellent target detection and details as low as 6 meters. At startup, Quantum Q24C consumes only 17 watts, and only 7 watts in standby mode. The solid-state structure and low power consumption of Quantum Q24C also make its transmission safer than traditional magnetron radar. FLIR's exclusive ATX advanced radar imaging technology and advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys and weather cabins, with unparalleled resolution and separation quality, which is also incomparable with the performance of Quantum Q24C radome match. section. Q24 is also the first radar to connect to MFD powered by Raymarine Lighthouse II with Wi-Fi function via cable or wireless.
SKU: NVN-59438
MPN: E70210
UPC: 723193783931
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included |
| SKU / MFR# | 59438 |
