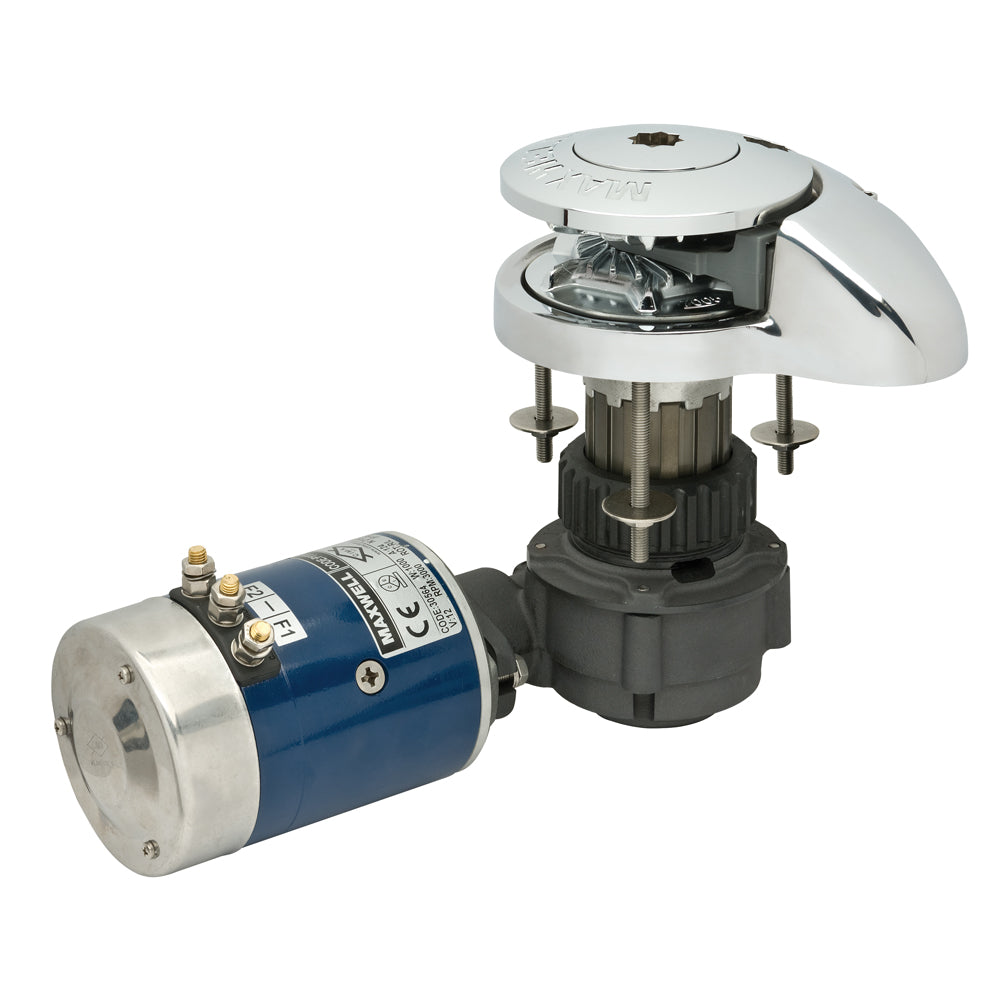

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V Product Description

RC Rope/Chain SeriesVertical Rope/Chain Windlass with Below-deck Motor Maxwell's all new RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. RC10 and RC8 are available in both capstan and low profile versions. RC6 is available in low profile version only.

Maxwell RC8612V Attributes

• Mount Type: Vertical, below deck motor
• Maximum Pull: 770 Pound
• Maximum Line Speed: 92'/min chain; 79'/min rope
• Size: Above Deck: 5.75''; Below Deck: 7.9''; Motor offset: 9.5''; Wt: 27.5 lbs.; Max deck thickness: 4''
• Chain/ Rope Size: 1/4'' chain; 1/2'' rope
• Voltage Rating: 12 VDC
• Motor Power: 600 Watt

Maxwell RC8612V Features & Benefits

• The all new RC8-6 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope
• The larger RC8-8 can be used with 8mm (5/16") chain spliced to 14mm (9/16") three strand or 8-plait rope
• The revolutionary, and patented, new Wave Design chainwheel is able to accommodate a wide range of chain pitch differences within the specified chain size diameters
• Sleek, low profile and MAX-grip capstan drum versions are available to suit individual user preference
• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass
• Unique spacer tube design; Cone type clutch/brake mechanism permits manual, free fall anchoring
• Full disassembly capability of top works utilising handle provided, a screw driver and an Allen key
• Manufactured from marine grade 316 stainless steel for long term durability; Heavy duty stainless steel pressure arm
• In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure
• Huge through deck hawse pipe throat, Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel

• Windlass

• On/Off Breaker Panel

• Reversing Solenoid

• Up/down Panel Switch

• Emergency crank / clutch release handle

• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass

• Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations

• Fully automatic rope / chain windlass is designed to effortlessly retrieve and deploy 1/4" (6mm / 7mm) chain spliced to 1/2" (12 mm) three strand or 8-brait (plait) rope

• The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series

• Full disassembly capability of topworks utilising handle provided and an Allen key

• The RC8 Series is manufactured from marine-grade 316 stainless steel for long term durability

• The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance

• In combination with a heavy duty, large wire diameter, stainless steel preloaded spring, the pressure arm always exerts maximum control pressure

• The RC8 works just as effectively with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck

• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker

• Full disassembly capability of the topworks utilising only the handle provided and an Allen key

• Manual override using the emergency crank handle provided

• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel

• This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode

• The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval

• As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope

• Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode

• Wave Design™ Chainwheel Is fitted to all RC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and Metric

  Specifications


  • Material: Marine-Grade 316 Stainless Steel

  • Power: 12 Volt DC, 600 Watts

  • Chain / Short Link: 1/4" ( 6mm / 7mm )

  • Maximum Pull: 770 lbs ( 350kg )

  • Rope Size: (Nylon)* (3-Strand or 8 Plait Recommended) 1/2" (12mm)

  • Chain Speed (Anchor Retrieval): 92 Feet per Minute (28 m / min)

  • Rope Speed (Anchor Retrieval): 79 Feet per Minute (24 m / min)

    The new RC8-6 fully automatic rope/chain windlass is designed to easily retrieve and unfold a 6mm/7mm (1/4") chain spliced ​​with 12mm (1/2") three strands or 8 ropes. Maximum pulling force: 350kg ingeniously designed rope/chain gypsy (sprocket) can adapt to various chain pitch differences within the specified chain size diameter suitable for the RC8 series. The smooth, low profile and MAX-grip capstan drum version can satisfy individual user preferences. The simple two-piece installation saves time and money, and can be easily retrofitted without removing the winch. The unique spacer tube design can realize the installation of almost any platform thickness, and multiple installation positions and self-aligning gearbox ensure the best position of the gearbox and motor in almost all installation situations. With the provided handle, screwdriver and Allen wrench, the top work can be completely disassembled. The RC8 series is made of marine grade 316 stainless steel, which has long-term durability. The design of the heavy-duty stainless steel pressure arm can effectively help grip the rope/chain joint, so that the RC8 has an unparalleled level of performance. Combined with heavy load, large wire diameter, and stainless steel preloaded spring, the pressure arm always exerts the maximum control pressure. The RC8 is as effective as a full chain rod, suitable for those who want to wear a low-key, elegant windlass on their forehead. The large deck Hough tube through hole ensures easy entry and exit of the rope/chain into and out of the anchor locker. The conical clutch/brake mechanism allows manual and free fall anchoring. Use the provided emergency crank handle for manual operation. The sealed oil bath and marine-grade hard anodized alloy gearbox provide high-efficiency output drive through precision worms and worm gears.



    Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V Related Products

    Maxwell Anchor Rode - 15'-1/4" Chain to 150'-1/2" Nylon Brait
    Sika Sikaflex® 291 Fast Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - White
    Sika Sikaflex® 291 Fast Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - Black
    Sika Sikaflex® 291 LOT Slow Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - White
    Sika Sikaflex® 291 LOT Slow Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - Black
    Sika Sikaflex® 291 LOT Slow Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - Mahogany
    Sika Sikaflex® 221 Multi-Purpose Polyurethane Sealant/Adhesive - 10.3oz(300ml) Cartridge - White
    Sika Sikaflex® 221 Multi-Purpose Polyurethane Sealant/Adhesive - 10.3oz(300ml) Cartridge - Black
    Sika Sikaflex® 221 Multi-Purpose Polyurethane Sealant/Adhesive - 10.3oz(300ml) Cartridge - Aluminum Gray
    Sika Sikaflex® 221 Multi-Purpose Polyurethane Sealant/Adhesive - 10.3oz(300ml) Cartridge - Colonial White




    Frequently Asked Questions (FAQ) About Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V

    Who is the Maxwell?
    How to describe Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V?
    What is the rope diameter of the product?
    What is the size?
    What is the mount type of the product?
    Has a freefall feature?
    What is chain diameter of this product?
    Is this product vertical or horizontal?


    Who is the Maxwell?

    For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

    How to describe Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V?

    The new RC8-6 fully automatic rope/chain windlass is designed to easily retrieve and unfold a 6mm/7mm (1/4") chain spliced ​​with 12mm (1/2") three strands or 8 ropes. Maximum pulling force: 350kg ingeniously designed rope/chain gypsy (sprocket) can adapt to various chain pitch differences within the specified chain size diameter suitable for the RC8 series. The smooth, low profile and MAX-grip capstan drum version can satisfy individual user preferences. The simple two-piece installation saves time and money, and can be easily retrofitted without removing the winch. The unique spacer tube design can realize the installation of almost any platform thickness, and multiple installation positions and self-aligning gearbox ensure the best position of the gearbox and motor in almost all installation situations. With the provided handle, screwdriver and Allen wrench, the top work can be completely disassembled. The RC8 series is made of marine grade 316 stainless steel, which has long-term durability. The design of the heavy-duty stainless steel pressure arm can effectively help grip the rope/chain joint, so that the RC8 has an unparalleled level of performance. Combined with heavy load, large wire diameter, and stainless steel preloaded spring, the pressure arm always exerts the maximum control pressure. The RC8 is as effective as a full chain rod, suitable for those who want to wear a low-key, elegant windlass on their forehead. The large deck Hough tube through hole ensures easy entry and exit of the rope/chain into and out of the anchor locker. The conical clutch/brake mechanism allows manual and free fall anchoring. Use the provided emergency crank handle for manual operation. The sealed oil bath and marine-grade hard anodized alloy gearbox provide high-efficiency output drive through precision worms and worm gears.

    • RC8-6 Vertical Windlass 1/4" Chain, Rope 1/2" 12v Package Includes Windlass On/Off Breaker Panel Reversing Solenoid Up/down Panel Switch Emergency crank / clutch release handle
    • Installs in minutes and saves you time.
    • Includes a reversing solenoid to control the direction of the windlass and up/down panel switch for easy operation.
    • Comes with an emergency crank release handle and clutch release handle to make it easier to start your engine when it's in gear.

    • RC8-6 Windlass is the perfect solution for a small, single boat anchoring application.
    • Complete installation in two parts makes it quick and easy to install, with minimal fuss.
    • The 12v package includes a windlass on/off breaker panel, reversing solenoid, up/down panel switch and emergency crank/clutch release handle.

    • The vertical windlass is designed to be mounted in an opening in the deck or hull of a boat.
    • It can be used with a variety of ropes and chain lengths.
    • The RC8-6 is perfect for boats up to 20ft long.

    What is the rope diameter of the product?

    1/2"

    • RC8-6 Vertical Windlass 1/4" Chain, Rope 1/2" 12v Package Includes Windlass On/Off Breaker Panel Reversing Solenoid Up/down Panel Switch Emergency crank / clutch release handle
    • Installs in minutes and saves you time.
    • Includes a reversing solenoid to control the direction of the windlass and up/down panel switch for easy operation.
    • Comes with an emergency crank release handle and clutch release handle to make it easier to start your engine when it's in gear.
    • RC8-6 Windlass is the perfect solution for a small, single boat anchoring application.
    • Complete installation in two parts makes it quick and easy to install, with minimal fuss.
    • The 12v package includes a windlass on/off breaker panel, reversing solenoid, up/down panel switch and emergency crank/clutch release handle.
    • The vertical windlass is designed to be mounted in an opening in the deck or hull of a boat.
    • It can be used with a variety of ropes and chain lengths.
    • The RC8-6 is perfect for boats up to 20ft long.

    What is the size?

    Above Deck: 5.75''; Below Deck: 7.9''; Motor offset: 9.5''; Wt: 27.5 lbs.; Max deck thickness: 4''

    What is the mount type of the product?

    Vertical, below deck motor

    Has a freefall feature?

    Yes

    What is chain diameter of this product?

    1/4"

    Is this product vertical or horizontal?

    Vertical
