Navico 4-Way Block for NMEA 2000 Networks

Streamline Your Marine Network with the NMEA 2000 4-Way Block

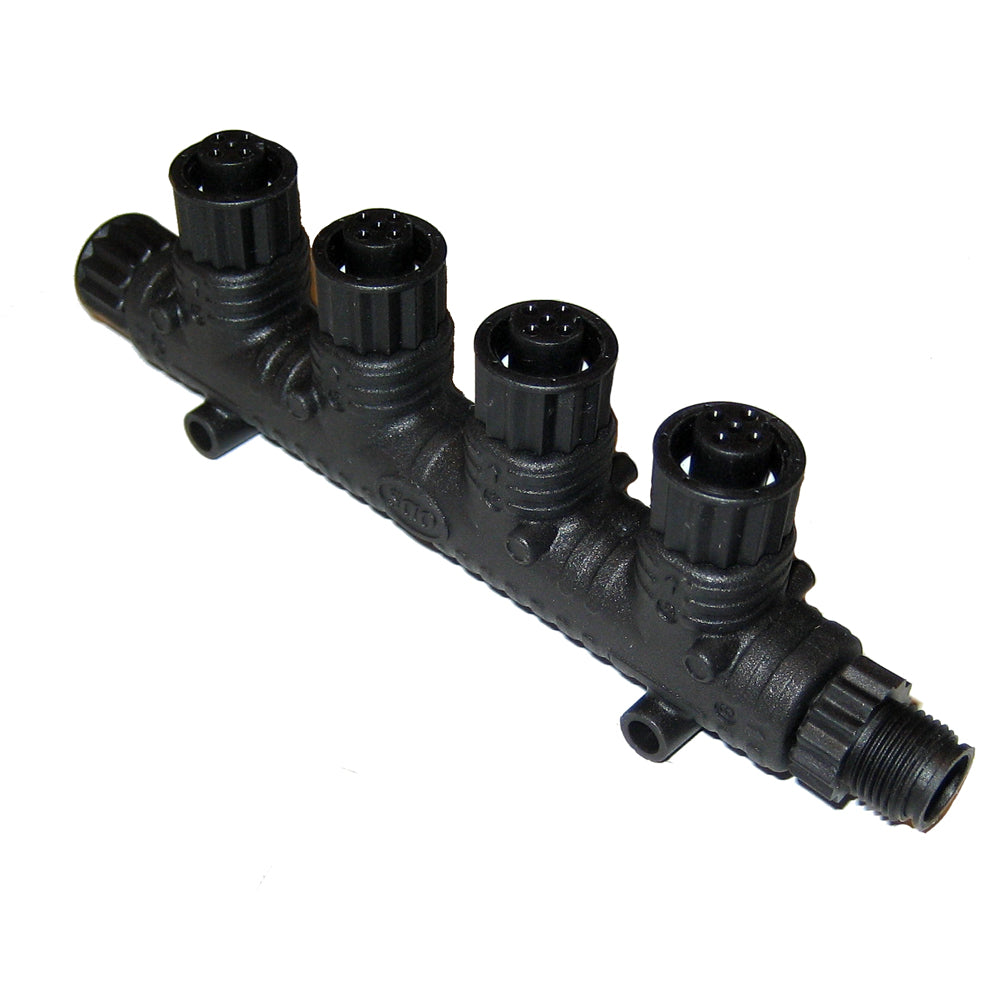

Building a reliable onboard electronics setup demands smart cabling solutions that keep things tidy and efficient. The Navico 4-Way Block steps in as a game-changer for NMEA 2000 networks, letting you connect up to four Micro-C drop cables from a single point. This low-loss connector, built with 22 AWG wiring, minimizes signal degradation even in demanding marine conditions, ensuring your Simrad plotters, Lowrance fishfinders, or B&G instruments stay in sync without clutter.

Whether you're rigging a tournament bass boat or outfitting a coastal cruiser, this block replaces messy chains of T-connectors. It creates a cleaner backbone for your network, reducing points of failure and simplifying troubleshooting on the water. Boaters rave about how it cuts installation time and keeps wiring harnesses professional-looking, even after years of saltwater exposure.

Key Advantages for Serious Anglers and Boaters

• Space-Saving Design: Consolidate multiple connections into one compact unit, ideal for tight console spaces or bulkheads.
• Low Signal Loss: Engineered for minimal voltage drop across four branches, maintaining data integrity for GPS, sonar, and engine data sharing.
• Rugged Construction: Handles vibration, moisture, and temperature swings common in marine environments, with seals that lock out corrosion.
• Plug-and-Play Simplicity: No special tools needed—just snap in your Micro-C cables and backbone, and your network expands seamlessly.
• Scalable Networking: Perfect for growing systems, from basic chartplotters to full multi-station setups with radar and autopilot integration.

Effortless Installation Tips for Optimal Performance

Getting this 4-Way Block online takes minutes. Start by powering down your system and locating a suitable spot along the NMEA 2000 backbone—aim for areas with good ventilation to avoid heat buildup from nearby electronics.

1. Disconnect the backbone terminators if needed.
2. Insert the male Micro-C end of the block into the backbone's female port.
3. Connect up to four drop cables (like those for transducers or displays) to the block's female ports.
4. Secure with zip ties or cable clamps to prevent strain.
5. Power up and verify connections using your MFD's network diagnostics—look for green status icons across all devices.

Pro tip: Keep drop cable runs under 6 meters per leg to dodge any power budgeting issues, especially if daisy-chaining power-hungry sensors. This setup shines in high-traffic networks where backbone loading matters most.

Broad Compatibility Across Top Marine Brands

As a Navico staple, this block plays nice with Simrad GO and NSO series, Lowrance HDS and Elite units, and B&G Triton systems. It's also a solid match for other NMEA 2000-certified gear from Garmin, Raymarine, or Furuno—universal Micro-C ends make it a no-brainer for mixed-brand installs.

Real-world example: Pair it with Active Imaging transducers and a GO12 XSE plotter for crystal-clear structure scans shared instantly to your helm display, no lag or dropouts.

Long-Term Reliability and Maintenance

Durability defines this connector. Its low-profile housing resists snags from fishing gear or dock lines, while gold-plated contacts fight oxidation for years of solid performance. Routine checks are straightforward: Inspect seals annually, clean with fresh water after saltwater rinses, and scan your network diagnostics during pre-launch prep.

Users report zero failures after seasons of offshore runs, attributing it to the block's superior backbone distribution versus individual Ts, which can overload segments and cause intermittent glitches.
