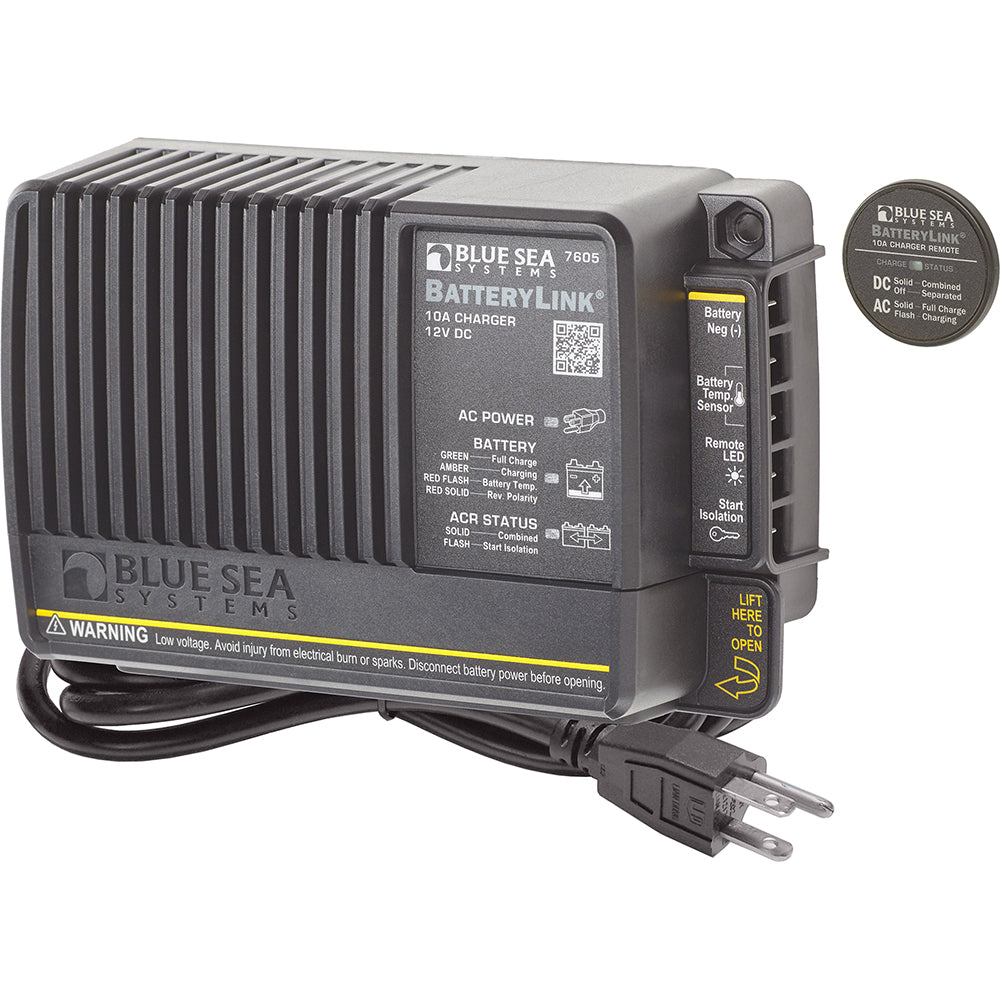

Blue Sea 7605 BatteryLink® Charger - 10Amp - 2-Bank

Blue Sea 7605 BatteryLink® Charger - 10Amp - 2-Bank Product Description

BatteryLink® Charger - 10Amp - 2-Bank

Charge two batteries at or away from the dock with a 10A multistage battery charger and integrated 65A Automatic Charging Relay (ACR)

• AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 10 Amp battery charger

• DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 65A ACR

• Battery Temperature Compensation prolongs battery life

• Start isolation protects sensitive electronics from voltage sags and spikes

• Includes LED remote indicator for charge status at the helm

• Snap-on insulating cover

• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Total Output Current: 10A


• Nominal Voltage: 12V DC

• Number of Outputs: 1 negative / 2 positive

• Terminal Stud Torque: 60 in-lb (6.78 Nm)

• Continuous Rating:65A

• Intermittent Rating:115A

• Universal AC Input Voltage: 90-265V AC

• AC Input Frequency: 50/60Hz

• Typical Float Voltage:13.5V DC

• Battery Types: AGM / Flooded / TPPL - Do not mix battery types

• Cable Size to Meet Ratings:10 AWG Negative Cable / 6 AWG Positive Cable

• Maximum Battery CCA: 850CCA

• Maximum Cable Size: 1/0 AWG (50mm)

• Operating Current: 10mA (No AC Power, ACR Open) / 60mA (No AC Power, ACR Closed)

• Recommended Battery Bank Sizes: 60Ah Minimum

• Terminal Stud Size:1/4"-20 (accepts M6 ring terminal)

• Warranty: 5 Year

• Combine 30 sec: 13.5V

• Combine 2 Min: 13.0V

• Open 10 sec: 12.35V

• Open 30 sec: 12.75V

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

It uses AC shore power to charge two isolated battery packs through a 3-level 10-amp battery charger, while also sharing the DC power from the alternator with the starting and starting power sources.
