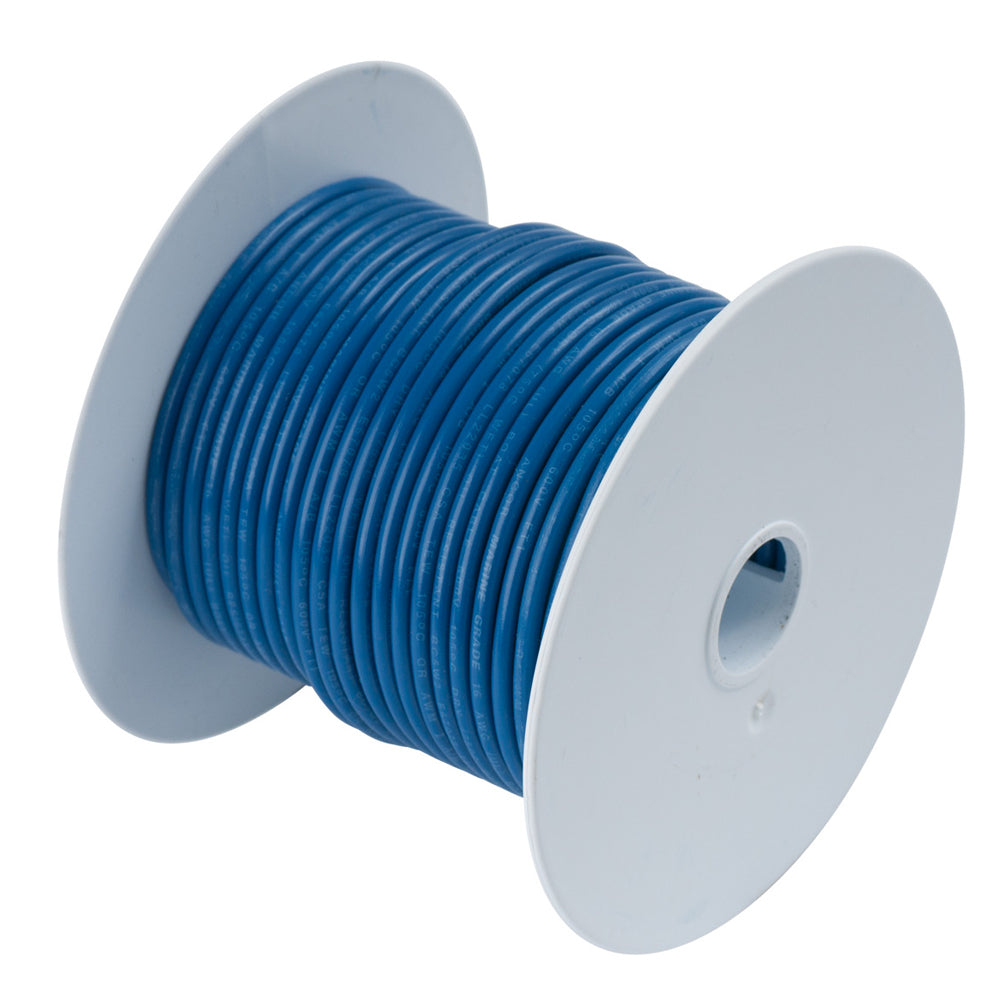

Ancor Dark Blue 14AWG Tinned Copper Wire - 100'

Ancor Dark Blue 14AWG Tinned Copper Wire - 100' Product Description

Ancor Marine Grade ™ cable are designed for the harsh marine environment. Their tinned copper construction protects against corrosion and electrolysis while providing the most reliable conductivity. Ancor Marine Grade wire products are the longest lasting and most rugged, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 Degree Celsius dry and 75 Degree Celsius wet, stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

Ancor 104110 Attributes

• Construction: Stranded Conductor
• Gauge: 14 Gauge
• Length: 100 Feet
• Color: Dark Blue
• Style: Spool
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ CSA/ ABYC/ US Coast Guard Certified

Ancor 104110 Features & Benefits

• Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing
• Proprietary Premium Vinyl Insulation Stays Flexible Even In Extreme Cold Negative 40 Degree Celsius
• Resists Salt Water, Battery Acid, Oil, Gasoline, Ultra-Violet Radiation, Heat And Abrasion
• Rated At 600 Volts, 105 Degree Celsius Dry And 75 Degree Celsius Wet
• Exceeds All UL 1426, US Coast Guard Charter Boat And ABYC Standards
• No Supplier Warranty

Ancor 104110 Technical Bulletins

• Technical Bulletin 100010_1.pdf
• Technical Bulletin 100010_2.pdf
• Technical Bulletin 100010.pdf

Dark Blue 14AWG Tinned Copper Wire - 100'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

ANCOR's main marine cables comply with American Wire Gauge Standards, which means that tinned copper conductors are as much as 12% more than SAE wires. Our high-quality vinyl insulation materials can provide...
