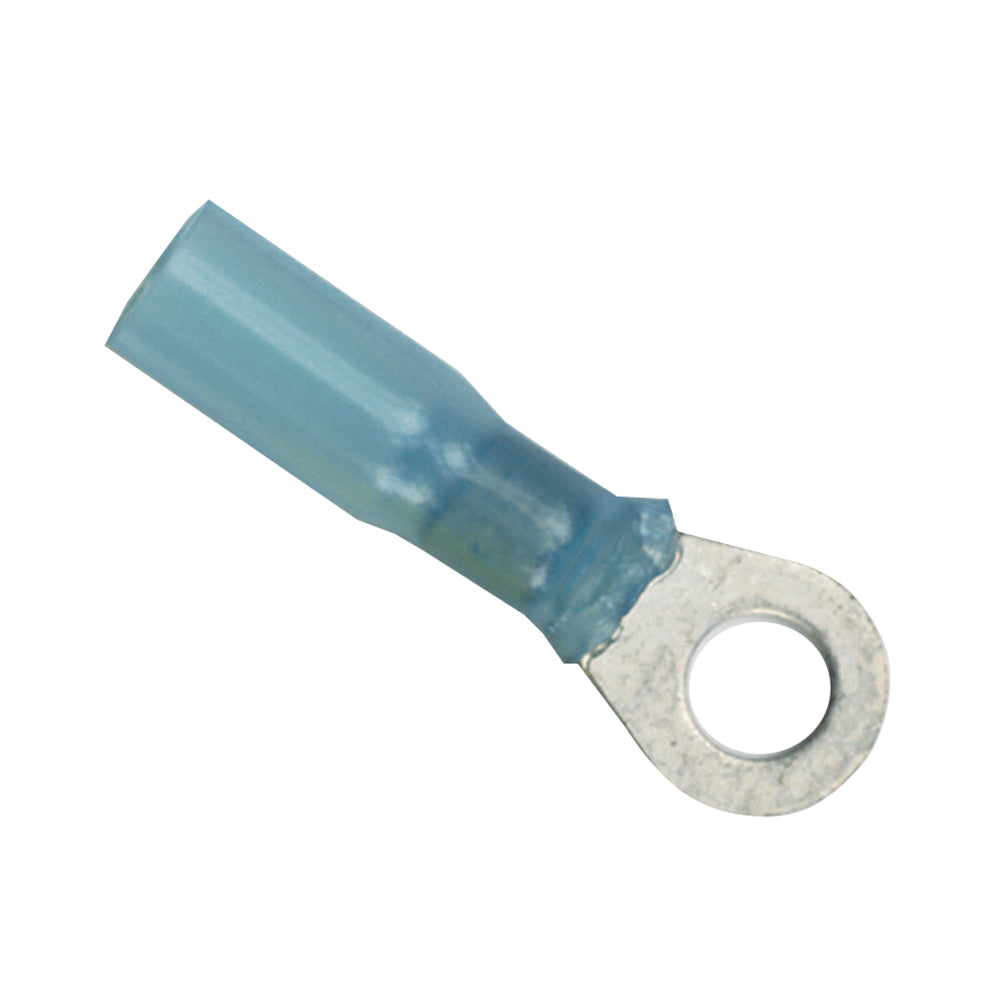

Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

SKU: 55448 - UPC: 091887313222 - MPN: 311625
$14.99 $24.51 ( / )

Available Stock : 84

16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-PackWire Range:16-14Screw Size:3/8"Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief...
Ancor
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack Product Description

16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

Wire Range:16-14
Screw Size:3/8"
Quantity: 25

Product Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257° F/125° C
  • Operating temperature range 40° C to 110° C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



The Ancor heat shrinkable ring terminal has a heat activated adhesive built into the heat shrinkable sleeve. When heated to 275°F (135°C), the connector shrinks to...

Frequently Asked Questions (FAQ) About Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

Who is the Ancor?
How to describe Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack?
What is the type of the product?
What is the gauge of the product?
What is the post size of the product?

Who is the Ancor?

Ancor was founded over 20 years ago to solve electrical problems experienced by mariners as they ventured offshore in large numbers. General purpose wire and components designed for on shore applications caused significant problems as electrical systems became more sophisticated and demanding.

How to describe Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack?

The Ancor heat shrinkable ring terminal has a heat activated adhesive built into the heat shrinkable sleeve. When heated to 275°F (135°C), the connector shrinks to...

What is the type of the product?

Ring Terminals

What is the gauge of the product?

16-14 AWG

What is the post size of the product?

3/8"


Save $9 when you buy the Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack for only $14 from NVN Marine! Same day shipping before 3pm.

Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack Technical Specifications

Type:

Electrical | Terminals

Vendor:

Ancor

Weight:

0.2 lb

Gauge:

16-14 AWG

Package Qty:

25

Heat Shrink:

Yes

Type:

Ring Terminals

Post Size:

3/8"

User Guide:

Download PDF
