Lowrance Outboard Pilot Cable Steer Autopilot Pack

The Lowrance Outboard Pilot Cable Steer Pack is a complete autopilot system add-on for Lowrance HDS multifunction displays, designed for boats up to 30 feet running a single outboard motor with cable steering. The pack includes everything needed to add autopilot capability to a typical small-to-mid-size outboard fishing or recreational boat.

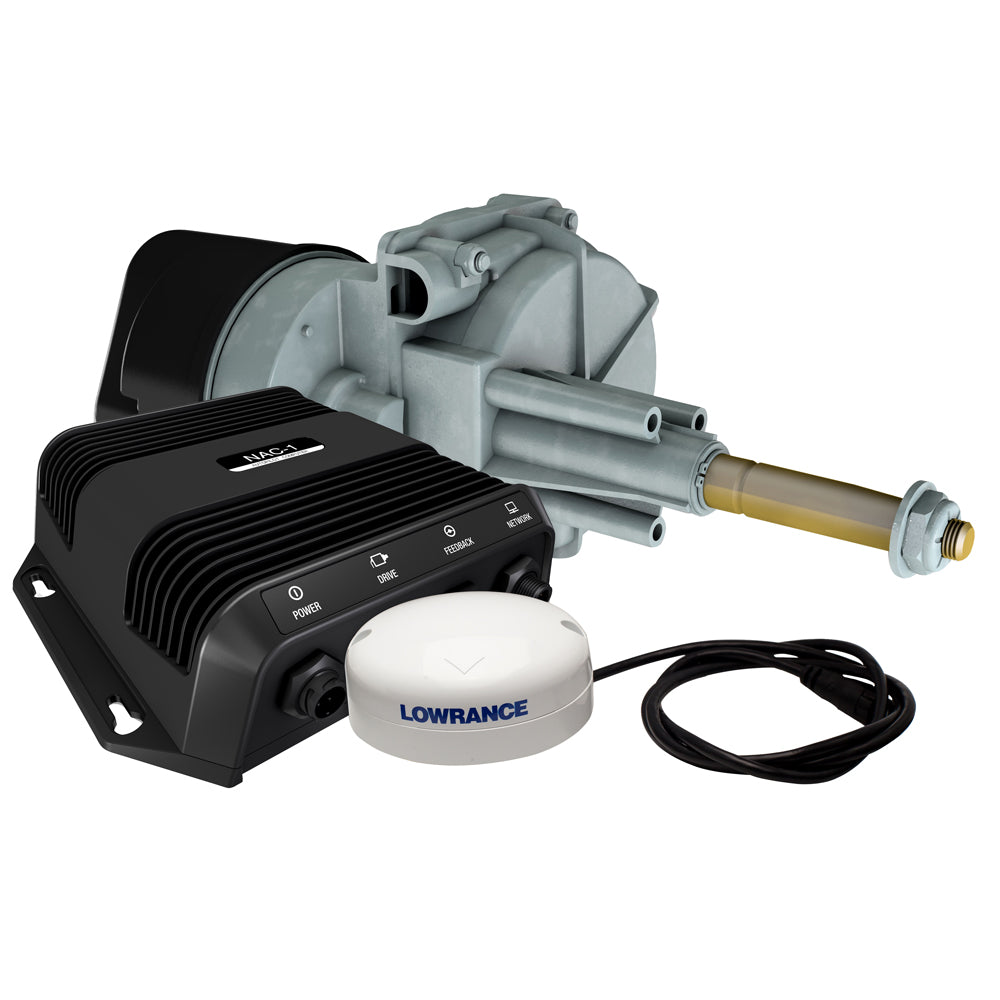

What's in the bundle. Five primary components in one box: (1) Point-1 AP Heading and GPS Sensor - provides the autopilot with both heading reference (which direction the boat is currently pointing) and GPS position (where the boat is in space). The combined sensor delivers the information the autopilot needs for both course holding and route navigation. (2) NAC-1 Autopilot Computer - the brain of the system. Calculates required rudder corrections based on heading error, GPS course error, sea state, and the boat's response characteristics. The NAC-1 also handles all the autopilot control algorithms and adaptive learning. (3) HELM-1 Cable-Steer Drive Unit - the actuator that physically pushes the steering cable to turn the outboard. The HELM-1 mounts on the outboard's steering arm linkage and applies the steering force the NAC-1 commands. (4) Standby-Auto Button - the dedicated dash button to engage and disengage autopilot. One push to engage, one push to disengage - simple operator interface. (5) Micro-C Network Components - the NMEA 2000 cabling and connectors needed to integrate all components with each other and with the HDS chartplotter.

HDS integration. When connected to a Lowrance HDS Gen2 or Gen2 Touch (or compatible later HDS generations), the Outboard Pilot delivers full autopilot capability accessible from the HDS chartplotter: (1) Hold a constant heading - the simplest autopilot mode. Set the boat on the desired heading, press Standby-Auto, the autopilot maintains that heading. (2) Steer to a waypoint - tap a waypoint on the HDS chart, activate autopilot navigation, the autopilot steers the boat to that waypoint. (3) Navigate along a route - load a multi-waypoint route on the HDS, the autopilot navigates through each waypoint in sequence. (4) Follow a saved trail - convert a historical trail (where you've been) into a navigable route the autopilot follows. (5) Automatic turn patterns - run preset turn patterns (U-turn, S-turn, circle) for repeated trolling passes. All autopilot modes engage and control from the HDS user interface - no separate autopilot display required.

SmartSteer trolling motor integration. The Lowrance SmartSteer interface integrates the outboard autopilot with the optional compatible electric-steer electric-steer trolling motor (if installed on the boat). Practical impact: one HDS user interface controls both your outboard via the cable-steer pilot AND your trolling motor via SmartSteer. Switch between outboard autopilot control and trolling motor control without switching between separate user interfaces or apps. For boats running both an outboard autopilot and an electric-steer trolling motor, this integration is meaningful - the same control surface handles both propulsion systems.

Virtual Rudder Feedback - the install simplification. VRF is the signature feature that eliminates the traditional need for a physical rudder position sensor. Traditional autopilots require a mechanical sensor mounted on the outboard steering linkage to tell the autopilot the current rudder angle. The feedback unit is a significant install complexity (precise mechanical mounting on the steering arm, electrical wiring, calibration during commissioning, ongoing maintenance) and a common field failure point (corrosion, mechanical wear, broken wiring from outboard movement). VRF uses Lowrance's adaptive control algorithm to determine rudder position from indirect signals (motor drive direction, heading response, GPS course change) - eliminating the physical sensor entirely. Practical install impact: dramatically simpler installation (no feedback unit mounting on the outboard steering linkage), no feedback sensor failure mode, no calibration of the feedback unit. Practical performance impact: the adaptive algorithm learns your specific boat's steering characteristics over time, eventually delivering tuned performance.

One-touch route creation from trails. The HDS records your boat's track as you operate - a continuous trail of GPS positions showing where you've been. The Outboard Pilot's interface lets you convert any saved trail into a navigable autopilot route with one button press: select the trail on the HDS, tap 'Create Route from Trail', and the autopilot can now navigate that exact path automatically. Critical for trolling productive water: find a productive trolling line by hand, save the trail, then have the autopilot repeat the exact line on subsequent passes while you focus on fishing instead of steering.

Automatic turn patterns. The autopilot supports preset turn patterns including U-turn (180-degree turn to reverse course), S-turn (zig-zag pattern across a line), circle (orbital pattern around a point), and other configurable patterns. Practical use cases: U-turn for repeating a productive trolling pass in the opposite direction, S-turn for sweep-pattern trolling across structure, circle for keeping the boat positioned around a fish target. Patterns engage from the HDS interface and the autopilot executes them automatically.

Boat sizing - up to 30 ft with single cable-steer outboard. The Outboard Pilot Cable Steer Pack is sized for boats up to 30 feet with single outboard motors using cable steering. Typical applications: 18-25 ft center consoles, walk-arounds, bay boats, and bass boats with cable-steer outboards in the 50-150 HP range. For boats outside this envelope, different autopilot configurations are appropriate: (1) Hydraulic-steered boats - use the Outboard Pilot Hydraulic Pack instead. Hydraulic steering systems need hydraulic pump autopilots, not cable drive units. (2) Boats over 30 ft - typical larger boats have higher steering loads that exceed the HELM-1 drive unit's capacity. Use larger autopilot variants sized for the application. (3) Boats with multiple outboards - cable-steer twin or triple outboard configurations need different autopilot integration. Contact Lowrance for sizing recommendations.

Cable-steer vs hydraulic-steer. Cable steering uses mechanical cables (similar to bicycle brake cables) from the helm wheel to the outboard - the helm wheel rotation pulls the cables which physically pivot the outboard. Hydraulic steering uses hydraulic fluid pressure from a pump at the helm to push the outboard via a hydraulic cylinder. The Cable Steer Pack only works with mechanical cable steering systems. Most boats over 20 ft with outboards above 100-150 HP use hydraulic steering (cable steering becomes impractical at higher steering loads). The Cable Steer Pack is appropriate for typical smaller / lower-HP cable-steer applications.

Plug-and-socket install. Throughout the system, all electrical connections use plug-and-socket connectors - no complex terminal wiring required. Components plug into each other and into the NMEA 2000 backbone using standard Micro-C connectors. Practical install impact: typical DIY install time of 4-8 hours vs 8-12 hours for traditional autopilot installs requiring custom terminal wiring. The included setup guide walks through first-time install step by step.

Install. Plan for 4-8 hours for an experienced installer. Tasks: (1) Mount the HELM-1 drive unit on the outboard's cable steering linkage per the included instructions. (2) Mount the NAC-1 autopilot computer in an accessible dry location. (3) Mount the Point-1 AP heading / GPS sensor at the boat's centerline away from magnetic interference. (4) Mount the Standby-Auto button at the helm within easy reach. (5) Connect all components via Micro-C plug-and-socket connections. (6) Connect the system to the HDS chartplotter via NMEA 2000. (7) Wire 12V power to the NAC-1 through a 15A fuse. (8) Configure the autopilot using the HDS setup wizard. (9) Sea-trial the system to allow adaptive learning to optimize performance.

Warranty. Lowrance 1-year limited warranty applies. Save the receipt and the original packaging. Warranty service runs through Lowrance's authorized service network and the Lowrance Advantage Service Program. Most field failures Lowrance sees in the Outboard Pilot line are install-related (incorrect HELM-1 mounting on the steering linkage causing binding, undersized power wiring, NMEA 2000 wiring issues) rather than autopilot defects - careful install delivers many years of reliable service.
