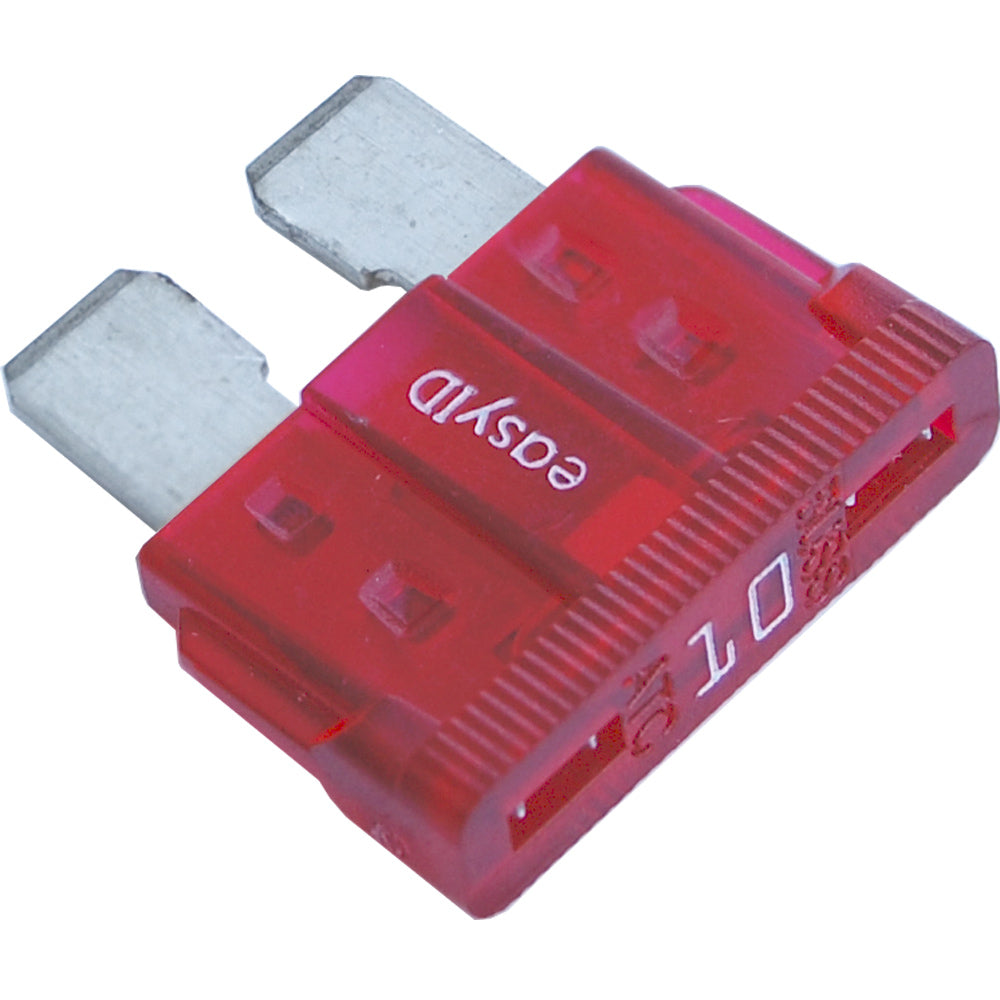

Blue Sea 5294 easyID ATC Fuse - 10 Amp

When excessive current flows in an electrical circuit, wire insulation can melt and possibly start a fire. Circuit breakers and fuses protect the wire in electrical circuits. Blue Sea Systems' selection of circuit breakers, fuses, fuse holders, and fuse blocks offer a range of choices for main and branch circuit protection. To help in the selection process, Blue Sea Systems developed the Circuit Wizard to determine the correct size wire and fuse or circuit breaker for the application.

Blue Sea 5294BSS Attributes

• Type: Blade
• Industry Classification: ATC
• Ampere Rating (A): 10 Amp
• Quantity: Set Of 2
• Slow Blow: No

Blue Sea 5294BSS Features & Benefits

• Tin-Plated Connector Blades For Corrosion Resistance
• Standard Circuit Protection Device For Automobiles And Trucks
• Fast-Acting Type Fuses Ideal For Electronic Devices
• Visible Indication Of Blown Condition
• Color Coded For Easy Identification
• No Supplier Warranty

Blue Sea 5294BSS Technical Bulletins

• 980012900.pdf
• 980012900.pdf

easyID Fuse 10 Amp

easyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards.

• Replaces non illuminating ATO® or ATC® fuses

• Fast acting

• Two per retail package

Specifications
Amperage; 10A
Interrupt Capacity: 1000A @ 32V DC
Blade Material: tin-plated

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Fuse ATC easy ID 10A, Mfg#5294, illuminated ATC blade fuse display is easy to find, the fuse is plugged under the dark dashboard. Replace the non-luminous ATO or ATC fuse, fast...
SKU: NVN-51741
MPN: 5294-BSS
UPC: 632085052942
