ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO

REBATE: $50 Mail-In Rebate w/Qualifying Purchases
October 1, 2020 - December 31, 2020

$517.83 $990.00 ( / )
SKU: NVN-51592 - UPC: 731797017642 - MPN: M506 41
It will be shipped by UPS Ground.
  • Plug and play function makes connection easy
  • Digital display, easy to use
  • Optional voice encryptor provides high-quality audio output

Hurry! Only 18 left in stock.

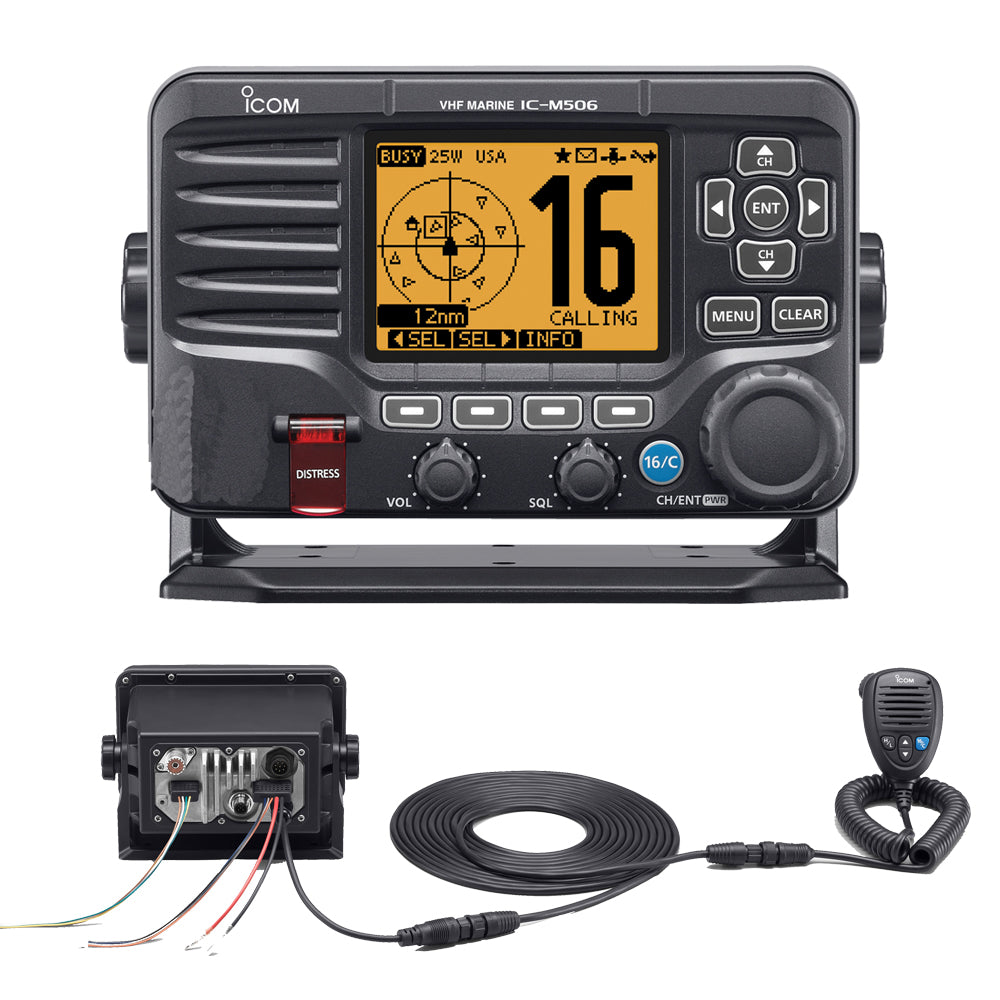

ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO PRODUCT DESCRIPTION

M506 VHF Fixed Mount with Rear Mic, AIS & NMEA 0183/2000® - Black

One Platform - Five Real World Solutions. A Fit For Every Need. Simply
the Best.


The Rear Mic model includes an integrated AIS receiver and NMEA
0183/2000®. Other built-in M506 features include:
  • 2 minute last call voice recording
  • Active noice cancelling
  • 25W two-way hailer and foghorn
  • Large dot-matrix display
  • Intuitive user interface
  • Built-in Class D DSC
  • IPX8 (advance waterproof rating)
  • COMMANDMICIV™ compatible


Integrated AIS Receiver
With an integrated AIS receiver, the IC-M506 can show AIS vessel traffic
information on the display. The AIS target call function allows you to
easily set up an individual DSC call. The Plotter, Target list and Danger
list can be toggled on the display.

NMEA 2000® and NMEA 0183 Connectivity
With the plug-and-play functionality of NMEA 2000, the IC-M506 can easily connect to a NMEA 2000 network and interconnect with other equipment. Also the NMEA 0183 input/output can be used for external GPS/NAV interface.

Last Call Voice Recording
The last call voice recording function automatically saves the last two minutes of the last incoming call. You can also start recording manually.

Active Noise Cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call.

25W Two-Way Hailer
When connected to an external hailer horn, you can talk to people on the deck or shore from the radio's microphone and can hear people's reply via the hailer horn. Foghorn and RX speaker functions are also available.

Optional COMMANDMIC™ HM-195B/SW
The optional COMMANDMIC, HM-195B/SW provides 2nd station capability for using the IC-M506 from a separate cabin or tower. Most functions including DSC and AIS functions can be controlled from the COMMANDMIC and can be used as an intercom between the IC-M506 and the COMMANDMIC.

Large LCD & Intuitive User Interface
The IC-M506 is equipped with 132x96 pixels dot-matrix display which is larger than the IC-M504 (132x64 pixels). Reading GPS, AIS, DSC and radio menus are easier than ever. The bottom line of the display shows the software key functions and the functions can be toggled with the left and right buttons.

Features:
  • 80dB (typical) IMD and channel selectivity
  • MA-500TR AIS transponder and Marine-Commander™ compatible
  • IPX8 submersible plus protection (1m depth for 60 minutes)
  • Rear panel microphone version
  • Optional voice scrambler


Icom M506 VHF radio with AIS receiver and rear-mounted MIc, with built-in Loudhailer/Foghorn, Nmea 2000, and remote function With integrated AIS receiver, Ic-M506 can display AIS ship traffic information on the display. With the AIS target call function, you can easily set up a single DSC call. The "Plotter", "Target" list and "Dangerous" list can be switched on the display. With the plug-and-play function of Nmea 2000, Ic-M506 can be easily connected to the Nmea 2000 network and interconnected with other devices. Nmea 0183 input/output can also be used for external Gps/nav interface. Icom M506 sets the standard for maritime communications. With the large 3.4-inch LCD, it is easier than ever to read Gps, Ais, DSC and radio menus. The bottom line of the display shows the software key functions, and the left and right buttons can be used to switch the functions. You can talk to people on deck or shore through the microphone of the radio, and you can hear people's echoes through the Heller horn; you can also use the Foghorn and RX speaker functions; the optional Commandmic Hm-195B / sw provides a second station Function Use Ic-M506 in a separate nacelle or tower, most functions (including DSC and AIS functions) can be controlled by Commandmic, and can be used as a walkie-talkie between Ic-M506 and Commandmic, built-in two-way active noise reduction The function can reduce the background noise by up to 90%, while improving the transmission effect of voice and incoming calls. The last call recording function automatically saves the last two minutes of the last call, and you can also start recording. The device can be immersed in the Ipx8 submersible, and an optional voice scrambler can be installed.

Icom M506 VHF radio with AIS receiver and rear-mounted MIc, with built-in Loudhailer/Foghorn, Nmea 2000, and remote function. Through the integrated AIS receiver, Ic-M506 can display AIS ship traffic information on the display. With the AIS target call function, you can easily set up a single DSC call. The "Plotter", "Target" list and "Dangerous" list can be switched on the display. With the plug-and-play function of Nmea 2000, Ic-M506 can be easily connected to the Nmea 2000 network and interconnected with other devices. Nmea 0183 input/output can also be used for external Gps/nav interface. Icom M506 sets the standard for maritime communications. With the large 3.4-inch LCD display, it is easier than ever to read Gps, Ais, DSC and radio menus. The bottom line of the display shows the software key functions, and the left and right buttons can be used to switch functions. You can talk to people on deck or ashore through the microphone of the radio, and hear people’s echoes through the Heller Horn. You can also use Foghorn and RX speaker functions; the optional Commandmic Hm-195B/sw provides a second station function. Use Ic-M506 in a separate cabin or tower, most functions (including DSC and AIS functions) can be controlled by Commandmic Control, and can be used as a walkie-talkie between Ic-M506 and Commandmic, built-in two-way active noise reduction function, this function can reduce the background noise by up to 90%, while improving the transmission effect of voice and incoming calls. The last call recording function will automatically save the last two minutes of the last call, and you can also start recording. The device can be immersed in the Ipx8 submersible, and an optional voice encryptor can be installed.

Icom M506 VHF Fixed Mount w/Rear Mic, AIS & NMEA 0183/2000® - Black Related Products

ICOM MB69 FLUSH MNT M45 M402 M304 M422
SHAKESPEARE 4187HD RATCHET MNT HEAVY DUTY
DIGITAL VHF 4FT 528-VW WHITE 4.5DB
ICOM COMMANDMIC IV WHITE HM195
ICOM SPEAKER MIC F/ M506 REAR CONNECTOR
Icom OPC1541 20 Foot Extension For HM162 HM195
Icom UT112 32 Code Scrambler


Save $472 when you buy the ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO for only $517 from NVN Marine! Same day shipping before 3pm.

ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO VIDEOS

ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO TECHNICAL SPECIFICATIONS

Type:

Communication -> VHF - Fixed Mount

Vendor:

Icom

Weight:

5.7 lb

Hailer:

Yes

Remote Mic Capable:

Yes

Scrambler Capable:

Yes

NMEA 2000:

Yes

Built-In GPS:

No

AIS:

Yes

Intercom Capability:

Yes

Color:

Black

Listen-Back:

Yes

User Guide:

Download PDF

Product Manual:

Download PDF

Product Brochure:

Download PDF

ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO USER REVIEWS

ICOM M506 VHF BLACK N2K/AIS REAR MIC RADIO SHIPPING & RETURN

Shipping Weight:

5.7 lb

Box Sizes:

7.00 (h) x 10.00 (w) x 13.00 (l)

Cubic Feet:

910.0

Returnable:

Yes
