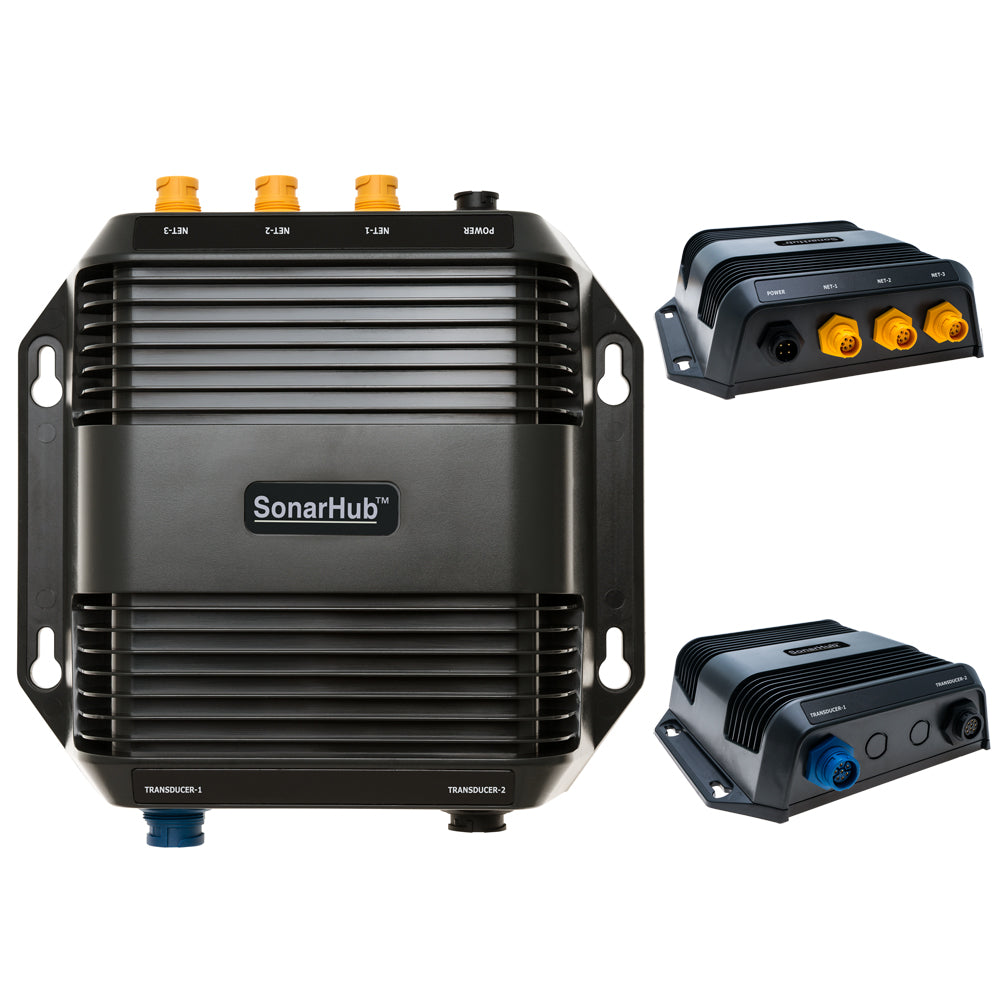

Navico SonarHub™ Sounder Module
Free Ground Shipping (2-6 Days Delivery Time)
It will be shipped by UPS Ground.
Shipping (3PM)
Within 30 days
Navico SonarHub™ Sounder Module Product Description
Upgrade your boating experience with the SonarHub Sounder Module, a game-changer for serious anglers chasing that perfect catch. This compact powerhouse slips seamlessly into your setup, transforming compatible Lowrance HDS and Simrad NS multifunction displays into high-performance sonar stations. Imagine pinpointing fish-holding structures and tracking schools with unprecedented clarity—no more guesswork on the water.
Experience Crystal-Clear Imaging Like Never Before
At the heart of the SonarHub lies its dual-threat sonar tech: StructureScan HD for side and down imaging at 455/800 kHz, paired with advanced CHIRP frequencies spanning 40-60 kHz and 130-210 kHz. This isn't just scanning; it's revealing the underwater world in stunning detail. StructureScan HD paints picture-perfect views of reefs, drop-offs, and submerged timber, helping you spot baitfish balls hugging the bottom or lurking in wrecks. Meanwhile, CHIRP sonar crafts those iconic fish arches with superior target separation, cutting through clutter even in choppy conditions.
Pair it with a narrow-band transducer like 50/83/200 kHz for traditional sweeps across vast areas, then switch to high-res modes for surgical precision. Anglers report finding hidden hotspots that traditional sonar misses, turning slow days into limits.
Effortless Setup for Maximum Time on the Water
Forget complicated wiring hassles. This plug-and-play module connects via Ethernet directly to your displays, with three built-in ports eliminating the need for extra hubs. It's designed for quick installs on everything from center consoles to bass boats. Mount it out of sight, run your transducer cables, and power up—your network sonar system is ready to roll. Real-world tip: Position transducers for minimal air bubbles to maximize down-imaging sharpness, especially in shallow bays.
Tailored Transducer Choices to Match Your Style
- Airmar TM150M or B150M: Transom or thru-hull CHIRP transducers for wide-cone coverage and noise-free returns, ideal for offshore runs or deep-water trolling.
- StructureScan HD Transducers: Legacy options that deliver side-scan ranges up to 300 feet per side, unveiling long-lost brush piles.
- SpotlightScan Compatibility: Bow-mounted surround scanning for forward-looking intel on structure ahead (note: direct HDS Gen2 Touch support available without the module).
Transducers sold separately, giving you flexibility to customize based on your boat's hull or fishing grounds.
Broad Compatibility Across Your Gear
Works flawlessly with Lowrance HDS Gen1 (basic modes), Gen2, and Gen2 Touch fishfinders/chartplotters, plus Simrad NSO, NSE, and NSS series. Network multiple units for shared sonar views across the helm. Backed by reliable service programs, it's built to handle the rigors of tournament fishing or family outings alike.
Why This Module Stands Out for Savvy Boaters
Beyond specs, the SonarHub shines in practical scenarios. Dial in split-screen views to overlay CHIRP fish returns on StructureScan images, revealing how bait moves with current. Noise rejection tech keeps readings steady in rough seas, and efficient pulse generation means longer battery life on kayaks or small crafts. Anglers upgrading from basic sounders often cite doubled catch rates in familiar waters, thanks to discovering overlooked sweet spots.
Frequently Asked Questions
What sonar frequencies does the SonarHub Sounder Module support?
It handles 455/800 kHz for StructureScan HD side and down imaging, 40-60 kHz and 130-210 kHz for CHIRP, plus compatibility with 50/83/200 kHz narrow-band transducers for versatile coverage.
Is the SonarHub easy to install on my boat?
Yes, it's a true plug-and-play solution with Ethernet connectivity and built-in ports, requiring minimal wiring. Most users complete setup in under an hour.
Which displays work with this sounder module?
Compatible with Lowrance HDS Gen1, Gen2, Gen2 Touch, and Simrad NSO, NSE, NSS series multifunction displays for networked sonar sharing.
Do I need to buy a transducer with the module?
The module is sold transducer-free, allowing you to select from options like Airmar CHIRP or StructureScan models based on your needs.
How does CHIRP on SonarHub improve fishfinding?
CHIRP uses swept frequencies for sharper target resolution, better noise rejection, and clear fish arches across a wide cone, outperforming single-frequency sonar in murky or deep water.
Can I use it for both freshwater and saltwater fishing?
Absolutely—its robust imaging excels in lakes for bass structure, rivers for walleye, and oceans for tuna schools or wrecks.
What's the advantage of StructureScan HD over standard down imaging?
It provides high-resolution side-scanning up to hundreds of feet, revealing fish along vertical walls or schools off to the sides that down imaging alone might miss.
The compact SonarHub sounder module provides an all-in-one solution for adding best-in-class StructureScan HD and CHIRP sonar capabilities to compatible Lowrance HDS and Simrad NS series multifunction displays.
An easy-to-install, plug-and-play, all-in-one network solution - the SonarHub Sounder Module makes it easier than ever to identify productive fishing areas with connectivity to the latest sonar technologies for Lowrance HDS and Simrad NS displays - including CHIRP and StructureScan HD imaging - as well as the Lowrance SpotlightScan bow-mounted solution for HDS Gen2 models.
Features
- Compact, all-in-one sonar module delivers StructureScan HD and CHIRP sonar technologies.
- CHIRP sonar with Airmar TM150M or B150M transducers delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets.
- StructureScan HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging to provide crystal-clear, picture-like views of what's beneath your boat.
- Optional transducers include Airmar TM150M and B150M single-channel CHIRP transducers, existing StructureScan HD transducers, and the SpotlightScan surround-scanning sonar transducer.*
- Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models, and Simrad NSO,NSE and NSS series multifunction displays.
- Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module.
- Supported by Lowrance Advantage Service and Simrad Advantage Service programs.
*SonarHub Sonar Module not required for SpotlightScan functionality with HDS Gen2 Touch displays.
Sonar imaging is unprecedented, all in one box! The underwater beauty is unparalleled! Lowrance's compact all-in-one waterproof SonarHub module and compatible Lowrance combined chartplotter/fishfinder system provide StructureScan HD and CHIRP Sonar functions. Lowrance SonarHub can clearly identify fish and seabed structures, and enhance target separation through CHIRP (Compressed High Intensity Radar Pulse), and receive photos of the image below through DownScan, and obtain the best-in-class side scan range and resolution through StructureScan HD. Lowrance SonarHub is an ideal plug-and-play type for installing HDS Gen2 and Gen2 Touch combination units (excluding SpotlightScan and CHIRP sonar) on HDS. SonarHub is even a SpotlightScan sensor compatible with the HDS Gen2/Gen2 Touch unit, which can view the scene in front of and around the spacecraft and identify hot spots before launching. The built-in three Ethernet ports provide easy-to-use networking options without the need to add other networking modules. SonarHub module has 500W RMS (StructureScan) and 250W RMS (CHIRP) transmission power, which is ideal for extending the current Lowrance HDS settings. A sensor is required and sold separately.
Navico SonarHub™ Sounder Module Related Products
Lowrance 20' Transducer Extension CableFrequently Asked Questions (FAQ) About Navico SonarHub™ Sounder Module
Who is the Navico?How to describe Navico SonarHub™ Sounder Module?
Who is the Navico?
How to describe Navico SonarHub™ Sounder Module?
- The SonarHub& 153; sounder module is a compact, all-in-one solution for adding best-in-class StructureScan HD and CHIRP sonar capabilities to compatible Lowrance HDS and Simrad NS series multifunction displays.
- With the SonarHub& 153; sounder module, you get access to the most advanced sonar technologies on the market.
- The SonarHub& 153; sounder module provides an all-in-one solution for adding best-in-class StructureScan HD and CHIRP sonar capabilities to compatible Lowrance HDS and Simrad NS series multifunction
- It gives you high resolution, high definition, and the ability to see fish before they're visible on your screen.
- SonarHub& 153; also includes a built in high sensitivity GPS antenna for accurate position data.
Navico SonarHub™ sounder module provides an all-in-one solution for adding best-in-class StructureScan® HD and CHIRP sonar capabilities to compatible Lowrance HDS and Simrad NS series multifunction displays.
Buy with the best price Navico SonarHub™ Sounder Module for only $686 from NVN Marine! Same day free shipping before 3pm.
Navico SonarHub™ Sounder Module Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Navico |
| Weight: |
3.0 lb |
Navico SonarHub™ Sounder Module User Reviews
Navico SonarHub™ Sounder Module Shipping & Return
| Shipping Weight: |
3.0 lb |
|---|---|
| Box Sizes: |
3.00 (h) x 10.00 (w) x 13.00 (l) |
| Cubic Feet: |
390.0 |
| Returnable: |
Yes |
