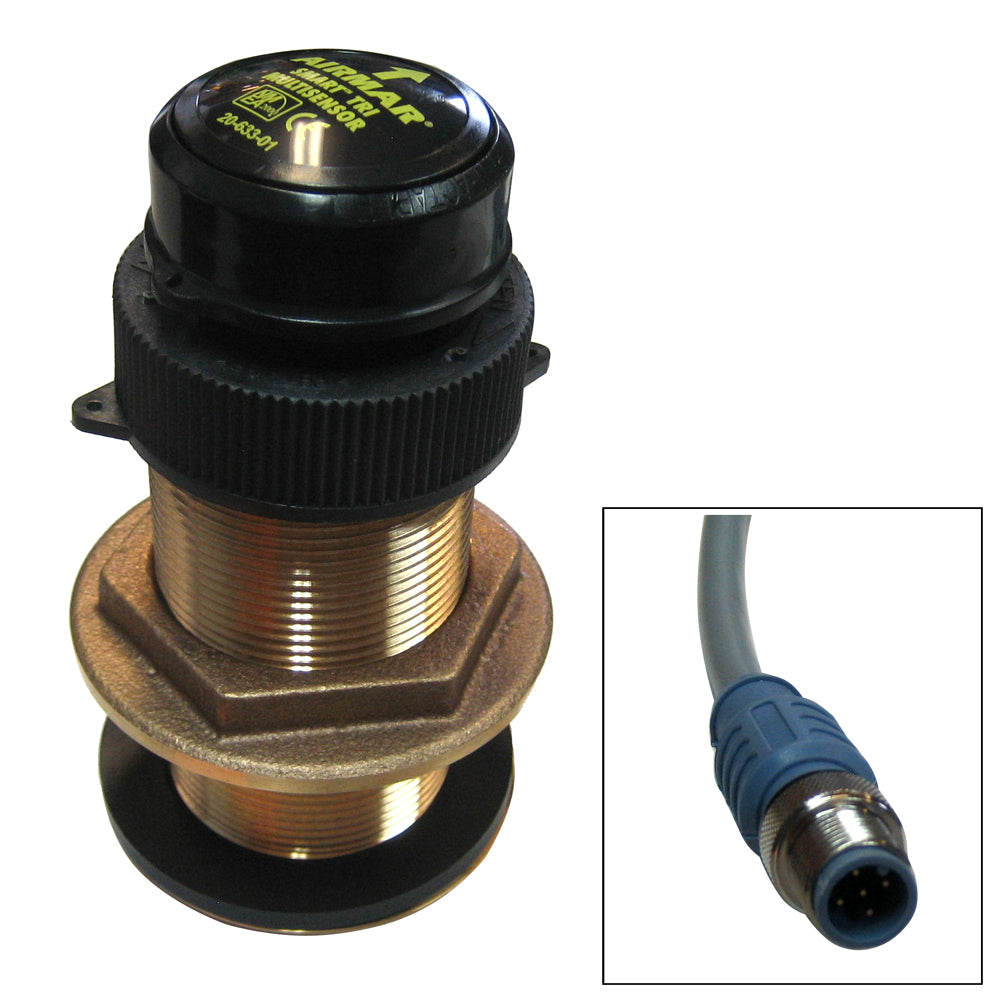

Furuno Smart Sensor DST-800MSF - Thru-Hull Transducer

Furuno Smart Sensor DST-800MSF - Thru-Hull Transducer Product Description

Furuno DST-800MSF - Airmar B617V Housing Style Transducer

The DST-800MSF offers depth, speed, and temperature in a single, 51mm (2") fitting. Only one hole through the hull simplifies the installation - an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer's wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-800MSF's reliable temperature sensor.

Standard Features:

• Depth, speed, and temperature in one compact bronze housing

• Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy

Weight: 1.6kg (3.5lb)
Acoustic Window: Urethane
Hull Deadrise: Up to 22°
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 70M (230')
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6m
NMEA 2000® Load Equivalency Number (LEN): 4

*p/nm = pulses per nautical mile

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

DST-800MSF provides depth, speed and temperature through a single 51 mm (2) connector. A hole through the hull simplifies the installation process, which is attractive to both shipbuilders and owners. Patented speed signal processing enhancements provide excellent paddle wheel accuracy of less than 5 knots (6 MPH) and smooth linear output at all ship speeds. Even when installed on a steep dead-skin hull or a reclining sailboat, the wide fan-shaped front beam of the transducer can find the bottom. With the reliable temperature sensor of DST-800MSF, you can also get real water temperature readings. The fast response temperature sensor can provide 0.2 C (0.1 F) accuracy.
