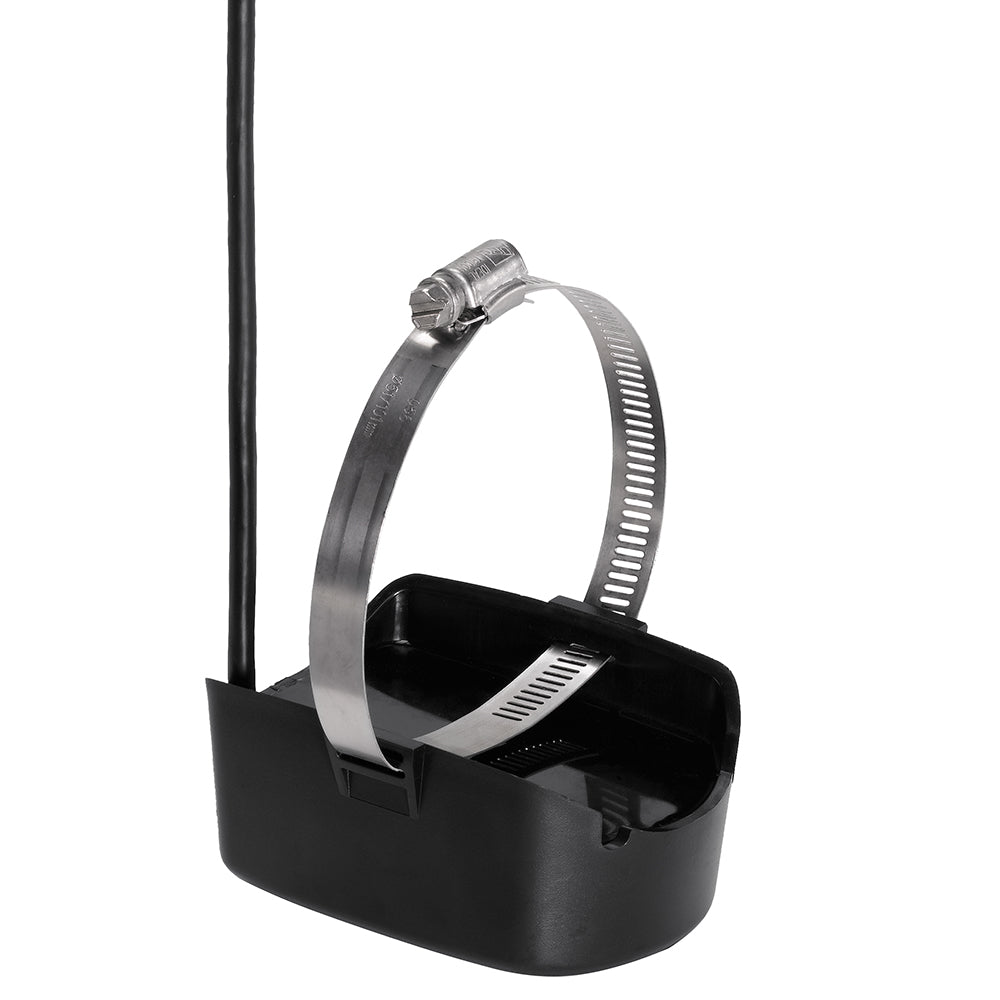

Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer
SKU: 42466 - UPC: 082324035852 - MPN: 710234-1
It will be shipped by UPS Ground.
It will be shipped by UPS Ground.
$137.29
$209.99
( / )
The XTM 9 DI 25 T trolling motor mount is a great solution for mounting a trolling motor onto a kayak. This mount is designed to fit the 25" Humminbird XTM 9 DI and comes with all necessary hardware.
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer Product Description
Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the harshest marine environment. We encourage you to read this manual carefully in order to get the full benefit from all the features and applications of your Humminbird product.
Humminbird 7102341 Attributes
- Mounting Location: Trolling Motor Mount
- Frequency Range: 200 kHz Beam Frequency, 455/ 800 kHz Operating Frequency
- Supported Angle: 75/ 45/ 25/ 16 Beam Angle
- Cable Length: 15 Feet
Humminbird 7102341 Features & Benefits
- Fishfinder For Humminbird Is Equipped With A High-Quality Transducer
- Designing And Manufacturing Top Quality, Thoroughly Reliable Marine Equipment
- Designed For Trouble-Free Use In Even The Harshest Marine Environment
- Made In USA
- Limited 1 Year Warranty
Humminbird 7102341 Installation Instructions
Humminbird 7102341 Warranties
Humminbird 7102341 Technical Bulletins
- 532651-1EN_A Transducer Resource Guide.pdf
- 532651-1EN_A Transducer Resource Guide.pdf
- 530511-8_A Trolling Motor Transducer Installation Guide.pdf
XTM 9 DI 25 T Trolling Motor Mount Transducer
Trolling Motor Mount Transducer
Down Imaging/DualBeam Plus, 75°/45°, 455/800 kHz (DI) and 25°/16°, 200/455 kHz, with built in temperature, 15' Cable. Low profile design minimize snags. Easy installation, all hardware included.
For Use With:
- 700 Series, 788ci HD DI Combo
- 500 Series, 597ci HD DI Combo, 596c HD DI, 587ci HD DI, 581i HD DI, 571 HD DI, 570 DI, 561 DI
- 300 Series, 386ci DI Combo, 385ci DI Combo, 346c DI Combo, 345c DI Combo
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Equipped with Down Imaging and DualBeam Plus technology, images can be easily read. 455/800kHz (angle from 75 to 45) and 200/455kHz (angle from 25 to 16). Including installation...
Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer Related Products
Humminbird EC M10 Transducer Extension Cable - 10'Humminbird EC M30 Transducer Extension Cable - 30'
Frequently Asked Questions (FAQ) About Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer
Who is the Humminbird?How to describe Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer?
What is the type of the product?
How many pins exists in the connector of the product?
What is the weight of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer?
This product can read the temprature?
What is the imagining type of the product?
What is the length of cable (feet)?
What is the length of cable?
Is this product supporting CHIRP and what's the type?
Who is the Humminbird?
Humminbird is America's Favorite Fishfinder brand. For over 30 years we've been a leader in providing the recreational angler exciting, innovative fishfinders, depth sounders, marine radios and GPS systems. Humminbird introduced many of the exciting innovative products and features that are in wide use today, and will continue to introduce cutting edge smart technology products in the future.
How to describe Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer?
Equipped with Down Imaging and DualBeam Plus technology, images can be easily read. 455/800kHz (angle from 75 to 45) and 200/455kHz (angle from 25 to 16). Including installation...
- The XTM 9 DI 25 T is a Low Profile Design with an integrated transducer
- With a 455/800 kHz (DI) and 25& 176;/16& 176;, 200/455 kHz, the XTM 9 DI 25 T offers both Down Imaging and DualBeam Plus
- It comes with built in temperature sensor and 15' Cable.
- The low profile design of this transducer mount is perfect for trolling motors.
- It's made with a durable, high-impact plastic housing and provides a low profile, stealthy installation.
- The Down Imaging& 153;/DualBeam Plus& 153; sonar system provides detailed images of fish even in deep water.
The Humminbird XTM 9 DI 25 T is a high-performance, high-sensitivity sonar unit that features a dual beam transducer and a 455/800 kHz frequency. With its powerful performance and easy installation, this sonar unit is the perfect choice for any angler.
What is the type of the product?
Down Imaging©/DualBeam Plus©, 75°/45°, 455/800 kHz (DI) and 25°/16°, 200/455 kHz, with built in temperature, 15' Cable.
- The XTM 9 DI 25 T is a Low Profile Design with an integrated transducer
- With a 455/800 kHz (DI) and 25& 176;/16& 176;, 200/455 kHz, the XTM 9 DI 25 T offers both Down Imaging and DualBeam Plus
- It comes with built in temperature sensor and 15' Cable.
- The low profile design of this transducer mount is perfect for trolling motors.
- It's made with a durable, high-impact plastic housing and provides a low profile, stealthy installation.
- The Down Imaging& 153;/DualBeam Plus& 153; sonar system provides detailed images of fish even in deep water.
- Low profile design to minimize snags and make it perfect for fishing in tight spots.
- The DI and DualBeam Plus sonar combine for a wide range of scanning.
- Comes with all the hardware you need, so installation is as easy as 1, 2, 3.
- Get a clear view of what's going on beneath the surface with Down Imaging™/DualBeam Plus™, 75& 176;/45& 176;, 455/800 kHz (DI) and 25& 176;/16& 176;, 200/455 kHz.
- The low profile design minimizes snags and provides easy installation with all hardware included.
How many pins exists in the connector of the product?
7
What is the weight of the product?
1.63
Speed feature included to the product?
No
How to mount or what is the mounting style of Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer?
Trolling Motor
This product can read the temprature?
Yes
What is the imagining type of the product?
Standard/Down
What is the length of cable (feet)?
15'
What is the length of cable?
15 Feet
Is this product supporting CHIRP and what's the type?
No
Save $72 when you buy the Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer for only $137 from NVN Marine! Same day shipping before 3pm.
Humminbird XTM 9 DI 25 T Trolling Motor Mount Transducer Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Humminbird |
| Weight: |
1.0 lb |
| Temperature: |
Yes |
| Speed Included: |
No |
| Pins: |
7 |
| Mounting Style: |
Trolling Motor |
| Imagining: |
Standard/Down |
| Chirp: |
No |
| Cable Length (Feet): |
15' |
| Product Manual: | |
| Product Installation: |
