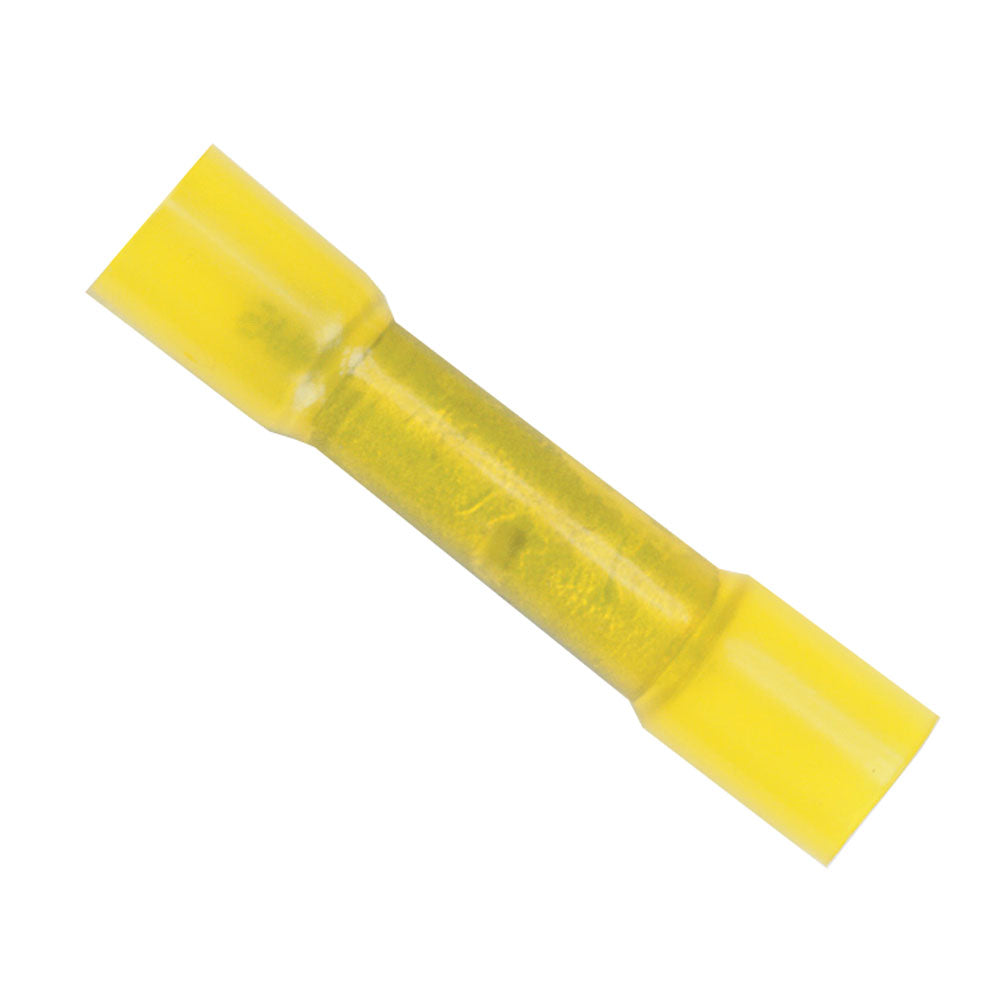

Ancor 12-10 Heatshrink Butt Connectors - 100-Pack

Ancor 12-10 Heatshrink Butt Connectors - 100-Pack Product Description

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.

Ancor 309299 Attributes

• Type: Heat Shrink Butt
• Gauge Wire: 12-10 Gauge
• Color: Yellow
• Material: Copper
• Quantity: Pack Of 100

Ancor 309299 Features & Benefits

• Tinned For Corrosion Resistance
• Pure Copper For Maximum Current Flow
• Brazed Seam For Maximum Strength
• Heat Activated Adhesive Built Into The Sleeve Of The Heat Shrink Tubing
• Shrinks To Form A Water Tight Seal And Ultimate Vibration And Strain Relief
• No Supplier Warranty

Ancor 309299 Technical Bulletins

• 313938-9193.pdf

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 12-10

• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



The heat-activated adhesive lining can seal salt water, oil, acid and sunlight, and relieve stress. Nylon insulators, the first choice of experts, used for...



Frequently Asked Questions (FAQ) About Ancor 12-10 Heatshrink Butt Connectors - 100-Pack

Who is the Ancor?
How to describe Ancor 12-10 Heatshrink Butt Connectors - 100-Pack?
What is the type of the product?
What is the material of Ancor 12-10 Heatshrink Butt Connectors - 100-Pack?
What is the gauge of the product?
What is the weight of the product?
What's the color of Ancor 12-10 Heatshrink Butt Connectors - 100-Pack?
Is this product is ISO approved?


Who is the Ancor?

Ancor was founded over 20 years ago to solve electrical problems experienced by mariners as they ventured offshore in large numbers. General purpose wire and components designed for on shore applications caused significant problems as electrical systems became more sophisticated and demanding.

How to describe Ancor 12-10 Heatshrink Butt Connectors - 100-Pack?

The heat-activated adhesive lining can seal salt water, oil, acid and sunlight, and relieve stress. Nylon insulators, the first choice of experts, used for...

What is the type of the product?

Heat Shrink Butt

What is the material of Ancor 12-10 Heatshrink Butt Connectors - 100-Pack?

Copper

What is the gauge of the product?

12-10 AWG

What is the weight of the product?

1

What's the color of Ancor 12-10 Heatshrink Butt Connectors - 100-Pack?

Yellow

Is this product is ISO approved?

UL
CSA
