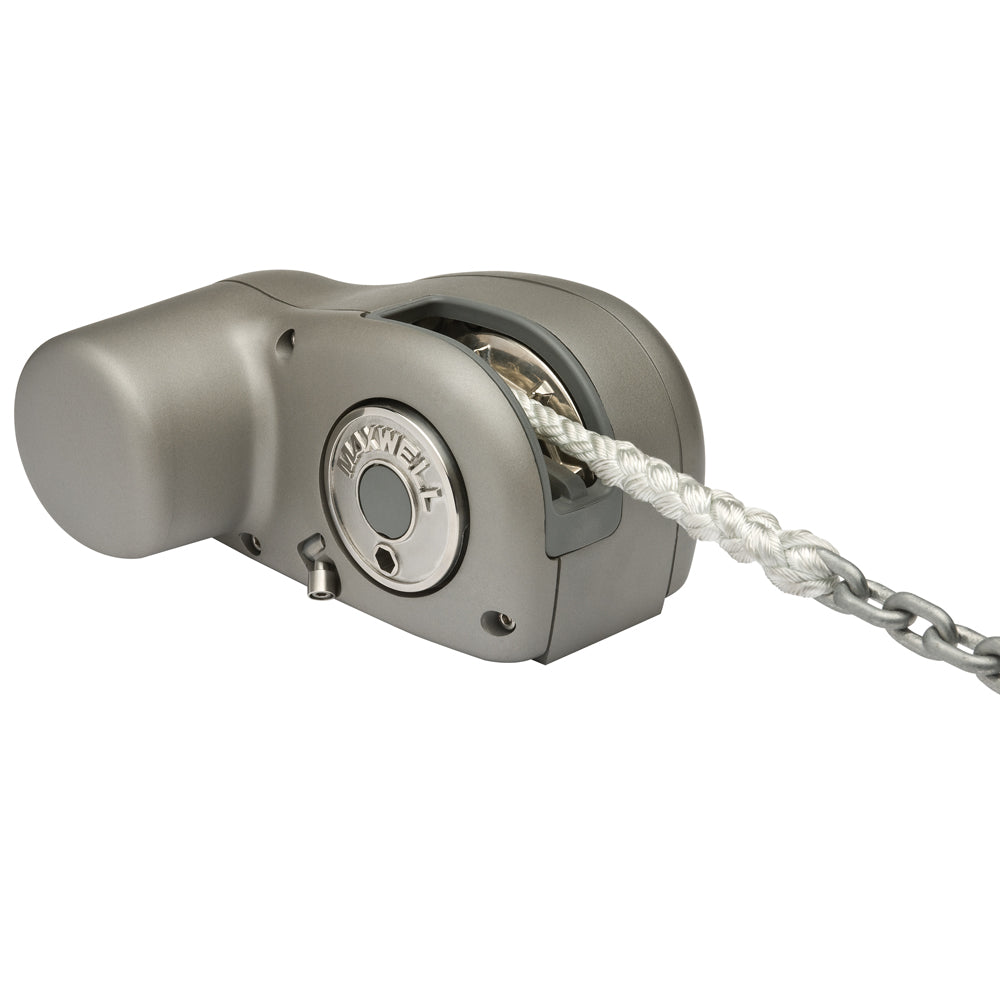

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope

Fast & Free Shipping (1-3 Days Delivery Time)

SKU: 41166 - UPC: 1000000002744 - MPN: HRCFF612V
$1,226.00 $1,634.00 ( / )

Available Stock : 15

The Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain is designed for use with the Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain.
Maxwell
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope Product Description

Maxwell HRC FF Rope/Chain SeriesHorizontal Mount with Above-Deck Motor Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass Free Fall lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the free fall device automatically disengages allowing you to power up your anchor. Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance. Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.

Maxwell HRCFF612V Attributes

  • Dimensions: 10.2''L x 10.4''W x 5.9''H; Wt 25 lbs
  • Input Voltage: 12VDC
  • Lifting Capacity: 900 Lbs.
  • Mounting Type: Horizontal, above deck
  • Other Functions: Available foot switch and chain counter
  • Power: 600W
  • Rope & Chain Size: 1/4'' chain; 1/2'' rope
  • Speed Rating: 108FT/Minute

Maxwell HRCFF612V Features & Benefits

  • Simple bolt down installation ensures effortless and rapid on-deck installation and set up.
  • Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.
  • Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.
  • High efficiency spur gearbox incorporating a robust non-backwind mechanism.
  • High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.
  • Emergency free fall function in the event of onboard power failure. Activated by the supplied, emergency Free Fall lever.
  • Revolutionary new chainwheel.
  • Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation.
  • Limited 3 Year Warranty

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC6

  • Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
  • Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
  • Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
  • High efficiency spur gearbox incorporating a robust non-backwind mechanism
  • High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
  • Emergency "free fall" function in the event of onboard power failure
  • Revolutionary new chainwheel - see over
  • Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
  • Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
  • Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
  • Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection

Specifications:

  • Model: HRC6
  • Maximum Pull: 900lbs
  • Chain Short Link: 1/4"
  • Rope Size (Nylon): 1/2"
  • Line Speed(Anchor Retrieval): 108'/min
  • Power Supply(DC): 12V or 24V
  • Motor Power: 600W
  • Net Weight: 25lbs


The new compact HRC6 and HRC8 are the horizontal versions of Maxwell's latest innovative vertical vertical RC6 and RC8 automatic rope/chain windlass. The new HRC6 and HRC8 contain proven original features, including the ride management technology developed by Maxwell. The simple "bolted" installation of HRC6 ensures easy and fast installation and setup on the deck. In a safe closed design, the innovative, tried-and-tested and patented compression arm system ensures a trouble-free riding transition from rope to chain. Integrated composite nylon, through the deck Hough tube, easy to install, smooth operation and barrier-free. Efficient spur gear transmission adopts a robust non-upwind mechanism. High-speed non-blocking retrieval of ropes and chains controlled by the Up/Down switch installed on the remote panel. Emergency "free fall" function when onboard power fails. Revolutionary new sprocket-view. A heavy-duty two-way motor incorporating new technical functions, including integrated wiring for quick electrical installation, can be easily disassembled for regular brush maintenance. Now adopts Maxwell's automatic free fall technology. Just activate the "free fall" joystick of the windlass and operate the down control button (helmet station or foot switch), and the windlass can make the anchor free fall. Are you ready to lift the anchor? Activate the upward control, and the "free fall" device will automatically disengage, thus energizing your anchor. The beautiful deck design encapsulates the motor and driver in an impermeable shell, which saves space under the deck and simplifies routine maintenance. The die-cast marine grade alloy shell is hard anodized to provide unparalleled marine protection. Please contact your nearest Maxwell office for a complete list of service centers and distributors.

Maxwell P19007 Covered Footswitch (White)
Maxwell P19001 Footswitch (Chrome Bezel)
Maxwell P19006 Covered Footswitch (Black)
Maxwell Remote Up/ Down Control
Maxwell AA560 Rope Chain or All Chain Counter Control - Black
Maxwell AA150 Chain & Rope Counter
Blue Sea 7083 50 Amp Circuit Breaker Panel Mount 285 Series
Maxwell Anchor Swivel Shackle SS - 6-8mm - 750kg
Maxwell Wireless Remote Handheld w/Rode Counter
Maxwell Up/Down Footswitch - Compact, White


Frequently Asked Questions (FAQ) About Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope

Who is the Maxwell?
How to describe Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope?
What is the rope diameter of the product?
What is the mounting type of the product?
What is the dimensions of the product?
Has a freefall feature?
What is chain diameter of this product?
Is this product vertical or horizontal?

Who is the Maxwell?

For three decades, the name Maxwell has been synonymous with the highest standards of performance in providing anchoring solutions for superyachts, pleasure boats and commercial vessels. Our international reputation for excellence has evolved through ongoing R & D, innovative design, customer service and a commitment to style and quality that is unparalleled in the industry.

How to describe Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope?

The new compact HRC6 and HRC8 are the horizontal versions of Maxwell's latest innovative vertical vertical RC6 and RC8 automatic rope/chain windlass. The new HRC6 and HRC8 contain proven original features, including the ride management technology developed by Maxwell. The simple "bolted" installation of HRC6 ensures easy and fast installation and setup on the deck. In a safe closed design, the innovative, tried-and-tested and patented compression arm system ensures a trouble-free riding transition from rope to chain. Integrated composite nylon, through the deck Hough tube, easy to install, smooth operation and barrier-free. Efficient spur gear transmission adopts a robust non-upwind mechanism. High-speed non-blocking retrieval of ropes and chains controlled by the Up/Down switch installed on the remote panel. Emergency "free fall" function when onboard power fails. Revolutionary new sprocket-view. A heavy-duty two-way motor incorporating new technical functions, including integrated wiring for quick electrical installation, can be easily disassembled for regular brush maintenance. Now adopts Maxwell's automatic free fall technology. Just activate the "free fall" joystick of the windlass and operate the down control button (helmet station or foot switch), and the windlass can make the anchor free fall. Are you ready to lift the anchor? Activate the upward control, and the "free fall" device will automatically disengage, thus energizing your anchor. The beautiful deck design encapsulates the motor and driver in an impermeable shell, which saves space under the deck and simplifies routine maintenance. The die-cast marine grade alloy shell is hard anodized to provide unparalleled marine protection. Please contact your nearest Maxwell office for a complete list of service centers and distributors.
  • HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses.
  • The HRC6 and HRC8 are packed with original and proven features including rode management, a large drum for high capacity, easy-to-adjust handlebar for fast operation, large diameter sheaves for increased grip strength on the rope or chain, and a powerful gearbox for increased torque.
  • The HRC6 and HRC8 are the horizontal versions of our latest innovative vertical RC6 and RC8 automatic rope/chain windlasses.
  • The new HRC6 and HRC8 are packed with original features including rode management.
  • Compact design for easy installation on small boats
  • Rope management system to keep ropes neat and tidy
  • Easy operation with single hand operation
  • Automatic rope/chain winding

What is the rope diameter of the product?

1/2"
  • HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses.
  • The HRC6 and HRC8 are packed with original and proven features including rode management, a large drum for high capacity, easy-to-adjust handlebar for fast operation, large diameter sheaves for increased grip strength on the rope or chain, and a powerful gearbox for increased torque.
  • The HRC6 and HRC8 are the horizontal versions of our latest innovative vertical RC6 and RC8 automatic rope/chain windlasses.
  • The new HRC6 and HRC8 are packed with original features including rode management.
  • Compact design for easy installation on small boats
  • Rope management system to keep ropes neat and tidy
  • Easy operation with single hand operation
  • Automatic rope/chain winding

What is the mounting type of the product?

Horizontal, above deck

What is the dimensions of the product?

10.2''L x 10.4''W x 5.9''H; Wt 25 lbs

Has a freefall feature?

Yes

What is chain diameter of this product?

1/4"

Is this product vertical or horizontal?

Horizontal


Save $408 when you buy the Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope for only $1226 from NVN Marine! Same day fast and free shipping before 3pm.

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope Technical Specifications

Type:

Anchoring & Docking | Windlasses

Vendor:

Maxwell

Weight:

29.0 lb

Chain - Diameter (Inches):

1/4"

Freefall:

Yes

Rope Diameter (Inches):

1/2"

Vertical/Horizontal:

Horizontal

Product Brochure:

Download PDF

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope User Reviews

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope Shipping & Return

Shipping Weight:

29.0 lb

Box Sizes:

10.00 (h) x 14.00 (w) x 15.00 (l)
