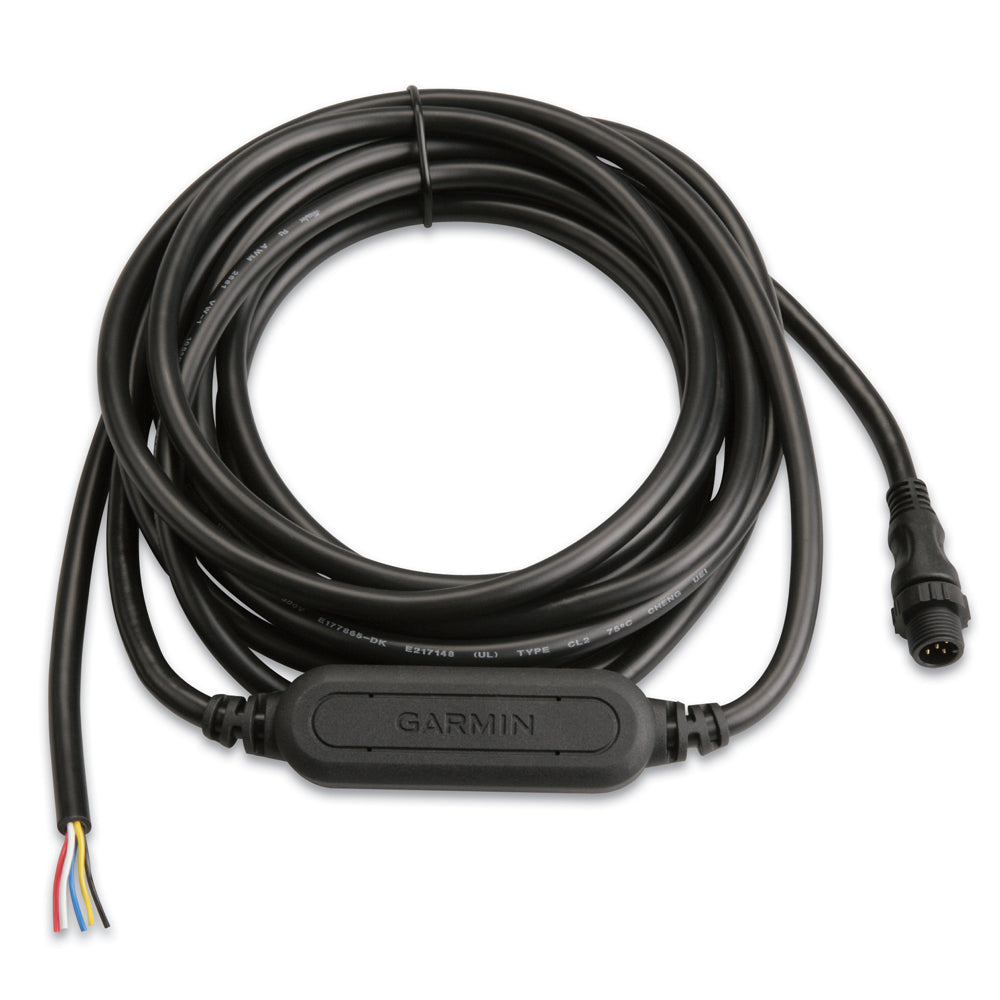

Upgrade your boat's monitoring system without the hassle of ripping out old equipment. The Garmin GFL 10 Fluid Level NMEA 2000 Analog Adapter bridges the gap between legacy analog fluid sensors and modern digital networks, letting you track tank levels like fuel or water right on your Garmin displays. Boaters love how this compact device revitalizes dashboards, turning outdated gauges into seamless data feeds across your NMEA 2000 backbone.
Why Choose the Garmin GFL 10 for Your Vessel?
Imagine glancing at your multifunction display to see precise fluid levels instead of squinting at faded analog dials. This adapter captures signals from existing tank sensors—those resistive types common on most boats—and translates them into reliable NMEA 2000 data. No more guesswork on long offshore runs; get real-time insights that integrate perfectly with Garmin's ecosystem, enhancing safety and efficiency on the water.
Perfect for retrofitting older boats, it saves you thousands by preserving your current sensors. Saltwater corrosion and vibration? This rugged unit handles it, operating smoothly from chilly 5°F mornings to scorching 158°F afternoons. Its black housing blends into any helm, and the 16-foot cable reaches tricky installations without extensions.
Key Features That Make a Difference
- Analog-to-Digital Magic: Converts fluid-level sensor outputs (0-5V or 0-250 ohms) into NMEA 2000 PGN 127505 for fluid level monitoring.
- Plug-and-Play Simplicity: Drop it into your NMEA 2000 network powered by the bus itself (9-16VDC), drawing just 1W max—no extra wiring headaches.
- Versatile Compatibility: Works with Garmin chartplotters like ECHOMAP UHD and Ultra series, GPSMAP models, GMI 20 instruments, and more. View data on high-res screens for customizable dashboards.
- Compact and Tough: Measures a slim 3-3/32" x 31/32" x 43/64", mounting anywhere from bulkheads to consoles.
- Backed by Garmin Reliability: Built for marine environments with a limited 1-year warranty, ensuring peace of mind.
Real-World Benefits for Boaters
Whether you're a weekend cruiser or serious offshore angler, accurate fluid monitoring prevents surprises. Pair it with Garmin's GMI 10 or 20 for dedicated analog-style readouts with digital precision—fuel remaining as a percentage, low-level alarms, and trend graphs. It shines in multi-tank setups, distinguishing between port/starboard fuel or freshwater/holding tanks via simple configuration.
Expert tip: Calibrate during install for spot-on accuracy. Fill tanks to full/empty and quarter marks, then use your Garmin display's setup menu to match readings. This beats factory defaults, especially if your sensors have aged unevenly from ethanol fuels or bio-diesel.
Effortless Installation Guide
Getting started takes under an hour for most setups. Disconnect power, connect your analog sensor leads (typically black to ground, colored to signal), then T-connector into the NMEA 2000 drop cable. Power cycles automatically. Use Garmin's intuitive software—no PC needed—to assign tank instances and set units (US gallons, liters, etc.).
Common pitfalls? Double-check polarity and resistance range; most boat sensors are 240-33 ohms full-to-empty (US standard) or 10-180k ohms (Euro). Test continuity to avoid false empties mid-trip. Secure with zip ties against engine vibes for longevity.
Specifications at a Glance
| Specification | Details |
|---|---|
| Power Input | 9-16 VDC from NMEA 2000 bus |
| Power Draw | 1W maximum |
| Cable Length | 16 feet (4.9 m) |
| Dimensions (L x W x H) | 3-3/32" x 31/32" x 43/64" (78.6 x 24.7 x 17.0 mm) |
| Operating Temperature | 5°F to 158°F (-15°C to 70°C) |
| Color | Black |
Frequently Asked Questions
What types of fluid sensors work with the Garmin GFL 10?
It supports common marine resistive sensors (e.g., 0-250 ohms, 240-33 ohms) and voltage-output types (0-5V). Check your sensor's specs—most boat fuel, water, and waste tanks are compatible.
Do I need to replace my existing tank sensors?
No! The GFL 10 reads directly from your analog sensors, saving you the labor and cost of new digital ones.
How do I configure tank levels on my Garmin display?
Via the display's NMEA 2000 menu: Select fluid instance, calibrate at empty/full, and assign tank type/location. It's straightforward with on-screen prompts.
Can it monitor multiple tanks?
Yes, one GFL 10 per tank. Daisy-chain on the NMEA 2000 bus and label instances (e.g., Fuel Port, Water) for organized views.
Is the GFL 10 waterproof?
It's rated for harsh marine conditions but mount it in a dry area away from direct spray. IPX7-like protection keeps it reliable.
What if my readings are inaccurate after install?
Recalibrate: Drain/refill to known levels and adjust points. Clean sensor probes if fouled by sediment or fuel varnish.
Does it work with non-Garmin NMEA 2000 displays?
Absolutely, as it outputs standard PGNs readable by any compliant MFD from Raymarine, Simrad, Lowrance, etc.
Transform your helm today—reliable fluid tracking starts with the Garmin GFL 10, the smart choice for savvy skippers.
The NMEA 2000 analog adapters from Garmin are easy to add to any existing marine network. Once installed, the data from the adapters can be viewed via the GMI™ 10 Marine Instrument Display and other compatible Garmin devices. This easy-to-use set-up will help you bring your older dashboard into the digital age.
Garmin 101132600 Attributes
- Compatibility: ECHOMAP™ UHD, ECHOMAP™ Ultra, GMI™ 20, GPSMAP(R)
- Power Input: 9 To 16 Volt
- Dimensions: 3-3/32 Inch Length X 31/32 Inch Width X 43/64 Inch Height
- Cable Length: 16 Feet
- Temperature Range: 5 Degree To 158 Degree Fahrenheit
- Color: Black
Garmin 101132600 Features & Benefits
- Give New Life To Your Old Gauges By Making The Transition From Analog To Digital
- Simple-To-Install Adapter Takes The Data Generated By Traditional Analog Gauges And Converts The Data Into A NMEA 2000® Signal
- With The GFL 10 Adapter, You Can Convert Analog Information Provided Via The Fluid-Level Sensor On Your Boat To Your NMEA 2000 Network
- GFL 10 Allows You To Observe Fluid-Level Information On Compatible Garmin Display Devices Connected To Your NMEA 2000 Network
- Limited 1 Year Warranty
Garmin 101132600 Installation Instructions
- Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
- GFL10FluidLevelAdapter_InstallationandConfigurationInsturctions.pdf
Garmin 101132600 Warranties
Garmin 101132600 Technical Bulletins
The new NMEA 2000 analog adapters are the perfect accessories to bring any helm into the digital age. Simple to install and easy to set up, the NMEA 2000 adapters take signals generated by traditional analog gauges and sensors and convert that data into NMEA 2000 format. The data can then be broadcast over NMEA 2000 protocol to the Garmin GMI 10 multifunction instrument display. The combination of these adapters with a Garmin GMI 10 will transform even the most out-of-date dashboard into a glass, digital helm.
"With the GFL 10 fluid level analog adapter aboard your vessel, you can give new life to your old gauges by making the transition from analog to digital. This simple-to-install adapter takes the data generated by traditional analog gauges and converts the data into a NMEA 2000 signal so you can create or expand your network without replacing all of the equipment on your boat. With the GFL 10 adapter, you can convert analog information provided via the fluid-level sensor on your boat to your NMEA 2000 network. The GFL 10 allows you to observe fluid-level information on compatible Garmin display devices connected to your NMEA 2000 network."
