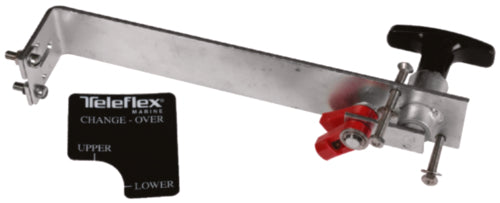

Seastar 204993 Dual Station Selector Unit

Seastar 204993 Dual Station Selector Unit Product Description

The new Dual Station (DS) unit is designed for inboard or sterndrive boaters that like using one lever to do both throttle and shift in their dual station boat. The Station Selector allows smooth operation of dual function controls in a dual station application. Great for dual station boats without a lot of dash space or for use with side mounted controls in two stations. Just put both levers in neutral, turn the selector switch, and you have changed stations. Teleflex recommends to only use CCX633xx cables with the DS Unit. Note: Throttle cables should be a pull to advance throttle set up. Engine adapter kits for the control cables are needed unless provided by the manufacturer. Control boxes not included.
Parts Required:
Single Engine Dual Stations:
1 DS Gear Unit (207573)
1 Station Selector Unit (204993)
1 DS Throttle Unit (177030)
1 cable from Selector to DS Gear Unit (CCX633xx)
1 cable from Station 1 to DS Gear Unit (CCX633xx)
1 cable from Station 2 to DS Gear Unit (CCX633xx)
1 cable from DS Gear Unit to transmission (CCX633xx)
1 cable from Station 1 to DS Throttle Unit (CCX633xx)
1 cable from Station 2 to DS Throttle Unit (CCX633xx)
1 engine adapter kit for control cables (unless provided by mfg)
Dual Engine Dual Stations:
2 DS Gear Unit (207573)
1 Station Selector Unit (204993)
2 DS Throttle Unit (177030)
2 cables from Selector to DS Gear Unit (CCX633xx)
1 cable from Port Station 1 to DS Gear Unit (CCX633xx)
1 cable from Starboard Station 1 to DS Gear Unit (CCX633xx)
1 cable from Port Station 2 to DS Gear Unit (CCX633xx)
1 cable from Starboard Station 2 to DS Gear Unit (CCX633xx)
2 cables from DS Gear Units to transmissions (CCX633xx)
1 cable from Port Station 1 to DS Throttle Unit (CCX633xx)
1 cable from Starboard Station 1 to DS Throttle Unit (CCX633xx)
1 cable from Port Station 2 to DS Throttle Unit (CCX633xx)
1 cable from Starboard Station 2 to DS Throttle Unit (CCX633xx)
2 engine adapter kits for control cables (unless provided by mfg)



Save $93 when you buy the Seastar 204993 Dual Station Selector Unit for only $165 from NVN Marine! Same day shipping before 3pm.
