SeaStar HA5445-2 Power Purge Jr - 12V Hydraulic Steering Bleed

The Dometic SeaStar Power Purge Jr is the portable 12V-powered hydraulic steering fill and bleed tool that's become the standard equipment in marine service shops and dealer install bays. For technicians who routinely install or service hydraulic steering systems on outboard boats, sportfishers, and bay boats, the Power Purge Jr cuts what's typically a 30-minute manual fill and bleed procedure down to under 10 minutes of automated power-pumping - the productivity improvement pays back the tool cost after just a few steering installations.

Why hydraulic steering bleed matters - the problem this solves. Hydraulic steering systems work by transferring hydraulic fluid through closed lines from the helm pump to the steering cylinder at the engine. Any air trapped in the hydraulic lines acts as a compressible cushion - when you turn the wheel, the trapped air compresses first before the fluid actually moves the steering cylinder. Result: spongy, vague steering feel with delayed response, and in severe cases, total loss of steering control when air bubbles migrate to critical valve points. Proper steering installation requires complete air purge from the hydraulic circuit - the steering must be 'bled' until all air is removed and only fluid remains in the lines. Manual bleed methods (gravity-fill, helm-pump pressurization, repeated lock-to-lock turning) work but are slow and inconsistent - air pockets in remote sections of the steering circuit can be missed by manual methods. The Power Purge Jr's powered pumping forces fluid through the entire circuit under pressure, displacing trapped air to the reservoir where it vents to atmosphere.

30 minutes to 10 minutes - the productivity math. SeaStar's spec sheet claims the typical manual fill and bleed takes 30 minutes per boat for an experienced installer. Power Purge Jr cuts this to under 10 minutes per boat. For a service shop doing 5 hydraulic steering installs per week, that's roughly 1.5 hours of labor savings per week per technician using the Power Purge Jr - over a year, that's 75+ hours of saved billable time. At typical marine service shop labor rates ($120-150/hour), the tool pays for itself within months of regular use. For owner-operators (boat owners doing their own hydraulic steering installs or service), the time savings still matter - getting back on the water faster is the practical benefit.

What systems it works with. The Power Purge Jr is designed for: current Dometic / SeaStar hydraulic steering systems (most marine hydraulic steering installed in the last 10+ years), Dometic BayStar hydraulic steering systems (the lower-cost steering line for smaller boats), and outboard hydraulic steering systems up to about 300 HP single or twin engines. The quick-connect fittings on the Power Purge match the standard SeaStar / Dometic / BayStar fluid port fittings. Compatibility caveat: the Power Purge Jr is NOT compatible with older Capilano or Teleflex hydraulic steering systems without the HA5445-AD adapter kit (sold separately by SeaStar). For shops servicing a mix of old and new steering systems, the adapter kit is worth keeping in the tool inventory.

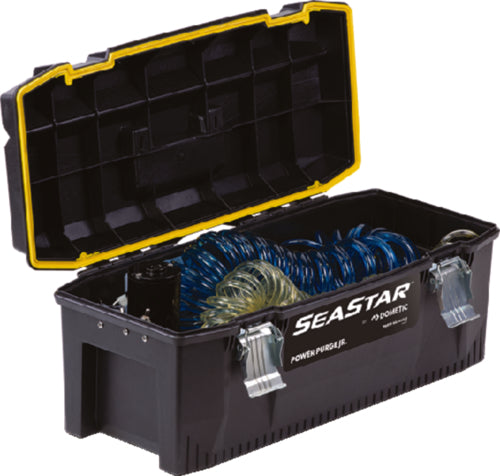

Portable design - work anywhere. The Power Purge Jr is built as a portable tool for field use - integrated handle for transport between boats, compact form factor that fits on a workbench or boat trailer fender, and 12V power via alligator clips that connect to any 12V source. Work scenarios: at the dock on the customer's boat (no shop required), at the boat lift on a hauled-out boat, in the parking lot during a new boat delivery, or on the showroom floor for new boat prep. The portability eliminates the need to bring the boat into the shop for a procedure that's quick once you have the right tool.

How it works - the basic procedure. (1) Connect the Power Purge Jr to a 12V battery via the alligator clips (typically the boat's battery, fused at 10 amps minimum). (2) Fill the Power Purge Jr's reservoir with SeaStar hydraulic fluid. (3) Connect the quick-connect fittings to the appropriate SeaStar / Dometic / BayStar steering system fluid ports - typically one port for fluid supply and one for return / vent. (4) Activate the power pump - the Power Purge pumps fluid through the steering circuit, forcing air out through the return port to the reservoir where it vents to atmosphere. (5) Turn the steering wheel lock-to-lock 10+ times during the purge cycle - this exercises the helm pump and cylinder, dislodging any trapped air in valve seats and cylinder ends. (6) Continue pumping until fluid returns clear and bubble-free at the return port. (7) Top off the helm pump fluid level to the correct mark. (8) Disconnect and test steering feel on the water.

Common pitfalls and how to avoid them. (1) Steering not turned lock-to-lock enough times during purge - air remains in the cylinder ends and valve seats. Solution: 10+ full lock-to-lock cycles minimum, more if the system has been serviced before. (2) Quick-connect fittings leak on first use - the O-rings need lubrication. Solution: pre-lube the fittings with SeaStar hydraulic fluid before connecting. (3) Overheating after extended continuous run - the internal pump motor warms up under sustained use. Solution: 5-minute cool-down between cycles for multi-boat work sessions. (4) Using non-SeaStar hydraulic fluid - voids warranty on the boat's steering system AND degrades the Power Purge Jr's internal seals. Solution: always use only SeaStar branded hydraulic fluid. (5) Inadequate 12V power supply - undersized fuses or shared circuits cause the pump to under-perform or trip the fuse. Solution: dedicated 12V supply with a 10A or larger fuse.

What's NOT included. The Power Purge Jr ships as the bare tool - alligator clip 12V power cable included, quick-connect hose fittings included, integrated reservoir included. NOT included: SeaStar hydraulic fluid (sold separately - the procedure uses 1-3 quarts depending on the steering system being serviced, sold in 32 oz bottles), HA5445-AD adapter kit for older Capilano / Teleflex systems (sold separately), HA5430 service kit for complete fluid flush on dual-station boats (sold separately for shops doing more comprehensive service work), spare quick-connect O-rings (carry spares for shops doing frequent service work).

Maintenance and service life. Typical service life: 3-5 years of regular shop use, longer for occasional owner-operator use. Key maintenance items: (1) Periodic cleaning of the internal fluid reservoir to remove any debris or old fluid that may settle. (2) Inspection of quick-connect O-rings for wear or damage - replace as needed. (3) Inspection of the alligator clip 12V cable for fraying or damage. (4) Storage with the reservoir empty and the pump dry between service sessions to prevent internal corrosion. (5) Avoid prolonged UV exposure (sun on open boat decks for hours) - the plastic reservoir can develop cracks after 2-3 seasons of intense UV exposure. Store the tool in a shaded location or covered when not in use.

Who should buy this. The Power Purge Jr is the right tool for: marine service shops and dealerships that install hydraulic steering on multiple boats per month, mobile marine mechanics who service hydraulic steering at customer locations, serious DIY boat owners who do multiple hydraulic steering jobs (their own boat plus friends' boats), boat builders integrating hydraulic steering on new builds. NOT the right tool for: owner-operators doing one-time hydraulic steering install or service (the cost doesn't pay back for single use - rent or borrow from a service shop instead), boats with older Capilano or Teleflex steering systems (need the adapter kit, or use traditional manual methods), or budget-constrained installations where the tool cost isn't justified by frequency of use.
