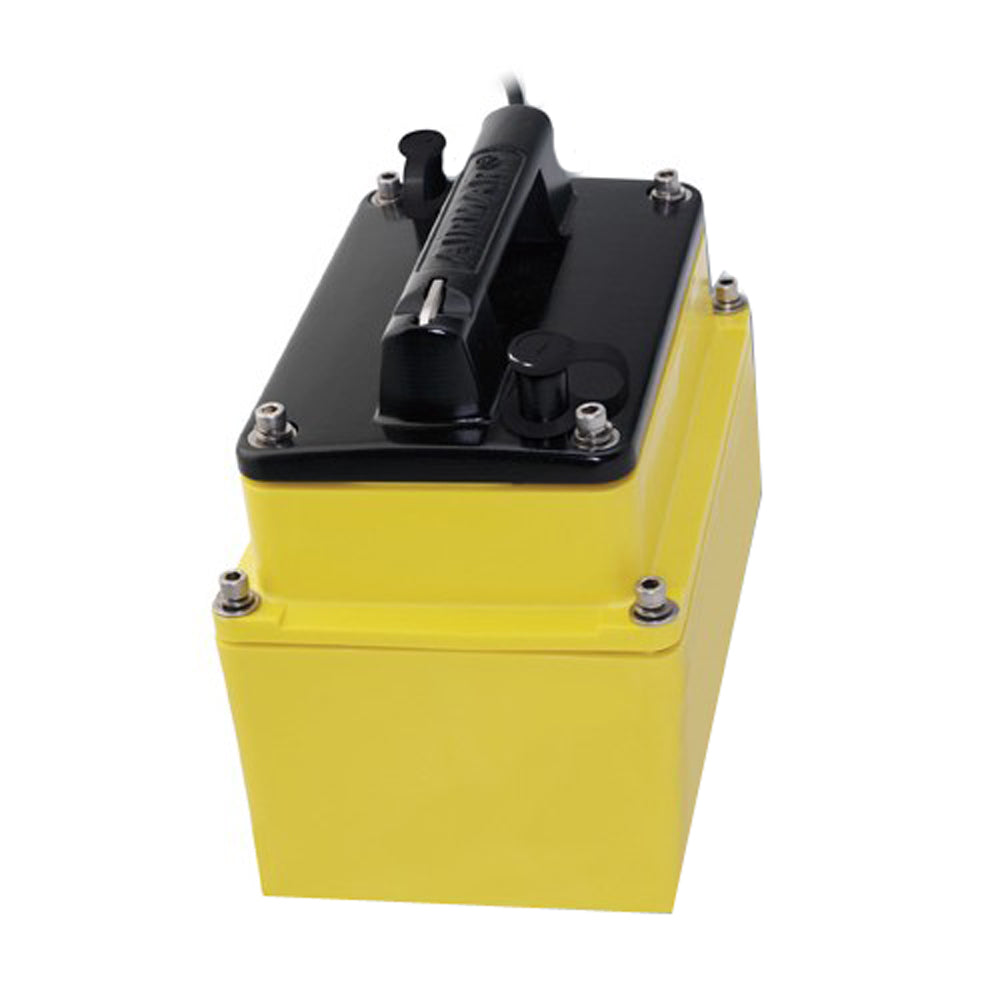

Raymarine M260 1kW In-Hull
Free Ground Shipping (2-6 Days Delivery Time)
It will be shipped by UPS Ground.
Shipping (3PM)
Within 30 days
Raymarine M260 1kW In-Hull Product Description
Discover the freedom of superior fishfinding without compromising your boat's hull integrity. The Raymarine M260 1kW in-hull transducer redefines performance for anglers who demand crystal-clear sonar images from inside the vessel. Perfect for fiberglass hulls, this powerhouse shoots signals through solid material, delivering pinpoint accuracy on fish, structure, and bottom contour—even at speeds over 30 knots. Say goodbye to drilling holes, dealing with cavitation, or turbulent flow noise that plagues external mounts.
Exceptional Sonar Clarity and Target Separation
Engineered with a dedicated 200 kHz element spanning an impressive 88mm (3.5-inch) ceramic disc, the M260 captures fine details in the water column, making it ideal for spotting bait schools and marking individual fish near wrecks or drop-offs. Complementing this is a seven-element 50 kHz array that punches through to depths up to 2,500 feet, ensuring you never miss big game in deep water. Narrow beam angles—19 degrees at 50 kHz and 6 degrees at 200 kHz—provide razor-sharp separation, helping you distinguish fish from bottom clutter effortlessly.
Boat speed? No problem. This transducer maintains reliable bottom tracking beyond 30 knots, thanks to its in-hull positioning that sidesteps propeller wash and hull turbulence. Whether you're trolling offshore or scanning shelves at planing speeds, expect consistent, high-definition returns.
Effortless Installation for Seamless Hull Preservation
Installation boils down to a few straightforward steps: select a flat interior hull spot (compatible with 0-30 degree deadrises), fill the urethane tank with a non-foaming liquid like oil or antifreeze, secure it in place, and connect the 30-foot cable. No through-hull fittings, no wet work, and a pristine exterior that boosts resale value and reduces drag. It's a game-changer for trailered boats or refits where minimizing modifications is key.
- Clean, drill-free setup preserves hull strength and aesthetics
- Rugged urethane housing withstands vibration and flex
- Operates flawlessly up to 1kW power for compatibility with pro-grade sounders
Key Technical Specs at a Glance
| Specification | Details |
|---|---|
| Mounting Style | In-Hull |
| Max Depth | 2,500 ft (50 kHz) / 1,000 ft (200 kHz) |
| Power Handling | 1,000 Watts RMS |
| Frequencies | Dual: 50 kHz (7-element) / 200 kHz (wide ceramic) |
| Beam Width | 19° (50 kHz) / 6° (200 kHz) |
| Hull Deadrise | 0° to 30° |
| Cable Length | 30 feet |
| Hull Material | Fiberglass only |
Perfect Match for Serious Fishing Setups
Pair this transducer with high-end digital sounder modules for optimal results. It's tailored for systems craving detailed, noise-free sonar in demanding environments like tournament fishing or offshore charters. The in-hull design shines on planing hulls where external transducers falter, offering reliability that keeps you focused on the hunt rather than maintenance.
Ideal Applications
- Deep-water pelagics and reef fishing
- High-speed bottom scanning over structure
- Trailered sportfishers avoiding permanent mods
- Center console and express cruisers with fiberglass hulls
Frequently Asked Questions
Can the Raymarine M260 work on hulls steeper than 30 degrees?
No, it's optimized for deadrises from 0 to 30 degrees. For steeper angles, consider alternative mounting solutions to ensure proper signal transmission.
What liquid should I use to fill the M260 tank?
Use a non-foaming, non-corrosive liquid like marine propylene glycol, vegetable oil, or dedicated transducer oil. Avoid water-based mixes to prevent freezing or signal distortion.
Does the M260 perform well at high boat speeds?
Absolutely—reliable bottom lock and target tracking up to and beyond 30 knots, free from cavitation issues common in thru-hull or transom mounts.
Is this transducer suitable for aluminum or wooden boats?
It's designed exclusively for solid fiberglass hulls. Metals and woods interfere with signal propagation.
How does the narrow beam benefit fishing?
Narrow beams deliver superior resolution and fish ID, especially near the bottom, reducing clutter and highlighting targets in complex terrain like wrecks or ledges.
What's the advantage over a thru-hull transducer?
No hull penetration means easier install, lower drag, and immunity to growth or damage. Plus, consistent performance regardless of hull speed or conditions.
The M260 in-hull transducer offers all-out fishfinding performance and simple installation. Optimal fishfinder performance no longer requires drilling a hole in the hull! The M260 is able to transmit and receive through solid fiberglass, displaying sharp detailed images. Track the bottom at speeds exceeding 30 knots (34 MPH.) Installation simply requires adhering the tank to the inside of the vessel, leaving a clean and smooth hull exterior. It’s true! Excellent performance can be achieved from an in-hull mounted transducer. The M260 is designed with a 200 Kilohertz element, which provides performance resulting in higher-resolution without sacrificing sensitivity. Combined with a seven-element 50 Kilohertz array, this in-hull has excellent deep-water detection. Because the M260 has narrow beams at both frequencies, separation of individual targets and the ability to distinguish between fish and the bottom makes finding fish easy.
Raymarine A66089 Attributes
- Mounting Location: In-Hull Mount
- Depth: 2500 Feet Maximum Depth At Low Frequency/ 1000 Feet Maximum Depth At High Frequency
- Power Rating: 1000 Watt
- Frequency Range: 50/ 200 kHz Frequency
- Supported Angle: 19/ 6 Degree Beam Width/ 0 To 30 Degree Deadrise
- Cable Length: 30 Feet
Raymarine A66089 Features & Benefits
- Able To Transmit And Receive Through Solid Fiberglass, Displaying Sharp Detailed Images
- Narrow Beam Widths Provide Excellent Target Separation And The Ability To Easily Identify Fish Even When They Are Close To The Bottom
- Rugged Design And Reliability
- Easy To Install
- Limited 2 Year Warranty
Raymarine A66089 Warranties
M260 In-hull
The M260 is our high performance in-hull model for 300 W-1 kW echosounders. Its construction utilizes separate 50 kHz and 200 kHz elements for excellent deep-water performance and exceptional bottom and water column detail. The M260s narrow beam provides crisp image detail especially suited for fishing shelves, intricate bottom structures and wrecks. In-hull mounting eliminates cavitation and turbulence under the transducers face resulting in precise readings even at boat speeds above 20 knots.
Features:
- Depth
- 50/200 kHz
- 1 kW RMS
- High-performance
- Urethane
The M260 can "traverse the hull" and has all the advantages of the ship's interior design, thereby providing excellent performance-there are no holes on the ship and no cavitation of the propeller. ...
Raymarine M260 1kW In-Hull Related Products
Airmar Deadrise Angle Finder - Accuracy of ± 1/2°Frequently Asked Questions (FAQ) About Raymarine M260 1kW In-Hull
Who is the Raymarine?How to describe Raymarine M260 1kW In-Hull?
What is the power rating of the product?
Speed feature included to the product?
How to mount or what is the mounting style of Raymarine M260 1kW In-Hull?
This product can read the temprature?
What is the length of cable (feet)?
What is the imagining type of the product?
What is the length of cable?
Is this product supporting CHIRP and what's the type?
Who is the Raymarine?
How to describe Raymarine M260 1kW In-Hull?
- The M260 is our high performance in-hull model for 300 W-1 kW echosounders.
- Its construction utilizes separate 50 kHz and 200 kHz elements for excellent deep-water performance and exceptional bottom and water column detail.
- The M260s offer the best of both worlds with a rugged design that can withstand the toughest conditions.
- M260 is constructed with high performance sonar elements for deep water and bottom detail.
- M260 is constructed with 50 kHz and 200 kHz elements for excellent deep-water performance.
Introducing the Raymarine M260 1kW sounder module. The M260 is designed to be compatible with all Raymarine DSM300 sounder modules, and is capable of shooting through a fiberglass hull. With a frequency of 200/50 kHz, the M260 delivers outstanding performance with all the features you need for your boat.
What is the power rating of the product?
- The M260 is our high performance in-hull model for 300 W-1 kW echosounders.
- Its construction utilizes separate 50 kHz and 200 kHz elements for excellent deep-water performance and exceptional bottom and water column detail.
- The M260s offer the best of both worlds with a rugged design that can withstand the toughest conditions.
- M260 is constructed with high performance sonar elements for deep water and bottom detail.
- M260 is constructed with 50 kHz and 200 kHz elements for excellent deep-water performance.
- The M260 is compatible with the DSM300 sounder module for the most reliable performance.
- It features a fiberglass hull material for durability and easy maintenance.
- The M260 can shoot through the hull, which means it can be installed in any type of boat.
- Delivers outstanding performance with all the latest updates
- Compatible with the latest sounder modules
- Max power of 1000 watts for a more powerful signal
Speed feature included to the product?
How to mount or what is the mounting style of Raymarine M260 1kW In-Hull?
This product can read the temprature?
What is the length of cable (feet)?
What is the imagining type of the product?
What is the length of cable?
Is this product supporting CHIRP and what's the type?
Buy with the best price Raymarine M260 1kW In-Hull for only $1344 from NVN Marine! Same day shipping before 3pm.
Raymarine M260 1kW In-Hull Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Raymarine |
| Weight: |
10.65 lb |
| Mounting Style: |
In-Hull |
| Imagining: |
Standard |
| Chirp: |
No |
| Cable Length (Feet): |
30' |
| Temperature: |
No |
| Speed Included: |
No |
| Product Manual: | |
| Product Brochure: |
Raymarine M260 1kW In-Hull User Reviews
Raymarine M260 1kW In-Hull Shipping & Return
| Shipping Weight: |
10.65 lb |
|---|---|
| Box Sizes: |
8.00 (h) x 10.00 (w) x 12.00 (l) |
| Cubic Feet: |
960.0 |
| Returnable: |
Yes |
