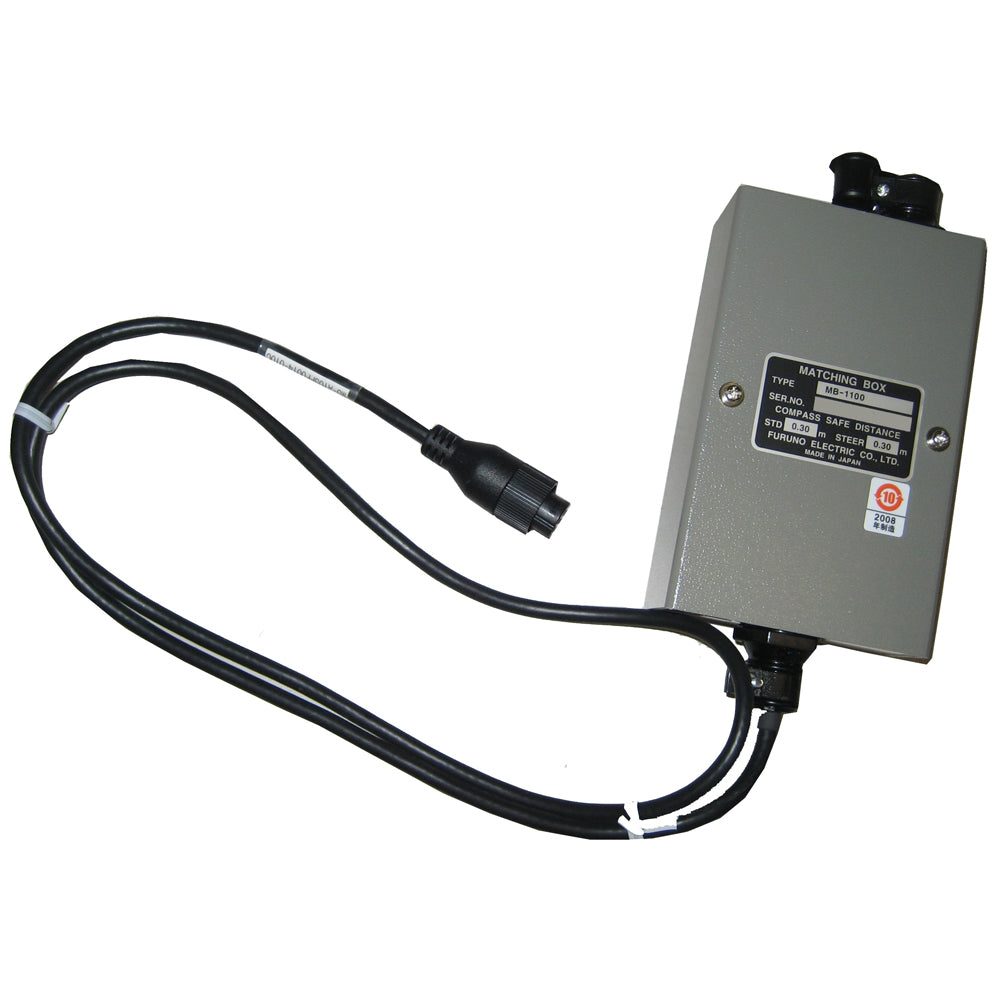

Furuno Transducer Matching Box w/10 Pin Connector

Enhance Your Furuno LCD Sounder Setup with the MB1100 Matching Box

Boat owners and serious anglers rely on precise sonar readings to locate fish, navigate underwater obstacles, and map the bottom structure effectively. The Furuno MB1100 transducer matching box bridges the gap between your dual-frequency transducer and Furuno LCD sounders, ensuring seamless signal transmission without the hassle of additional cabling. Pre-equipped with a reliable 10-pin connector, it simplifies your installation and minimizes signal loss for sharper, more accurate depth and fish detection.

Key Advantages for Marine Electronics Enthusiasts

• Plug-and-Play Convenience: No need for custom pigtail assemblies—the integrated 10-pin connector mates directly with compatible Furuno units, saving time during setup on your vessel.
• Optimized Dual-Frequency Performance: Matches high and low-frequency signals from transducers like the Airmar or Furuno series, delivering clear images across various water depths and conditions.
• Rugged Marine Build: Designed to withstand saltwater exposure, vibrations, and temperature swings, making it ideal for offshore fishing or commercial boating.
• Improved Signal Integrity: Reduces noise interference common in boat wiring harnesses, resulting in cleaner sonar returns and fewer false echoes.

How the MB1100 Integrates into Your Fishing Electronics

At its core, the MB1100 acts as an impedance matcher, tuning the transducer's output to the input requirements of Furuno LCD sounders such as those in the FCV series. This ensures maximum power transfer and sensitivity. For dual-frequency setups (typically 50/200 kHz), it handles the differing electrical characteristics of each frequency band, preventing distortion that could obscure fish arches or bottom details.

Picture this: You're trolling in 100 feet of water, scanning for structure. Without proper matching, low-frequency bottom lock might bleed into high-frequency fish targets. The MB1100 eliminates this by providing balanced connectivity, letting your sounder display vivid separation between baitfish schools and larger game fish below.

Compatibility and Real-World Applications

This matching box pairs effortlessly with a range of Furuno LCD sounders popular among recreational and charter boat operators. It's particularly valuable when upgrading older single-frequency transducers to dual-band models, breathing new life into your existing electronics stack. Common setups include mounting it near the transducer head or within the console for short, tidy runs to the display unit.

Pro Tips for Installation and Long-Term Reliability

Secure the MB1100 in a dry, ventilated spot away from engine heat. Use marine-grade zip ties for cable management, routing transducer leads separately from power lines to dodge EMI (electromagnetic interference). Before powering up, double-check pin alignments—mismatched connections can fry sensitive circuits. Regular inspections for corrosion on the 10-pin connector keep performance peak, especially after saltwater hauls.

For troubleshooting: If sonar images appear faint, verify transducer seating and test with a multimeter for continuity. In most cases, the MB1100 resolves impedance mismatches that plague generic adapters.

Frequently Asked Questions

Upgrade your sonar system today and experience the difference a properly matched transducer makes on your next outing. Reliable, straightforward, and built to last— the Furuno MB1100 is a staple for any serious marine setup.
