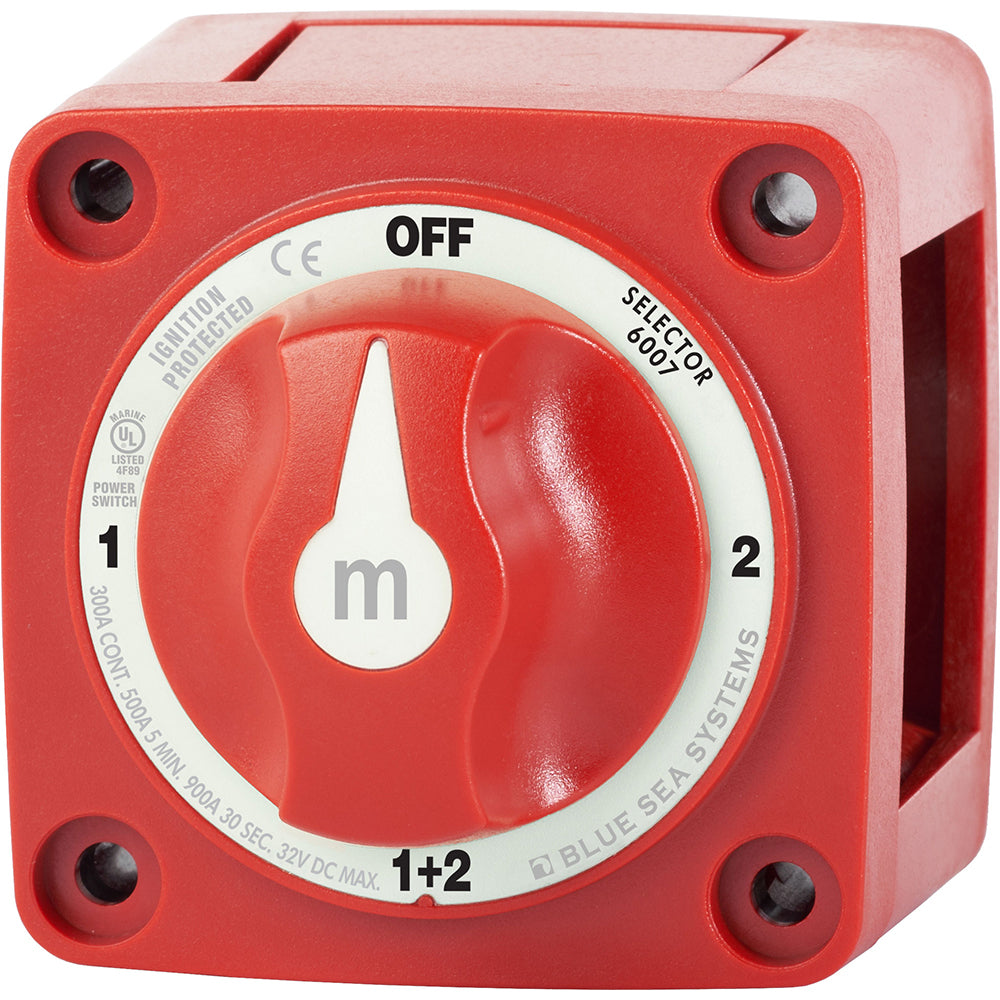

Blue Sea 6007 m-Series (Mini) Battery Switch Selector Four Position Red

Blue Sea 6007 m-Series (Mini) Battery Switch Selector Four Position Red Product Description

Switch Battery M Selector

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6007BSS Attributes

• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 4
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 500 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 6007BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6007BSS Installation Instructions

• 6007_web_version.pdf

Blue Sea 6007BSS Technical Bulletins

• 6007_web_version.pdf
• M_Switch_Knob.pdf

6007
m-Series (Mini) Battery Switch Selector

Make before break contact design allows switching between battery banks without power interruption

Selector

• Switches battery bank 1 or battery bank 2 or both to a single load using one switch

Features:

• Ignition protected - Safe for installation aboard gasoline powered boats

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Sold in units of measurement: EAM series selector battery switch (mini) uses a switch to switch battery pack 1 or battery pack 2 or BOTH to a single load. Features...
