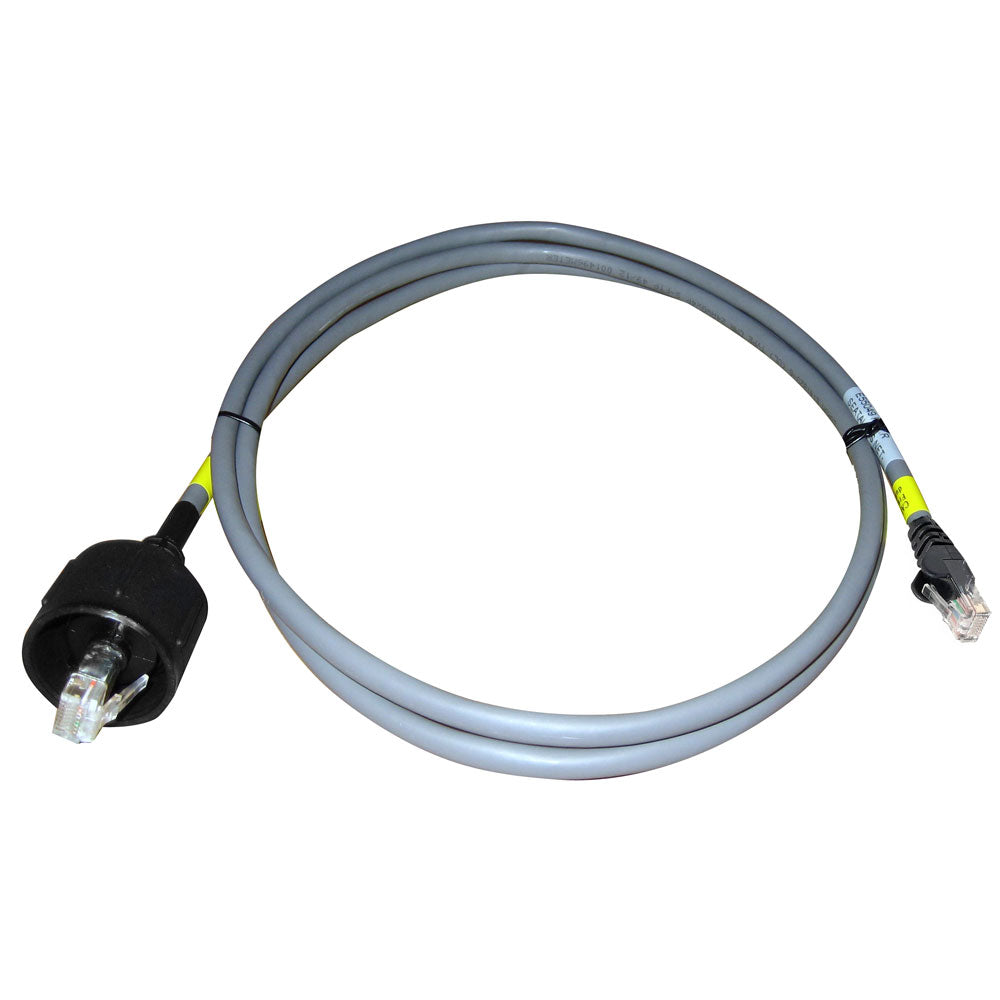

Raymarine SeaTalkhs Network Cable - 1.5m
Raymarine SeaTalkhs Network Cable - 1.5m — Product description
Enhance your marine navigation setup with the Raymarine SeaTalkhs Network Cable in 1.5m length, a cornerstone for seamless connectivity in demanding on-water environments. Designed specifically for high-performance Raymarine systems, this cable delivers robust, waterproof connections that keep your E-Series, C-Series widescreen, and G-Series displays communicating flawlessly—even amidst rough seas and constant spray.
Why This Cable Stands Out for Serious Boaters
Unlike standard Ethernet cables, the SeaTalkhs cable uses Raymarine's proprietary high-speed protocol, supporting data rates up to 100Mbps. This means real-time sharing of radar overlays, AIS targets, and sonar data across multiple displays without lag or dropouts. The 1.5m length strikes the perfect balance for tight helm stations or linking nearby components, reducing clutter while maintaining optimal signal integrity.
Boaters often overlook cable quality until a glitchy connection ruins a fishing trip or offshore passage. This cable's molded RJ45 connectors lock securely into displays, switches, and couplers, resisting vibration and corrosion that plague lesser alternatives. It's pre-terminated for plug-and-play simplicity, saving hours during installation compared to custom crimping.
Key Features That Deliver Reliability
- Waterproof Design: IPX6-rated connectors seal out moisture, ensuring longevity in saltwater exposure.
- High-Speed Performance: CAT5e-equivalent shielding minimizes interference from engines, radios, and other onboard electronics.
- Positive Locking Mechanism: Twist-and-lock design prevents accidental disconnection during heavy weather maneuvers.
- Flexible Installation: Slim profile navigates tight conduits and bulkheads effortlessly.
- System Compatibility: Optimized for E80/E120, C-Series widescreen, and G-Series—pairs perfectly with SPX autopilots and digital radars.
Real-World Applications and Pro Tips
Picture this: You're running a tournament-style fishing setup with dual E120 displays, a Quantum radar, and StructureScan sonar. A single 1.5m SeaTalkhs cable bridges your primary MFD to a network switch, enabling synchronized chart updates and engine data overlays. For flybridge boats, it connects overhead instruments to the lower helm without excess cable loops that invite snags.
Pro installers swear by these for their low failure rate. To maximize lifespan, route cables away from high-heat sources like exhausts and use Raymarine spurs for branching. If expanding your network, daisy-chain up to 10 devices, but test continuity with a multimeter before launch—early detection of pinched wires prevents costly downtime.
Common Pitfalls to Avoid
Steer clear of generic CAT5 cables; they lack the precise impedance matching needed for SeaTalkhs, leading to packet loss and erratic performance. Also, don't exceed recommended lengths per segment (up to 100m total network span) or mix with SeaTalk1—those worlds don't play nice together. Regular visual inspections for chafe spots during haul-outs keep your setup battle-ready.
Frequently Asked Questions
What systems is the 1.5m SeaTalkhs Network Cable compatible with?
It's fully compatible with Raymarine E-Series (like E80 and E120), C-Series widescreen displays, and G-Series multifunction systems, including connections to compatible radars, sounders, and autopilots.
Is this cable waterproof and suitable for marine use?
Yes, featuring IPX6-rated waterproof connectors that withstand immersion and spray, making it ideal for open cockpits, offshore racing, or commercial fishing vessels.
How does SeaTalkhs differ from regular Ethernet or SeaTalk1?
SeaTalkhs is Raymarine's high-speed (100Mbps) networked protocol using RJ45-style plugs, unlike slower SeaTalk1 (legacy NMEA 0183-like bus) or unmanaged Ethernet, ensuring plug-and-play integration without configuration hassles.
Can I use this cable for longer network runs?
The 1.5m length is perfect for short hops; for longer distances, combine with Raymarine switches and extenders, keeping individual segments under 50m to maintain signal quality.
What's the best way to install the SeaTalkhs cable?
Simply plug into matching SeaTalkhs ports on displays or switches—the locking mechanism secures it. Secure with cable ties, avoid sharp bends (minimum radius 50mm), and power cycle devices after connecting.
Does it support multiple displays in a network?
Absolutely—daisy-chain or star topology via switches supports up to 10 SeaTalkhs devices, sharing data like charts, radar, and instruments across your entire helm.
How do I troubleshoot connection issues?
Check for secure locks, inspect for damage, verify power to all units, and use Raymarine's diagnostic tools in the menu. Swapping cables often reveals the culprit.
Raymarine SeaTalk hs network cables provide waterproof, reliable, high-speed connections between E-Series components.
Available in multiple lengths to simplify installation, the network cable locks positively into E-Series displays, switches and couplers. A 1.5 meter SeaTalk hs cable is supplied with each E80 and E120 display.
These are made by Raymarine's expert product experts using heavy-duty and reliable materials, able to provide you with...
SKU: NVN-16533
MPN: E55049
UPC: 723193550496
Technical specifications
| Brand | Raymarine |
| Model | Raymarine SeaTalkhs Network Cable - 1.5m |
| SKU / MFR# | 16533 |
