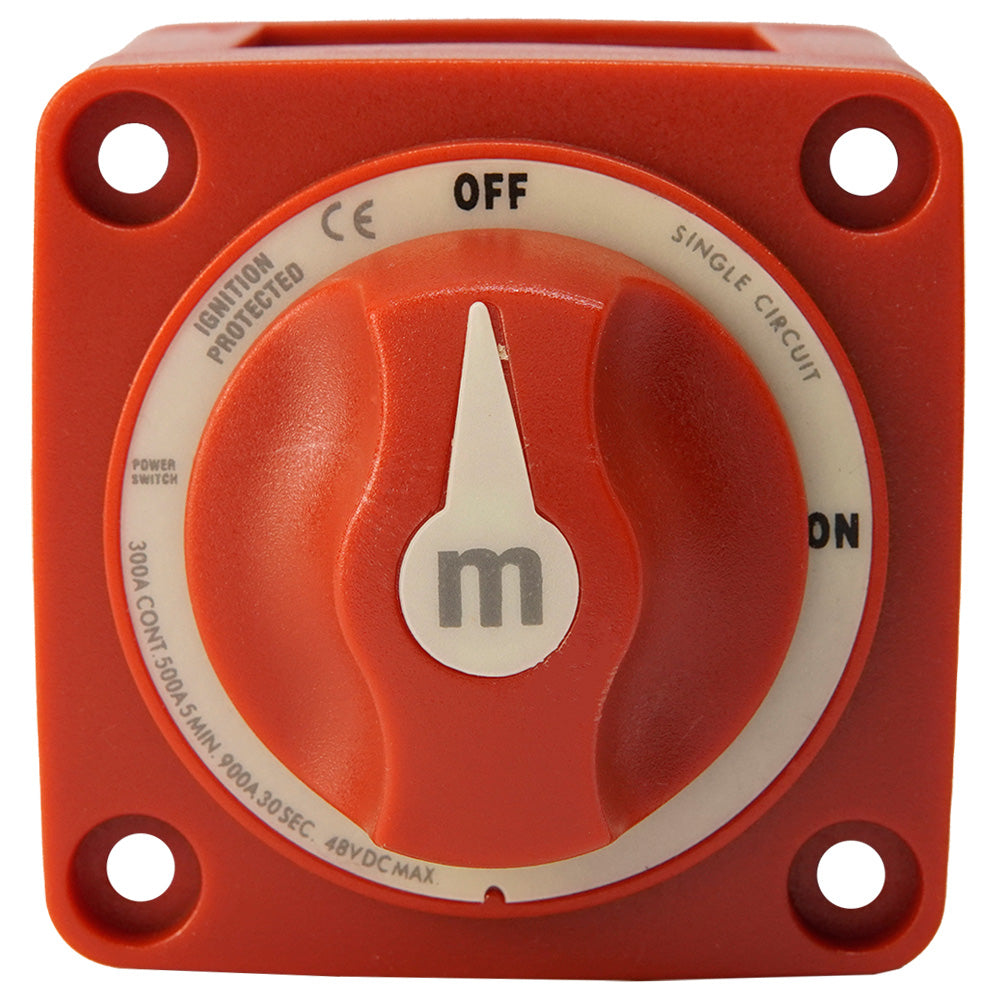

Egis M-Series 300A Battery Switch Off/On Knob Actuator
Shipping (3PM)
Within 30 days
Egis M-Series 300A Battery Switch Off/On Knob Actuator Product Description
M-Series 300A Battery Switch Off/On Knob Actuator
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8”-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8” (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
- Cable Size to Meet Rating: 4/0 AWG
Save $9 when you buy the Egis M-Series 300A Battery Switch Off/On Knob Actuator for only $26 from NVN Marine! Same day shipping before 3pm.
Egis M-Series 300A Battery Switch Off/On Knob Actuator Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Egis Mobile Electric |
| Weight: |
0.75 lb |
| User Guide: |
Egis M-Series 300A Battery Switch Off/On Knob Actuator User Reviews
Egis M-Series 300A Battery Switch Off/On Knob Actuator Shipping & Return
| Shipping Weight: |
0.75 lb |
|---|---|
| Box Sizes: |
4.00 (h) x 5.00 (w) x 7.00 (l) |
| Cubic Feet: |
140.0 |
| Returnable: |
Yes |
