FLIR JCU-4 Premium Joystick Control Unit Product Description

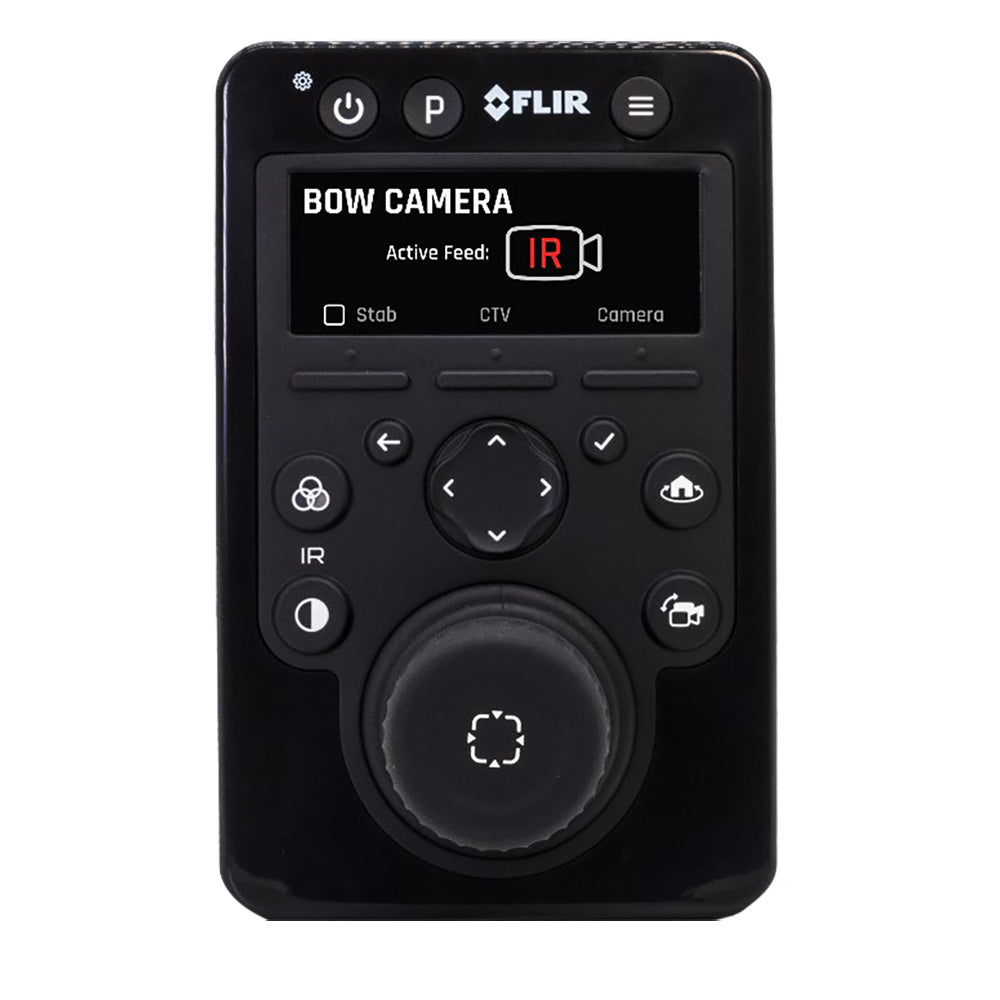

FLIR JCU-4 Premium Joystick Control Unit - Professional Marine Thermal Camera Controller
Master precise thermal camera control with the FLIR JCU-4 Premium Joystick Control Unit, the industry-leading controller designed specifically for marine thermal imaging applications. This professional-grade controller delivers intuitive pan, tilt, zoom, and comprehensive camera function control through its ergonomic three-axis joystick and intelligent keypad interface, ensuring optimal performance in all maritime conditions.
Professional Three-Axis Joystick Control
The JCU-4 features a rugged, low-profile three-axis joystick engineered for precision camera control in challenging marine environments. The responsive joystick provides smooth, accurate pan, tilt, and zoom operations, allowing operators to quickly track targets, survey areas, and navigate with thermal imaging technology. Designed by mariners for mariners, this controller ensures reliable performance in all sea conditions.
Advanced LCD Display and Keypad Interface
High-Resolution Color Display
The integrated 2.9-inch IPS TFT LCD display (376 x 960 pixels) simplifies camera operation with clear, high-contrast visuals. With 600 nits brightness and wide viewing angles (80°+), the display remains readable in bright sunlight and low-light conditions. The dimmable LCD feature preserves night vision during critical nighttime navigation operations.
Ergonomic Keypad Design
- Backlit Keys: Illuminated keypad maintains visibility during nighttime operations
- Three Custom Keys: Programmable buttons for quick access to user-defined camera functions
- Intuitive Layout: Easy access to joystick setup menus and camera controls
- Tactile Feedback: Positive button response in all weather conditions
Comprehensive Camera Compatibility
Current FLIR Marine Cameras
- M132 Series: Entry-level thermal imaging cameras
- M232 Series: Advanced thermal imaging with enhanced features
- M300 Series: Professional-grade thermal cameras
- M400/M400XR Series: High-performance thermal imaging systems
- M500 Series: Premium thermal cameras with advanced capabilities
Legacy Camera Support
- M-Series Cameras: Earlier generation FLIR marine thermal cameras
- MU/MV Series: Multi-sensor and visible light camera systems
- Raymarine T-Series: Thermal cameras integrated with Raymarine systems
Professional Installation and Connectivity
Retrofit-Friendly Design
The JCU-4 maintains the same mounting footprint as previous JCU-2 and JCU-1 models, enabling seamless upgrades without modification to existing installations. This retrofit compatibility ensures easy integration into current marine electronics systems.
Flexible Power and Network Options
- Power over Ethernet (PoE): Class 2 PoE (44-57V DC) for single-cable installation
- Alternative DC Power: 12V/24V DC (8-32V range) with dedicated power connector
- Dual Network Ports: Two 10/100/1000 Mbps RayNet (Ethernet) connections
- Low Power Consumption: Maximum 5W with full keypad illumination
Marine-Grade Environmental Protection
- Waterproof Rating: IPX6 marine environmental protection
- Operating Temperature: -25°C to +55°C (-13°F to +131°F)
- Storage Temperature: -30°C to +70°C (-22°F to +158°F)
- Humidity Tolerance: Up to 93% at 40°C (104°F)
- Shock and Vibration Resistant: Engineered for harsh marine conditions
Technical Specifications
Physical Dimensions
- Width: 93.66 mm (3.69 inches)
- Height: 146.66 mm (5.77 inches)
- Depth (Controller): 63.36 mm (2.49 inches)
- Depth (Including Joystick): 113.30 mm (4.46 inches)
Display Specifications
- Screen Size: 2.9-inch diagonal
- Display Type: IPS TFT LCD technology
- Resolution: 376 (H) x 960 (W) pixels RGB
- Brightness: 600 nits (600 cd/m²)
- Contrast Ratio: 1:1500
- Active Area: 26.51 mm x 67.68 mm
- Viewing Angles: 80°+ horizontal and vertical
Complete Control System Package
Included Components
- JCU-4 Controller (with 4 mounting screws and plates pre-fitted)
- Protective Front Cover
- Weather Cover for Enhanced Protection
- Right-Angled RayNet to RJ45 Adapter Cable (3 meters/9.84 feet)
- Right-Angled Three-Pin Power Cable (3 meters/9.84 feet)
- Comprehensive Documentation Pack
Professional Marine Applications
- Navigation Safety: Enhanced visibility in fog, darkness, and adverse weather
- Search and Rescue: Precision control for locating persons in water
- Security Monitoring: Perimeter surveillance and threat detection
- Commercial Fishing: Fish finding and net monitoring capabilities
- Law Enforcement: Tactical operations and suspect tracking
- Recreational Boating: Enhanced safety and situational awareness
Frequently Asked Questions
Which FLIR cameras are compatible with the JCU-4?
The JCU-4 is compatible with current M132, M232, M300, M400/M400XR, and M500 series cameras, as well as legacy M-Series, MU/MV Series, and Raymarine T-Series thermal cameras.
Can the JCU-4 replace older joystick controllers?
Yes, the JCU-4 is retrofit-friendly with the same mounting footprint as JCU-2 and JCU-1 controllers, enabling seamless upgrades without modification to existing installations.
What power options are available for the JCU-4?
The JCU-4 supports both Power over Ethernet (PoE Class 2, 44-57V DC) for single-cable installation and alternative 12V/24V DC power (8-32V range) with a dedicated power connector.
How does the night vision preservation feature work?
The JCU-4 features dimmable LCD and backlit keypad controls that can be adjusted to preserve the operator's night vision during critical nighttime navigation and thermal imaging operations.
What customization options are available?
The JCU-4 includes three programmable custom keys that provide quick access to user-defined camera functions, allowing operators to configure shortcuts for frequently used features and settings.
Professional Thermal Imaging Control Solution
The FLIR JCU-4 Premium Joystick Control Unit represents the pinnacle of marine thermal camera control technology, combining precision engineering with intuitive operation for professional maritime applications. Its comprehensive camera compatibility, robust environmental protection, and advanced control features make it the preferred choice for mariners who demand reliable, professional-grade thermal imaging control.
Whether used for navigation safety, search and rescue operations, or commercial applications, the JCU-4 delivers the precision control and reliability required for critical marine thermal imaging operations in all conditions.
JCU-4 Premium Joystick Control Unit
The JCU-4 provides pan, tilt, zoom, and confident control of all camera functions. It is our premier joystick controller, equipped with an ergonomic keypad, color LCD, and responsive joystick control. The JCU-4 offers the operator a dedicated tactile camera control and pairs seamlessly with FLIR marine cameras.
Features:
- Rugged, low-profile three-axis joystick for precision camera control in all conditions
- The 2.9-inch color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus
- Dimmable LCD and backlit keypad preserve the operator’s vision during nighttime operations
- Three custom keys for quick access to user-defined camera functions
- Compatible with the current M232, M300 Series, M400/M400XR and M500 cameras and legacy M-Series,
- MU/MV Series and Raymarine T-Series cameras
- Retrofit friendly, the JCU-4 has the same mounting footprint as the JCU-2 and JCU-1
- Connectivity options include two Ethernet ports, POE support, and a dedicated DC power connector
What's Included?
- JCU-4 (includes 4 screws and 4 mounting plates pre-fitted)
- Front cover
- Weather cover
- Documentation pack
- Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft)
- Right-angled three-pin power cable, 3 m (9.84 ft)
