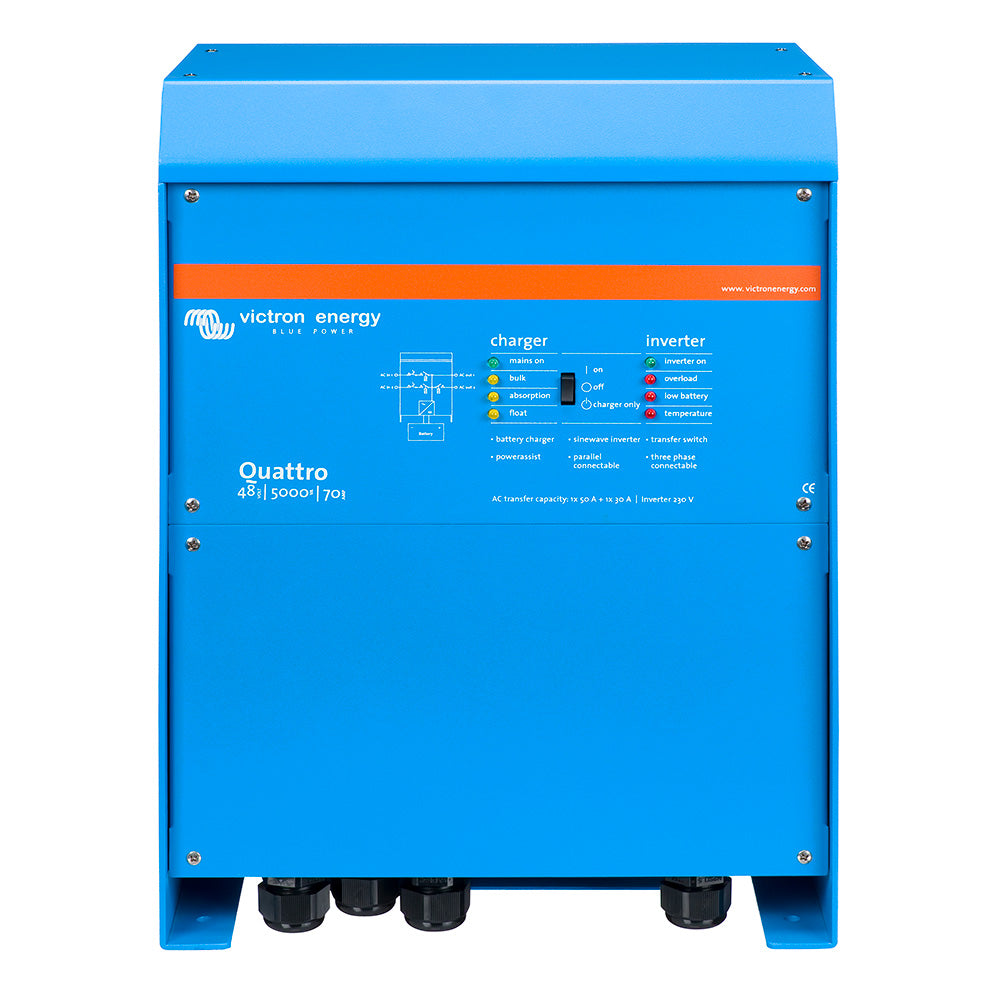

Victron Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed Product Description

Victron Quattro 48/5000/70 100/100 120V VE.Bus UL - Marine Inverter/Charger with Dual AC Inputs

Uncompromising Power Management for Serious Marine Electrical Systems

The Victron Quattro 48/5000/70 represents the pinnacle of marine power management technology, delivering 5000VA of pure sine wave power with advanced dual AC input capability and intelligent battery charging. This UL-listed marine inverter/charger is engineered for vessels requiring seamless power switching between multiple AC sources while maintaining critical loads during power transitions.

Key Features & Benefits

Dual AC Input Architecture for Maximum Reliability

• Two Independent 100A AC Inputs: Simultaneously connects to shore power and generator, automatically selecting the active source
• Ultra-Fast Transfer Switch: Sub-20 millisecond switching ensures computers and electronics continue operating uninterrupted
• Smart Source Priority: Automatically selects most reliable power source based on programmed preferences
• Dual AC Output Configuration: Critical loads on AC-Out 1 remain powered during all conditions

Advanced PowerAssist Technology

• Generator Boost Capability: Supplements generator output with battery power during high-demand periods
• Shore Power Protection: Prevents overloading limited shore power connections by reducing charge current automatically
• Load Management: AC-Out 2 can be programmed to disconnect non-essential loads when running on battery power

Marine-Grade Power Specifications

• Continuous Output: 4000W continuous power at 120V AC
• Peak Power: 9000W surge capacity for motor starting applications
• Battery System: 48V DC input for efficient power conversion
• Adaptive Charging: 70A multi-stage battery charger with temperature compensation
• Pure Sine Wave: Clean power suitable for sensitive marine electronics

Technical Specifications

System Integration & Expansion Capabilities

Parallel & Multi-Phase Operation

Scale your power system with up to six Quattro units operating in parallel for increased capacity, or configure for three-phase or split-phase operation to meet complex marine electrical requirements.

VE.Bus Communication

Integrated VE.Bus technology enables seamless communication with Victron's GX monitoring devices, battery monitors, and system controllers for comprehensive vessel power management.

Remote Monitoring & Control

When paired with a Cerbo GX or other VE.Bus compatible device, monitor and control your entire electrical system remotely via the VRM portal and VictronConnect app from anywhere in the world.

Marine Installation Considerations

Mounting & Ventilation

• Requires minimum 10cm clearance on all sides for proper ventilation
• Fan-assisted cooling with temperature-controlled operation
• Suitable for engine room or electrical compartment installation
• Weighs approximately 30kg (66 lbs)

Battery Bank Requirements

• Minimum 200Ah 48V battery bank recommended
• Compatible with lead-acid, AGM, gel, and lithium battery technologies
• Programmable charging parameters for optimal battery life

Why Choose the Victron Quattro for Marine Applications

The Quattro 48/5000/70 is specifically designed for vessels requiring uncompromising power reliability. Its dual AC input capability eliminates the need for separate transfer switches, while the advanced PowerAssist feature maximizes the utility of limited generator or shore power capacity. The unit's UL listing ensures compliance with North American electrical codes, making it ideal for both recreational and commercial marine installations.

Victron Energy's renowned build quality and comprehensive support network provide the confidence needed for offshore cruising and professional marine applications. The Quattro's field-proven reliability and advanced features make it the preferred choice for serious mariners worldwide.

Frequently Asked Questions

Can the Quattro operate as a standalone inverter without AC input?

Yes, the Quattro can operate in inverter-only mode, converting 48V DC battery power to 120V AC power when no shore power or generator source is available. It seamlessly transitions between all operating modes automatically.

What size generator is recommended for this unit?

A minimum 8kW generator is recommended to fully utilize the 70A charging capability while supplying house loads. The PowerAssist feature allows smaller generators to be supplemented with battery power during high-demand periods.

Is professional installation required?

Due to the high-power DC and AC connections involved, professional installation by a certified marine electrician is strongly recommended. Proper installation ensures optimal performance and compliance with marine electrical codes.

Can multiple Quattro units be connected together?

Yes, up to six Quattro units can be connected in parallel for increased power output, or configured for three-phase operation. This requires VE.Bus communication cables and proper system configuration.

What monitoring options are available?

The Quattro integrates with Victron's Color Control GX, Cerbo GX, and other VE.Bus compatible monitors for local and remote system monitoring via the VRM portal and mobile apps.

Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed

Multifunctional

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.

Two AC Inputs & Two AC Outputs

The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist Feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virutually Unlimited Power Thanks to Parallel Operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.
