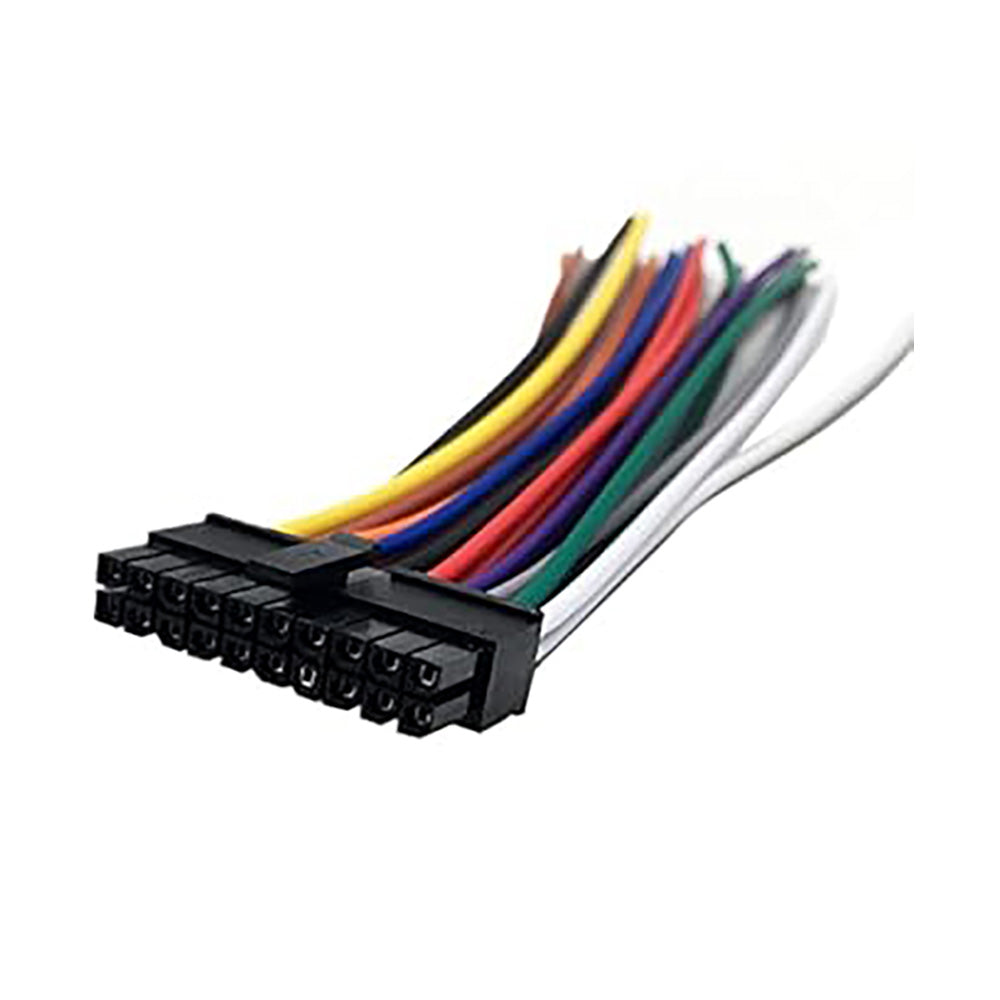

Xantrex Freedom Communication Card Mating Connector Assembly w/10" Lead

Unlock seamless integration for your power system with the Freedom Communication Card Mating Connector Assembly featuring a convenient 10-inch lead. Designed specifically for Xantrex Freedom XC PRO Series Inverter/Chargers, this harness simplifies wiring by linking directly to the 20-pin CC port, bridging your inverter/charger to vehicle controls and displays effortlessly.

Streamlined Connectivity for Modern RVs and Vehicles

Whether you're outfitting a luxury motorhome or a rugged off-road rig, this assembly handles the heavy lifting of communication protocols. It supports single-wire control for the vehicle's accessory ignition (ACC) system, keeping power management intuitive and responsive. For advanced setups, it taps into CANbus/RV-C or J1939 networks using just three wires, allowing your inverter/charger to share data with onboard displays, generators, and other electronics.

Imagine starting your engine and having your inverter/charger automatically sync up—no manual toggles needed. This level of automation reduces wear on components and enhances overall system reliability during long hauls or remote adventures.

Key Features That Set It Apart

• 20-Pin Precision Fit: Mates perfectly with the CC port on Freedom XC PRO models, ensuring a secure, vibration-resistant connection ideal for mobile environments.
• 10-Inch Flexible Lead: Provides ample reach for clean routing without excess cable cluttering your setup.
• Multi-Protocol Support: Handles RV-C for recreational vehicles and J1939 for commercial trucks, making it versatile across applications.
• ACC Ignition Control: One-wire interface for straightforward ignition signal management, preventing unnecessary power draw when the vehicle is off.
• Compact and Durable: Built to withstand the rigors of road travel, with robust connectors that resist corrosion and environmental exposure.

Real-World Benefits for Power Users

Integrating this connector transforms your inverter/charger from a standalone unit into a smart hub. Users report fewer battery drain issues thanks to precise ACC signaling, which cuts power to the inverter when the vehicle is parked. In networked systems, real-time data like battery status and charge levels appear on your dashboard display, helping you monitor health at a glance.

For RV enthusiasts, RV-C compatibility means effortless pairing with multiplexed lighting, HVAC, and monitoring panels—creating a unified ecosystem. Commercial operators appreciate J1939 support for fleet telematics, where uptime is critical. Overall, it boosts efficiency, extends battery life, and minimizes troubleshooting time.

Perfect Compatibility and Easy Upgrades

Tailored for Freedom XC PRO Series Inverter/Chargers, this assembly slots into existing setups without modifications. It's a plug-and-play upgrade for owners looking to add communication capabilities to their current hardware. Pair it with compatible displays or control modules from leading RV and marine brands for full-system harmony.

Pro tip: Check your inverter's firmware for the latest protocol updates to maximize performance—many enhancements focus on communication stability.

Simple Installation Steps for DIY Confidence

Getting this harness up and running takes minutes, even for those new to wiring:

1. Power down your inverter/charger and vehicle systems completely.
2. Locate the 20-pin CC port on the XC PRO unit.
3. Align and insert the mating connector firmly until it clicks.
4. Route the 10-inch lead to your ACC wire and display harness, using zip ties for secure mounting.
5. Connect the designated wires: one for ACC, three for CANbus/J1939 as per your vehicle's diagram.
6. Test by powering up—watch for status lights confirming the link.

Avoid common pitfalls like loose connections by double-checking pins before finalizing. If integrating with a complex CAN network, use a terminator if required by your setup.

Ideal Applications Across Industries

RV and Camping: Syncs power with coach displays for effortless boondocking.

Marine Use: Enables NMEA 2000-like comms for boat electronics integration.

Commercial Fleets: J1939 ties into truck ECUs for optimized auxiliary power.

Off-Grid Solar: Links battery banks to remote monitors for solar pros.
