Furuno TZT13X 13" Hybrid Touch Multi-Function Display Product Description
Revolutionary Hybrid Control Navigation for Professional Mariners
The Furuno TZT13X represents the pinnacle of marine navigation technology, combining the intuitive multi-touch capabilities of NavNet TZtouchXL with traditional RotoKey™ control and dedicated buttons for reliable operation in any sea conditions. This professional-grade 13.3-inch display delivers exceptional performance for both recreational and commercial marine applications.
Key Advantages
-
Hybrid Control Design: Best of both worlds with multi-touch screen and physical controls
-
Built-in High-Power Sonar: Integrated 1kW dual-channel TruEcho CHIRP™ fishfinder eliminates external black box requirements
-
AI-Powered Navigation: Advanced route planning with AI routing and risk visualization technology
-
Professional Display Quality: Full HD 1920x1080 IPS LCD with 900 cd/m² brightness for excellent visibility
-
Comprehensive Connectivity: NMEA 2000, NMEA 0183, Ethernet, and wireless LAN integration
Built-in TruEcho CHIRP™ Sonar Technology
The TZT13X features an integrated 1kW dual-channel TruEcho CHIRP™ fishfinder capable of operating across frequencies from 40kHz to 240kHz. This powerful sonar system provides exceptional bottom detail and fish target separation for serious anglers and commercial fishermen.
Advanced Sonar Capabilities
-
CHIRP Side-Scan: Built-in 235kHz or 455kHz CHIRP side-scan reveals structure and fish targets port and starboard
-
TruEcho Technology: Superior target separation and bottom definition across all frequency ranges
-
Expandable Power: Compatible with 2kW/3kW DFF3-UHD for deeper water applications
-
High-Power Options: BT-5 Booster Box enables 5kW or 10kW output for maximum depth penetration
-
ACCU-FISH™ Mode: Advanced fish detection and sizing algorithms
TZ MAPS: Next-Generation Chart Technology
Experience unprecedented chart detail with TZ MAPS, featuring customizable content downloads including raster charts, vector navigation data, satellite imagery, and high-resolution bathymetric information. Purchase and update charts directly from the MFD with internet connectivity.
Revolutionary Mapping Features
-
BathyVision Technology: Ultra-detailed bathymetric data with 3-inch contour resolution
-
AI Routing: Intelligent route planning considering vessel draft and navigational hazards
-
Custom User Objects: Share waypoints, routes, and annotations with other TZ MAPS users
-
Multi-Chart Support: TZ MAPS, MM3 Vector, and CMOR compatibility
-
Satellite Overlay: High-resolution satellite imagery for enhanced situational awareness
Advanced Safety & Collision Avoidance
When connected to compatible NXT radar systems, the TZT13X unlocks powerful safety technologies including Risk Visualizer and AI Avoidance Route functions for enhanced vessel safety and collision prevention.
Intelligent Safety Systems
-
Risk Visualizer: 360° visual representation of collision risks from approaching targets
-
AI Avoidance Route: Automatic route generation around detected hazards
-
AutoPilot Integration: Seamless connection with Furuno NavPilot systems
-
ARPA Target Tracking: Track up to 100 targets with automatic acquisition
-
Guard Zone Alarms: Customizable proximity alerts for enhanced situational awareness
Complete Technical Specifications
Display System
| Screen Type: |
Color TFT Multi-touch IPS LCD |
| Screen Size: |
13.3" Wide |
| Resolution: |
Full HD 1920 x 1080 |
| Brightness: |
900 cd/m² (typical) |
| Display Colors: |
16.7M colors (Chart), 64 colors (Radar/Fish Finder) |
| Viewing Technology: |
IPS wide-angle viewing |
Integrated Sonar System
| Transmit Power: |
1kW dual-channel |
| CHIRP Frequency: |
40-240 kHz (Low/Medium/High) |
| CW Frequency: |
50/200 kHz |
| Side-Scan CHIRP: |
235kHz or 455kHz |
| Display Range: |
2-1200m depth |
| Side-Scan Range: |
750 feet each side |
GPS/WAAS Receiver
| GPS Channels: |
72 channels |
| SBAS Channels: |
1 channel (WAAS) |
| Update Rate: |
10 Hz (100ms interval) |
| Accuracy: |
3m (WAAS), 7m (MSAS), 10m (GPS) |
| Cold Start: |
100 seconds typical |
Interface & Connectivity
| NMEA 2000: |
1 Port (full PGN support) |
| NMEA 0183: |
1 Serial output port |
| Ethernet: |
1 Port (1000 BASE-T) |
| USB: |
1 Port (USB 3.0) |
| Wireless LAN: |
IEEE 802.11b/g/n |
| Video Input: |
1 Port (NTSC/PAL) |
Environmental & Power
| Power Supply: |
12-24 VDC |
| Operating Temp: |
-15°C to +55°C |
| Humidity: |
93% or less at +40°C |
| Waterproof Rating: |
IP56 |
| Vibration: |
IEC 60945 compliant |
Memory & Data Management
-
User Points: 30,000 waypoints with detailed information
-
Track Points: 100,000 points for comprehensive track logging
-
Route Planning: 200 routes with 500 points per route
-
Page Builder: 10 customizable screen configurations
-
Screen Split: Up to 6-way screen division capability
-
MicroSD Support: MicroSDXC card slot for data backup and chart storage
Professional Fishing Capabilities
The TZT13X incorporates Furuno's exclusive fishing enhancement features designed to maximize catch success while minimizing fuel consumption and search time.
Installation & System Integration
The TZT13X integrates seamlessly into existing NavNet TZtouchXL networks and supports connection with a wide range of Furuno sensors, radars, and autopilot systems for comprehensive vessel integration.
System Compatibility
-
Radar Integration: Compatible with DRS4W, DRS6A, NXT series radars
-
Autopilot Support: NavPilot 300, 511C, 711C integration
-
Sounder Modules: DFF1-UHD, DFF3-UHD, DFF3D network compatibility
-
Weather Integration: SiriusXM Marine Weather receiver support
-
AIS Integration: Built-in AIS target display and tracking
-
Engine Monitoring: NMEA 2000 engine data display capabilities
Professional Support & Warranty
Backed by Furuno's industry-leading technical support and comprehensive warranty coverage. Professional installation recommended for optimal performance and warranty compliance.
-
Technical Support: Furuno USA authorized service network
-
Software Updates: Regular firmware updates via network connectivity
-
Training Resources: Comprehensive operation manuals and video tutorials
-
Multi-Language Support: 18 language interface options
-
Professional Installation: Certified installer network available
Frequently Asked Questions
What makes the hybrid control different from standard touchscreen displays?
The hybrid control system combines multi-touch screen capabilities with Furuno's RotoKey™ control knob and dedicated buttons, allowing reliable operation in rough sea conditions where touchscreen-only interfaces may be difficult to use. This provides both modern convenience and traditional reliability.
Can the built-in sonar power be upgraded beyond 1kW?
Yes, the TZT13X can be connected to external DFF3-UHD units for 2kW or 3kW output, or paired with the BT-5 Booster Box to achieve 5kW or 10kW transmission power for maximum depth penetration and target definition in deep water applications.
What chart types are compatible with the TZT13X?
The TZT13X supports TZ MAPS (with downloadable content), MM3 Vector charts, and CMOR charts (US only). TZ MAPS offers the most advanced features including BathyVision bathymetric data, AI routing, and direct chart purchase/update capabilities.
Is professional installation required for the TZT13X?
While not strictly required, professional installation by a certified Furuno dealer is recommended to ensure proper NMEA 2000 network integration, transducer connections, and optimal performance. Professional installation also ensures warranty compliance and access to technical support.
What transducers are compatible with the built-in CHIRP side-scan?
For 235kHz side-scan: 225T-PR904, 225T-SS904, 225T-TM904. For 455kHz side-scan: 455T-PR903, 455T-SS903, 455T-TM903. These transducers connect directly to the dedicated 12-pin side-scan port on the TZT13X.
Can multiple TZT13X units be networked together?
Yes, multiple TZT13X units can be networked via Ethernet for shared charts, waypoints, routes, and sensor data. They integrate seamlessly with other NavNet TZtouchXL displays including the TZT16X, TZT22X, and TZT24X models.

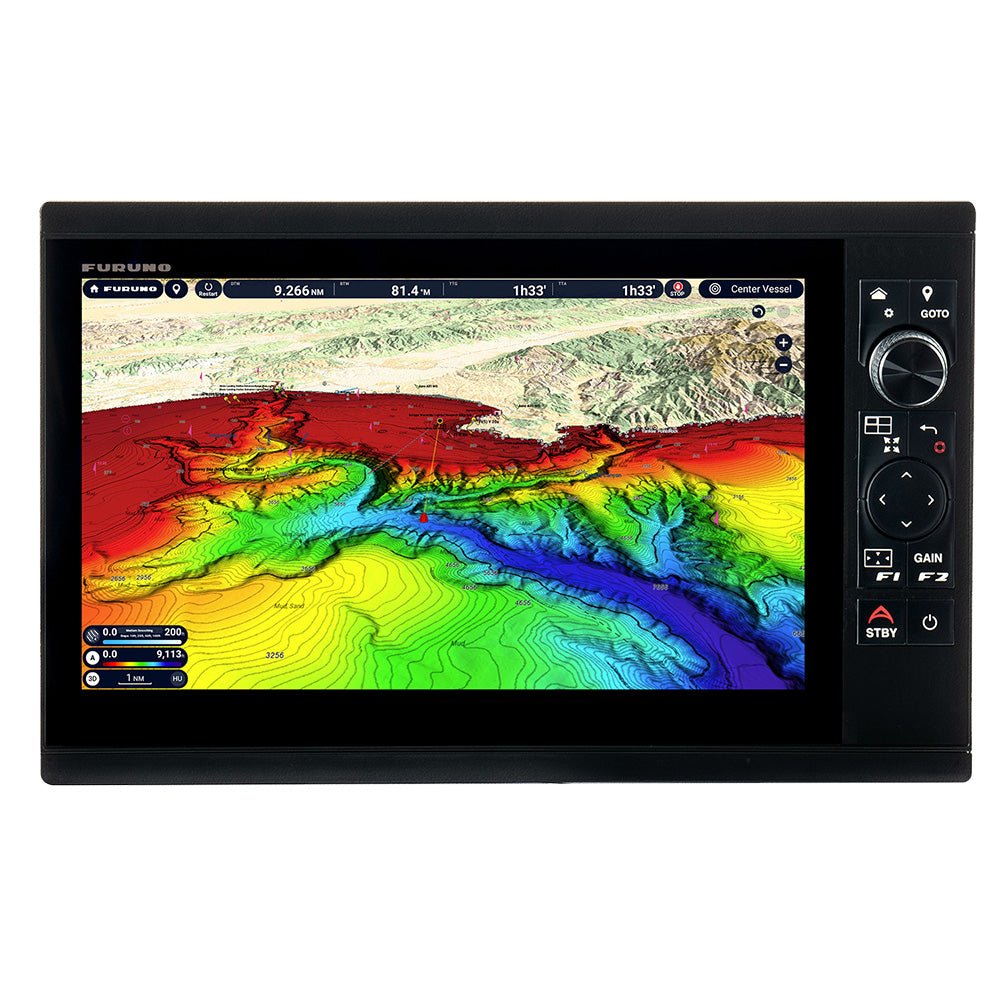

TZT13X 13" Hybrid Touch Multi-Function Display
The hybrid control 13” TZT13X incorporates all of NavNet TZtouchXL's multi-touch capabilities with Furuno’s RotoKey™ control knob and dedicated buttons, making navigation intuitive and easy under any sea conditions.
The TZT13X incorporates a powerful internal 1kW dual channel TruEcho CHIRP™ Fish Finder* designed to operate across a wide range of frequencies. For those who want to go even deeper, the 2kW/3kW DFF3-UHD TruEcho CHIRP™ Network Fish Finder delivers the ability to penetrate the deepest waters to find a catch. Also, with the BT-5 Booster Box, users can boost that output power up to 5 or 10 kW to take advantage of high-power transducer options that will unveil the deepest waters like users never experienced before.
Features:
- 13 in. display with hybrid controls
- TZ MAPS for highly detailed navigation and fishing charts
- Purchase and update charts directly from MFD with an internet connection
- Powerful hexacore processor for rapid response
- Video converter kits stream compatible sonar video data directly to TZtouchXL MFD
- Furuno’s exclusive Fish-It, Drift-It, & Follow-It features save time and fuel and increase fish catch
- Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder
- Built-in 235kHz or 455kHz CHIRP Side-Scan
Built-In CHIRP Side-Scan
Furuno’s CHIRP Side-Scan for NavNet TZT13X scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan 6 reveals the shape of fish targets and fish-hoarding structure on each side of the vessel. CHIRP from 235kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.
TZ MAPS
One of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!
BathyVision
One of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!
AI Routing
TZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.
Risk Visualizer & AI Avoidance Route
When connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.
Enhanced User Interface for Ease of Use & Customizability
In addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.
Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD.
Specifications:
Display Unit:
- Type: Color TFT multi-touch IPS LCD
- Screen Size: 13.3" Wide
- Screen Resolution: FHD 1920 x 1080
- Screen Brightness: 900 cd/m2 (typical)
- Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
- Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish
GPS/WAAS:
- Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
- Receiving Frequency: L1 (1575.42 MHz)
- Time to First Fix: 100 s (cold start)
- Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
- Position Update Interval: 100 ms or 10 Hz
Chartplotter:
- Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only)
- Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route)
- Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required)
Radar:
- Display Modes: Head-up, North-up* *Heading input required.
- Echo Trails: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins, and continuous (Heading input required)
- Target Tracking: 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required)
- Radar Alarms: Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line
Fishfinder:
- Transmit Frequency*: CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High)
- Transducer: 300/600 W or 1 kW* *Matching box MB1100 required for some transducers
- Display Range: 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft)
- Extension Mode: ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer)
- Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
- Fish Finder Alarms: Fish School, Fish School for the bottom lock
Side-Scan:
- Transmit Frequency*: CHIRP: 220-240KHz/445-465KHz
- Transducer: 225kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903
- Display Range: 750 feet to each side
- Display Colors: Green, Blue, Amber, White
- Display Screen Sizes: Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen
- Direct Connect to MFD: Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X
Interface:
- NMEA200: 1 Port
- Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880
- Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316
- NMEA0183: 1 Serial Output Port
- Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
- LAN: 1 Port (1000 BASE-T)
- USB: 1 Port (USB 3.0) for control unit
- Video I/O: Input: 1 port (NTSC/PAL)
- AUX I/O: 2 Ports (Event Switch and External Power Switch)
- SD Card Slot: 1 Slot (Micro SDXC, rear)
- Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
- Transducer Connection: 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan
Environment:
- Temperature (IEC60945)-15°C to +55° C
- Relative Humidity: 93% or less at +40° C
- Waterproofing: IP56
Power:
