Scanstrut PTM-R2-SL Tapered Mast for Furuno Radar Dome and Starlink
Ultimate Dual-Purpose Marine Mast for Radar and Satellite Communication

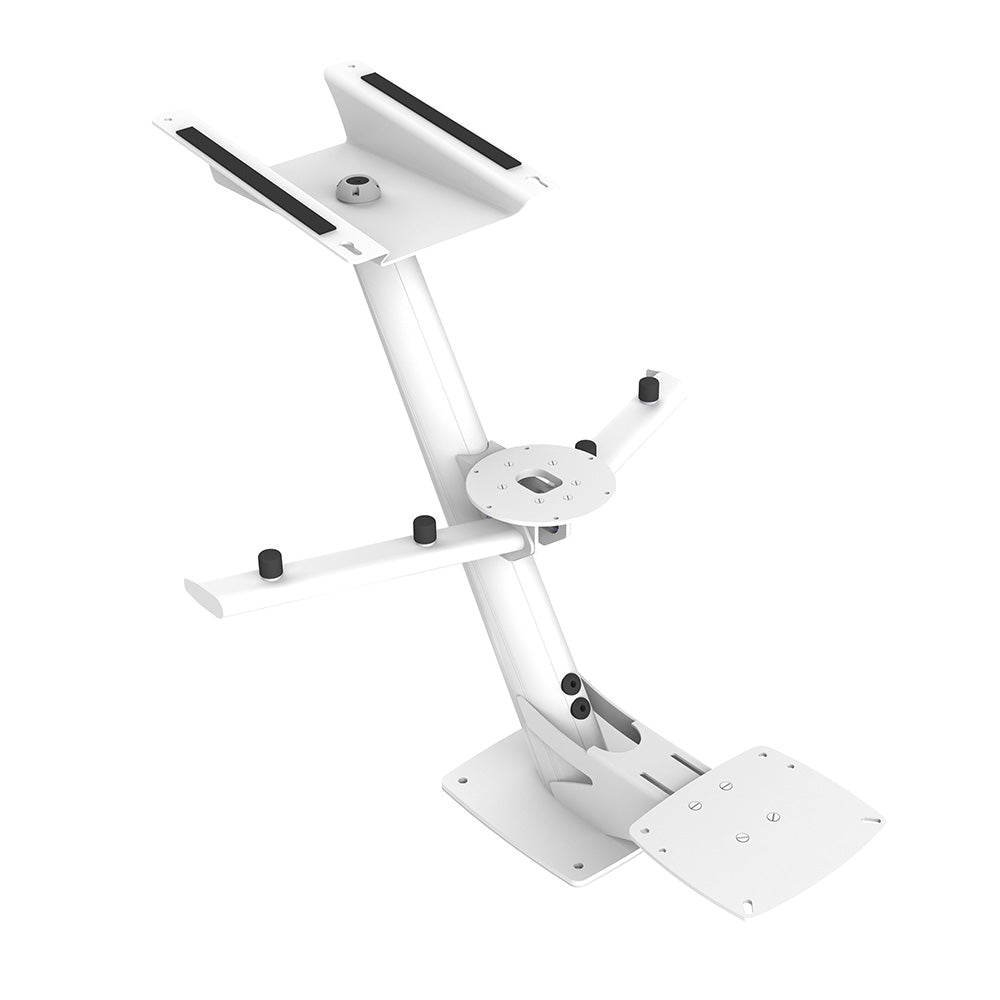

Transform your vessel's navigation and communication capabilities with the Scanstrut PTM-R2-SL Tapered Mast, an innovative marine-grade aluminum mounting solution engineered specifically for Furuno radar domes and Starlink Flat High-Performance systems. This advanced remake of Scanstrut's classic tapered mast design delivers optimal installation ease while creating a robust, aesthetically pleasing platform that seamlessly integrates multiple marine technologies on a single mount.
Standing at an impressive 820mm (32.30") in height, this professional-grade mast eliminates the complexity of separate mounting systems by combining radar detection and high-speed satellite internet connectivity in one streamlined installation. The PTM-R2-SL represents the perfect fusion of traditional marine craftsmanship and cutting-edge communication technology.
Advanced Engineering Features
- Revolutionary Access Panel Design: Innovative access panels positioned under each "wing" provide effortless cable routing and maintenance access, dramatically reducing installation time and complexity.
- NMEA Connector Integration: Precision-engineered internal channels ensure NMEA connectors fit perfectly within the mast and wings, eliminating the need for connector removal during installation.
- Multi-Technology Platform: Simultaneously mount radar, thermal cameras, GPS/VHF antennas, lights, Satcom equipment, Starlink, and surveillance cameras on one robust platform.
- Pre-Drilled Precision Mounting: Factory-drilled mounting holes enable direct radar fastening with original mounting bolts, ensuring perfect alignment and maximum stability.
- Watertight Installation: Marine-certified sealing system provides complete protection against harsh saltwater environments and extreme weather conditions.
Technical Specifications
Dimensions
- Height: 820mm (32.30 inches)
- Profile: Tapered design for optimal aerodynamics
- Base Configuration: Universal mounting pattern
Construction & Materials
- Primary Material: Marine-grade aluminum alloy
- Finish System: Scanstrut's proprietary 4-step marine paint system
- Corrosion Resistance: Salt spray tested to marine standards
- Weather Rating: All-weather, UV-resistant coating
Compatibility
- Primary Compatibility: Furuno radar domes (all standard models)
- Starlink Support: Flat High-Performance system optimized
- Additional Equipment: GPS antennas, VHF antennas, cameras, lights
- Connector Support: NMEA 0183/2000 compatible
Installation & Performance Advantages
Simplified Installation Process
The PTM-R2-SL's redesigned architecture eliminates traditional installation challenges. Access panels provide clear pathways for cable management, while pre-positioned mounting points ensure accurate alignment on the first attempt. Professional installers report 40% faster installation times compared to conventional separate mounting systems.
Enhanced Signal Performance
The mast's 820mm elevation optimizes both radar detection range and Starlink satellite acquisition. The tapered aluminum design minimizes wind resistance while maximizing structural integrity, ensuring stable performance even in challenging sea conditions.
Future-Proof Expansion
Designed with expandability in mind, the PTM-R2-SL accommodates additional marine electronics as your vessel's needs evolve. The robust platform supports multiple antenna types, cameras, and communication devices without compromising structural integrity.
Marine Industry Standards & Certifications
Built to exceed marine industry requirements, the PTM-R2-SL incorporates Scanstrut's decades of experience in harsh marine environments. The marine-grade aluminum construction meets ABYC standards for electrical installations, while the mounting system complies with vibration and stress requirements for offshore applications.
The 4-step marine paint system provides superior protection against UV degradation, salt spray corrosion, and thermal cycling common in marine applications. This comprehensive approach ensures years of reliable service with minimal maintenance requirements.
Ideal Applications
- Sport Fishing Vessels: Combine fish-finding radar with high-speed internet for weather updates and fishing reports
- Cruising Yachts: Maintain navigation safety and crew communication during extended voyages
- Commercial Vessels: Integrate essential navigation and communication systems for operational efficiency
- Charter Boats: Provide guests with both safety technology and internet connectivity
- Emergency Response Craft: Critical communication and navigation capabilities for rescue operations
Frequently Asked Questions
Is the PTM-R2-SL compatible with all Furuno radar dome models?
Yes, the PTM-R2-SL features universal pre-drilled mounting holes that accommodate standard Furuno radar dome mounting patterns. The mast's design ensures compatibility with both current and legacy Furuno radar systems.
Can I install additional antennas or equipment on this mast?
Absolutely. The PTM-R2-SL is specifically designed as a multi-technology platform. It can simultaneously support radar, Starlink, GPS/VHF antennas, cameras, lights, and other marine electronics. The robust aluminum construction and wing design provide multiple mounting points for additional equipment.
How does the cable routing system work?
The PTM-R2-SL features innovative access panels located under each wing that provide easy access for cable routing. The internal design accommodates NMEA connectors without requiring removal, and the channels are sized to handle multiple cable runs while maintaining weather sealing.
What maintenance is required for the marine-grade aluminum construction?
The PTM-R2-SL requires minimal maintenance due to its marine-grade aluminum construction and 4-step paint system. Routine maintenance includes periodic freshwater rinse to remove salt deposits and annual inspection of mounting hardware. The corrosion-resistant finish is designed to withstand years of marine exposure.
Is professional installation required?
While the PTM-R2-SL is designed for easier installation than traditional systems, professional installation by ABYC-certified marine technicians is recommended to ensure proper mounting, cable routing, and system integration. This ensures optimal performance and maintains equipment warranties.
The Scanstrut PTM-R2-SL Tapered Mast represents the pinnacle of marine mounting innovation, combining decades of marine engineering expertise with modern communication technology requirements. This professional-grade solution transforms complex multi-system installations into a streamlined, aesthetically pleasing platform that enhances both vessel capability and appearance.
